Dell Compellent H2XFK / XRC7G 400GB 3.5" SAS WI Enterprise Plus SSD


DiscTech Item #: DEC-H2XFK-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 450

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

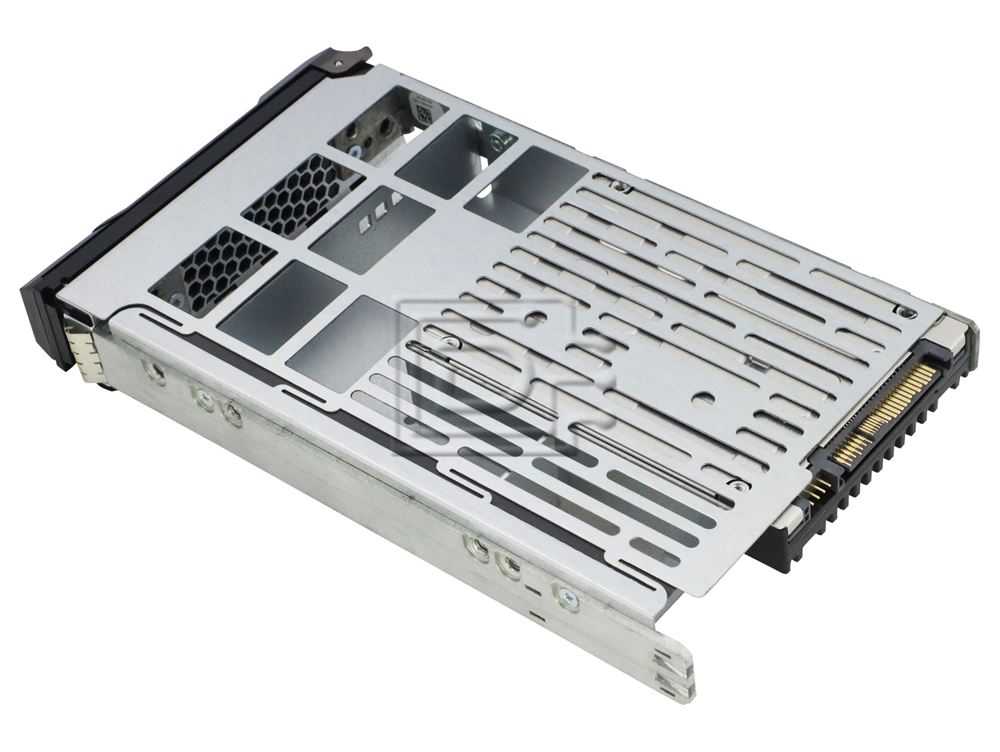

Dell Compellent H2XFK / XRC7G / 0XRC7G SanDisk LB406S / 6HS-400G-21 400GB 3.5" SLC 6Gbps WI Enterprise Plus SAS Solid State Drive w/ 72CWN tray and Y004G bracket  - Brand New OEM

Dell Compellent H2XFK / 0H2XFK / XRC7G / 0XRC7G SanDisk LB406S / 6HS-400G-21 400GB 3.5" LFF SLC 6Gbps WI / Write Intensive Enterprise Plus SAS SSD / Solid State Drive w/ 72CWN tray and Y004G bracket  - Brand New OEM

Lightning® Write-Intensive 6Gb/s SAS Enterprise Solid State Drives

IT Managers are consistently challenged with the demand for higher performance and increased storage capacity for today’s data centers. Over time, HDDs have suffered from a performance decline creating a performance vacuum that SSDs can fulfill by acting as storage network accelerators. Enterprise SSDs provide substantial performance and footprint benefits over traditional HDDs. This enables IT service providers to replace hundreds of HDDs with a single SSD, realizing significant cost savings, while creating a more efficient and reliable network.

Since not all data centers are created equal, the key to achieving increased data and system performance is in understanding the specific application workload. Lightning Write-Intensive 6Gb/s (SAS) SSDs offer solid cost-to-performance benefits optimized for data management and endurance of high-speed storage and server environments. Available in 200GB and 400GB capacities, Lightning Write-Intensive SSDs provide an I/O pattern designed around frequent writes for application workloads such as Data Warehousing, High Performance Computing (HPC), Media Editing, Analytics and Database Logging, with a heavy workload comprised of a 50/50 read/write mix.

SSD performance is dependent on the grade of NAND flash memory used, and sophistication of the controller and firmware. Lightning Write-Intensive SSDs are designed with an advanced innovative controller that uses a parallel processing architecture with single firmware binary to provide the industry’s leading sustained performance, low response times under peak conditions for predictable performance, and proven and tested endurance for superior reliability. Lightning SSDs have been designed to meet demanding, mission critical, 24/7 applications.

Lightning SSD Benefits

  • High Performance
  • Superior Reliability
  • Predictable Performance

Application Workloads

  • Data Warehousing
  • High Performance Computing
    • Oil and Gas
    • Life Sciences
    • Aerospace
    • Engineering
  • Media Editing
  • Analytics
  • Database Logging


This drive is compatible with any server or laptop that accepts 2.5"x7mm SATA drives. Designed for the following Compellent Servers:
PS6100, PS-M4110, SC200 , 4100E

Lightning Write-Intensive 6Gb/s SAS Enterprise SSDs
Model NumberH2XFK
Interface, Capacity, and Memory Technology
Host Interface6Gb/s SAS
Interface PortsDual (2) full-duplex
Form Factor2.5 inch SFF
User Capacities400GB
Sector Sizes Supported512, 520 or 528 bytes/sector
Unrecovered Bit Error Rate (UBER)<1 sector in 10^17 bits read
End-to-End Data ProtectionNo performance impact
Patrol Read (automatic)No performance impact
Power-on Hours8760 hours per year
MTBF2 million hours
Physical Dimensions
Height (max)15.0 mm
Width (max)70.1 mm
Length (max)100.45 mm
Weight0.238 Kg
Power Consumption
Idle3.9 watts
Typical5.9 watts
Operating Temperature (ambient)0 to 60° C
Non-operating Temperature-40 to 85° C
Start-up time (Power-On to Ready)<15 seconds

ROHS Compliant

Alternate MPNs: 0H2XFK XRC7G 0XRC7G LB406S 6HS-400G-21

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
