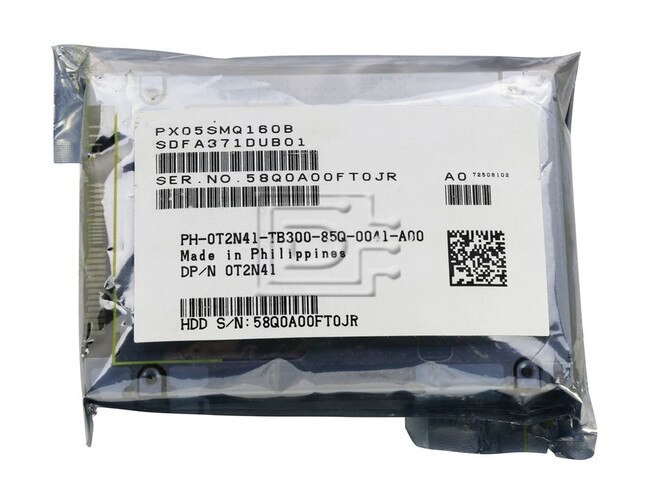

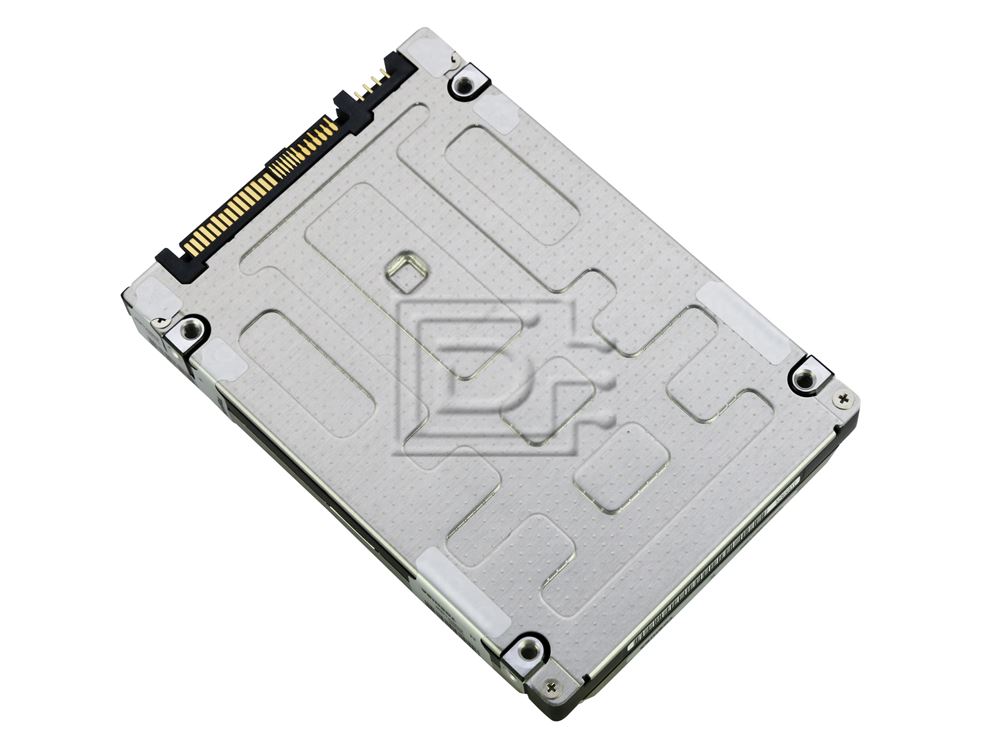

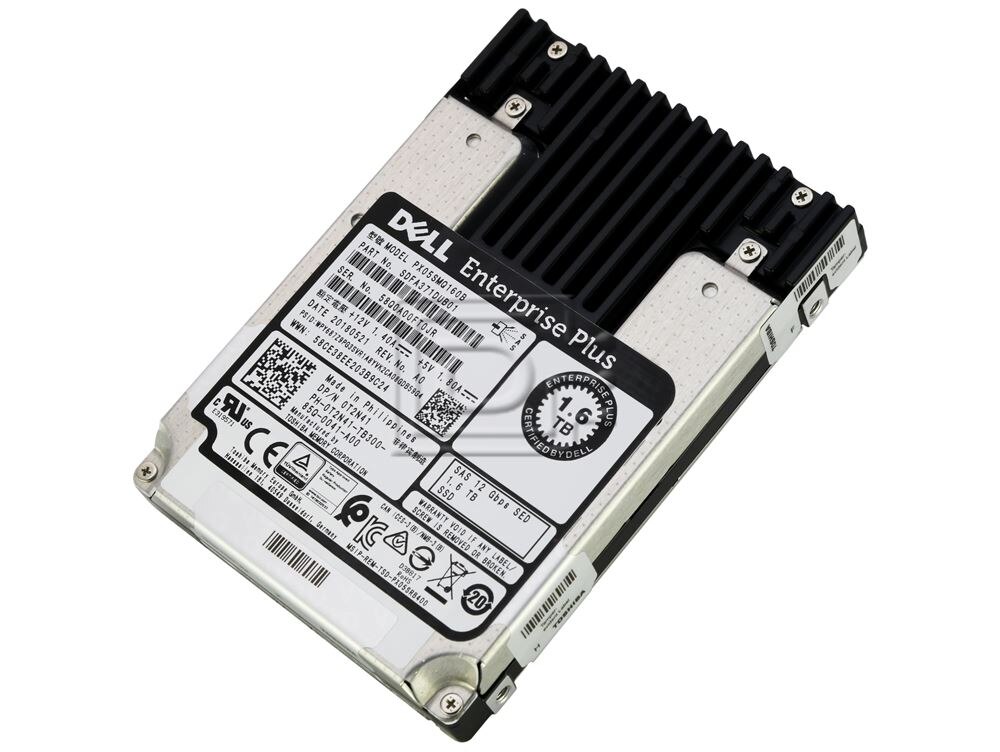

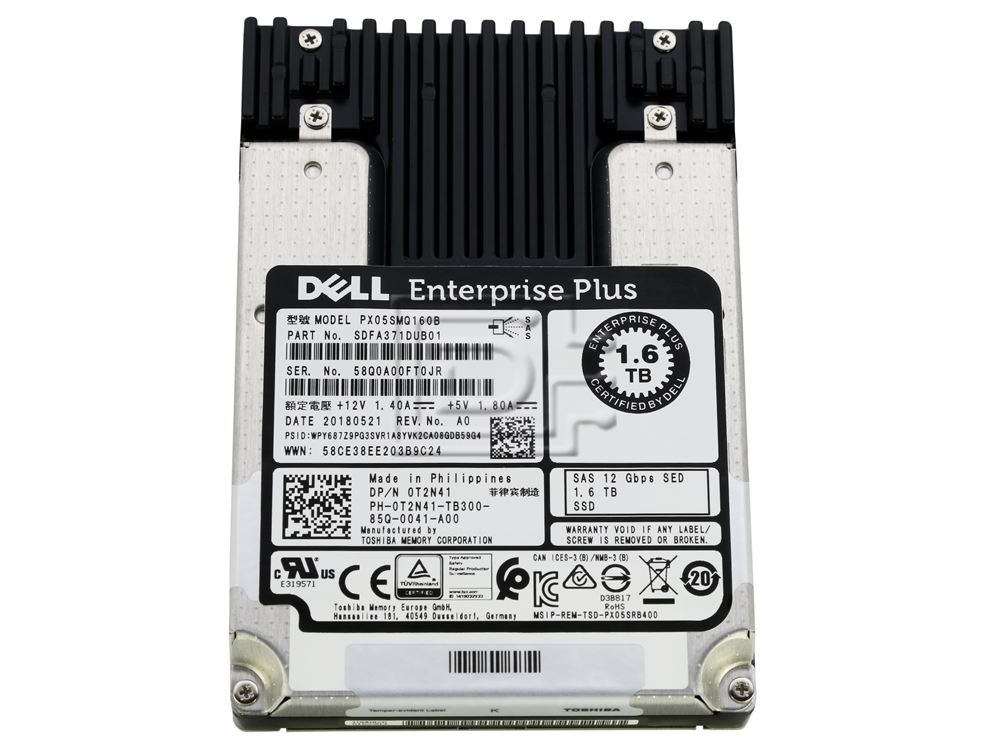

Dell Compellent T2N41 / PX05SMQ160B / SDFA381DUB01 1.6TB SAS WI SSD SED

Toshiba Part #/MPN: PX05SMQ160B

DiscTech Item #: TOS-PX05SMQ160B-BN-OE-DEC

$2,200.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:3Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$2,200.00

Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1900/850

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610, Dell Compellent SCv2080 SC280 SC180, Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

Dell Compellent T2N41 Toshiba PX05SMQ160B SDFA381DUB01 1.6TB 2.5in SFF 12Gbps SAS WI SED Solid State Drive - Brand New OEM

Dell Compellent / Toshiba PX05SMB160Y SDFA381DUB01 1.6TB 2.5in SFF 12Gbps SAS Write Intensive SED Solid State Drive

DP/N: T2N41 0T2N41

Enterprise 10 DWPD Write Intensive SSD

The PX05SMB Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. These Series is optimized for web server, SQL server and read- intensive storage applications, requiring a balance of reliability, capacity and endurance. With 270k IOPS random read performance, these SSD models deliver sustained, low latency performance to maximize performance.

Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Mixed Use PX05SMB supports 10 DWPD (Drive Writes Per Day) and is designed to deliver high-levels of performance, quality and reliability for read-intensive and mixed-use applications such as media streaming, data warehousing and web servers.

Key Features

  • Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270K IOPS random read (4K) performance
  • 2.5-type Form-Factor, 15mm Z-Height
  • 10 DWPD with 100% Random Write Workload
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Sanitize Instant Erase (SIE)* Option

Key Applications

  • Media Streaming
  • Data Warehousing
  • Web Servers
DPN: T2N41 0T2N41
Alt Pt#: PX05SMB160Y SDFA381DUB01

* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.

* SED drive is conformed to TCG enterprise SSC.

* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.

Compatibility:

This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives.

Toshiba Enterprise Mixed Use SSD
Model NumberPX05SMQ160B / WI
Capacity1.6tb
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Sustained 64KiB Sequential Read1,900 MiB/s
Sustained 64KiB Sequential Write850 MiB/s
Sustained 4KiB Random Read270,000 IOPS
Sustained 4KiB Random Write00,000 IOPS
MTTF2,000,000 hours
DWPD10
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Ready)3.2 W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max.
Temperature ( Operating )0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration ( Operating )21.27 m/s { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )9,800 m/s { 1,000 G } ( 0.5 ms duration )
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SDFA381DUB01 SDFA381DGB01 T2N41 0T2N41

Weight: 0.5 lb

Warranty: 1 Year DiscTech
