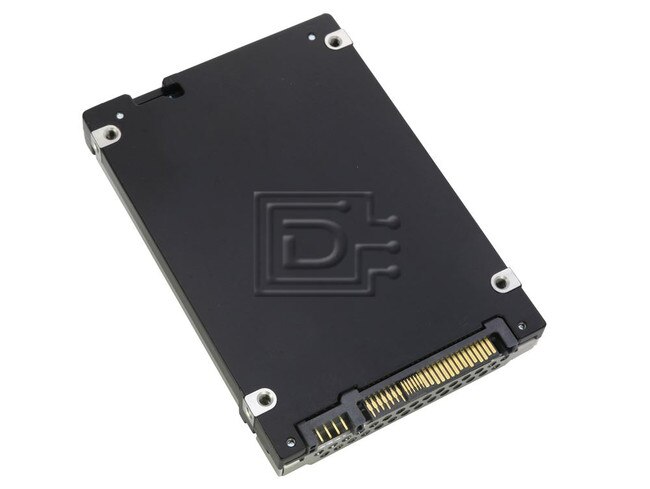

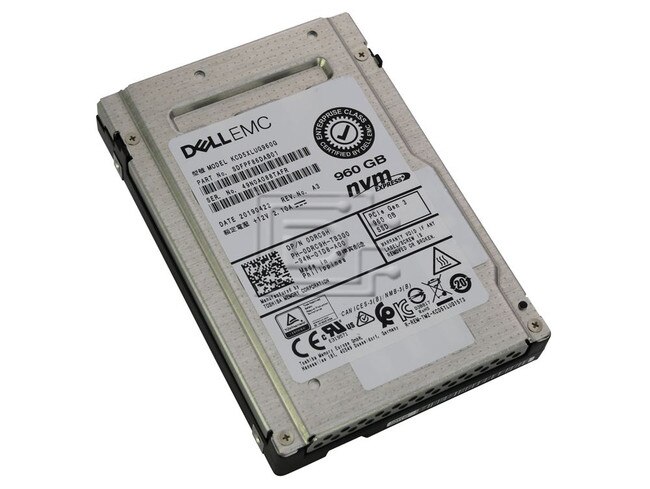

Dell EMC DRC9H / Toshiba Kioxia KCD5XLUG960G 960GB 2.5" PCIe NVMe 3.0 SSD

Dell Part #/MPN: KCD5XLUG960G

DiscTech Item #: TOS-KCD5XLUG960G-NP-OE-DEL

$299.00
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$299.00

Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Dell EMC DRC9H / Toshiba Kioxia KCD5XLUG960G D5 Series 960GB 2.5" TLC SFF U.2 PCIe U.2 3.0 SSD - New Pull OEM

Dell EMC DRC9H / Toshiba Kioxia KCD5XLUG960G D5 Series 960GB 2.5" TLC SFF U.2 PCIe NVMe 3.0 SSD - New Pull OEM

Toshiba Model Number: KCD5XLUG960G
Alt. Dell Part Number: DRC9H, 0DRC9H

CD5 SERIES - DATA CENTER NVMe™ SSD

MAIN SPECIFICATIONS

The CD5 Series is a read-intensive data center NVMe™ SSD that is optimized to support broad range of scale-out and cloud applications that include Big Data/IoT, Online Transaction Processing, and Virtualization. CD5 SSDs, with a PCIeⓇ Gen3x4 lane interface, deliver consistent performance up to 550K IOPS (random read) and 50K IOPS (random write), with active power consumption of 11-13W.

Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CD5 SSDs deliver <1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 7.68TB in a 2.5 inch form factor, making them suited for hyperscale data center applications.

KEY FEATURES

  • PCIeⓇ Gen3 x4 lane interface with single port support
  • NVMeTM Rev. 1.3a compliant
  • Capacities from 960GB to 7.68TB
  • Up to 550K random read IOPS (single port (1x4) mode)
  • Low power consumption of 11-13W active power
  • 2.5 inch small form factor, 15mm Z-Height
  • Power loss protection
  • End-to-end data protection
  • Sanitize Instant Erase (SIE) option *Note 1,4
  • Self-encrypting drive (SED) option *Note 2,4
  • Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4
  • 5-year limited warranty

APPLICATIONS

  • Hyperscale
  • IoT and Big data analytics
  • Online transaction processing (OLTP) (transactional and relational databases)
  • Virtualized environments
  • Streaming media (Content delivery networks(CDN))

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) NVMe PCIe drives.

Toshiba Model NumberKCD5XLUG960G
Dell Part NumberDRC9H
0DRC9H
Capacity960GB
InterfacePCIe U.2 NVMe 3.0 x4
Product Specification
Sequential Read3140 MB/s
Sequential Write880 MB/s
Random Read (100% Span)305000 IOPS
Random Write (100% Span)20000 IOPS
Latency - Read
Latency - Write
Power - Active
Power - Idle
Vibration - Operating
Vibration - Non-Operating
Shock (Operating and Non-Operating)
Operating Temperature Range
Weight (g/lb)115/
Endurance Rating (Lifetime Writes)
Mean Time Between Failures (MTBF)
Uncorrectable Bit Error Rate (UBER)
Form Factor
Lithography
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: DRC9H 0DRC9H

Weight: 1 lb
