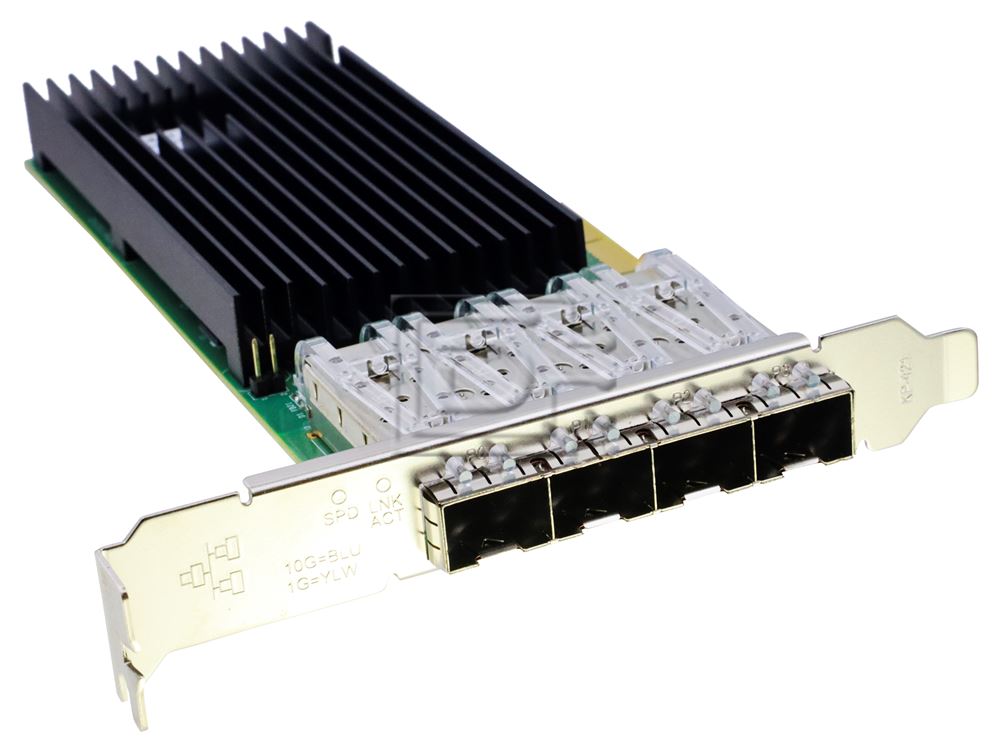

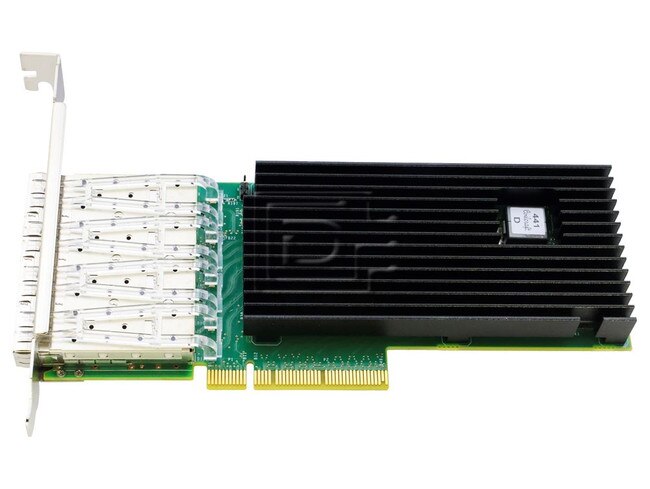

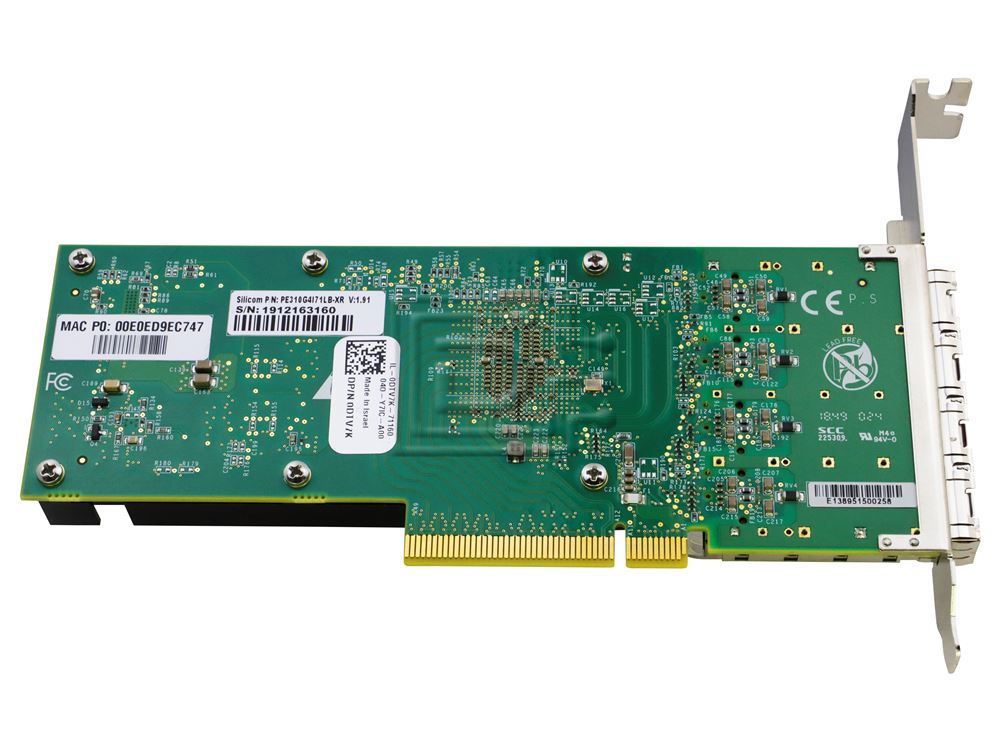

Dell DTV7K / Silicom PE310F4I71LB-XR Quad Port 10GB FC Fiber Channel Network Card / Server Adapter

Silicom Part #/MPN: DTV7K

DiscTech Item #: DEL-DTV7K-NP-OE


$189.99
$189.99

Interface Types: Ethernet RJ45, PCIe

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Dell DTV7K / Silicom PE310F4I71LB-XR Quad Port 10GB FC Fiber Channel, Full Height Network Card / Server Adapter - New Pull

Dell DTV7K / Silicom PE310F4I71LB-XR Quad Port 10GB FC Fiber Channel, Full Height Network Card / Server Adapter - New Pull

Dell / Silicom Quad Port 10GB Ethernet PCI Express Fiber Channel Server Adapter
Model Number PE310F4I71LB-XR
Dell Part Number / DP/N: DTV7K
Operating Systems Support
General Technical Specifications
LEDs
IEEE Standard / Network topology
  • Gigabit Ethernet, 1000Base-T
  • Fast Ethernet, 100Base-TX
  • Ethernet, 10Base-T
Full duplex / SimplexSupport both Simplex & Full duplex operation in all operating speeds
Auto negotiation
  • Auto-negotiation between Full duplex and simplex operations and between 10Mb/s
  • 100Mb/s speeds and duplex 1000Mb/s
Cables and Operating distance
  • 10Base-T Category 3, 4, or 5 maximum 100m
  • 100Base-Tx Category 5 maximum 100m
  • 1000Base-T Category 5E maximum 100m
Operating system support
  • Windows
  • Linux
  • FreeBSD
  • VMware450 MB/s
Interface StandardPCI-Express Base Specification Revision 1.1
Board SizeLow profile short add-in card: 167.64mm X 68.91mm (6.60”X 2.713”)
PCI Express Card TypeX8 Lane
PCI Express Voltage
  • +3.3V +-9%
  • +12V +- 8%
PCI ConnectorGold Finger: X8
ControllerIntel 82576EB
Weight100 gr (3.527 oz)
Power Consumption
  • 9.399W, 0.39A at 12V and 1.43A at 3.3V:
    Typical all ports operate at 1000Mbit/s.
  • 6.645W, 0.32A at 12V and 0.85A at 3.3V:
    Typical all ports operate at 100Mbit/s.
  • 6.108W, 0.30A at 12V and 0.76A at 3.3V:
    Typical all ports operate at 10Mbit/s.
  • 5.766W, 0.31A at 12V and 0.62A at 3.3V:
    Typical No link at all ports
HolderMetal Bracket: Full Height/Low profile Height
Operating Humidity0%–90%, non-condensing
Operating Temperature0°C – 50°C (32°F – 122°F)
Storage-20°C–65°C (-4°F–149°F)
EMC Certifications
  • FCC Part 15, Subpart B Class B
    Conducted Emissions
    Radiated Emissions
  • CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003
    Conducted Emissions
    Radiated Emissions
  • CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
    Immunity for ITE Amendment A1: 2001
  • CE EN 61000-3-2 2000, Class A
    Harmonic Current Emissions
  • CE EN 61000 3-3 1995, Amendment A1: 2001
    Voltage Fluctuations and Flicker
  • CE IEC 6100-4-2: 1995
    ESD Air Discharge 8kV. Contact Discharge 4kV.
  • CE IEC 6100-4-3:1995
    Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
  • CE IEC 6100-4-4:1995
    EFT/B: Immunity to electrical fast transients 1kV Power
    Leads, 0.5Kv Signals Leads
  • CE IEC 6100-4-5:1995
    Immunity to conductive surges COM Mode; 2kV,
    Dif. Mode 1kV
  • CE IEC 6100-4-6:1996
    Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
    By 1kHz
  • CE IEC 6100-4-11:1994
    Voltage Dips and Short Interruptions
    V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
MTBF
  • 131 (Years)
    * According to Telcordia SR-332 Issue 1
  • Environmental condition – GB (Ground, Fixed, Controlled).
  • Ambient temperature – 25°C. Temperature rise of 15°C above the system ambient temperature was assumed for the cards components
LEDs

(2) LEDs per port

  • Link / Act Led:
    Turn on any Link speed , Blinks on Activity (green)
  • Speed (Bi-color) Led:
    1000Mbit/s: Turns on Yellow
    100Mbits/s: Turns on Green.
    10Mbit/s: Turns off
LEDs locationLEDs are integrated on RJ-45 connector
Connectors(4) Shielded RJ-45

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0DTV7K PE310F4I71LB-XR

Weight: 0.5 lb

Warranty: 1 Year DiscTech
