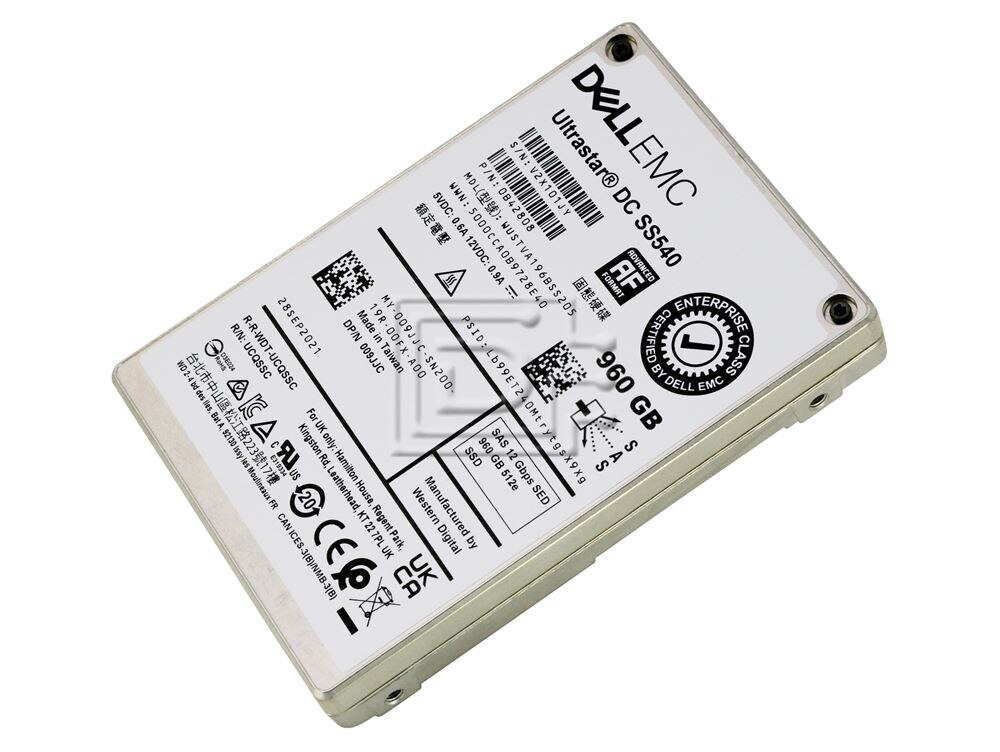

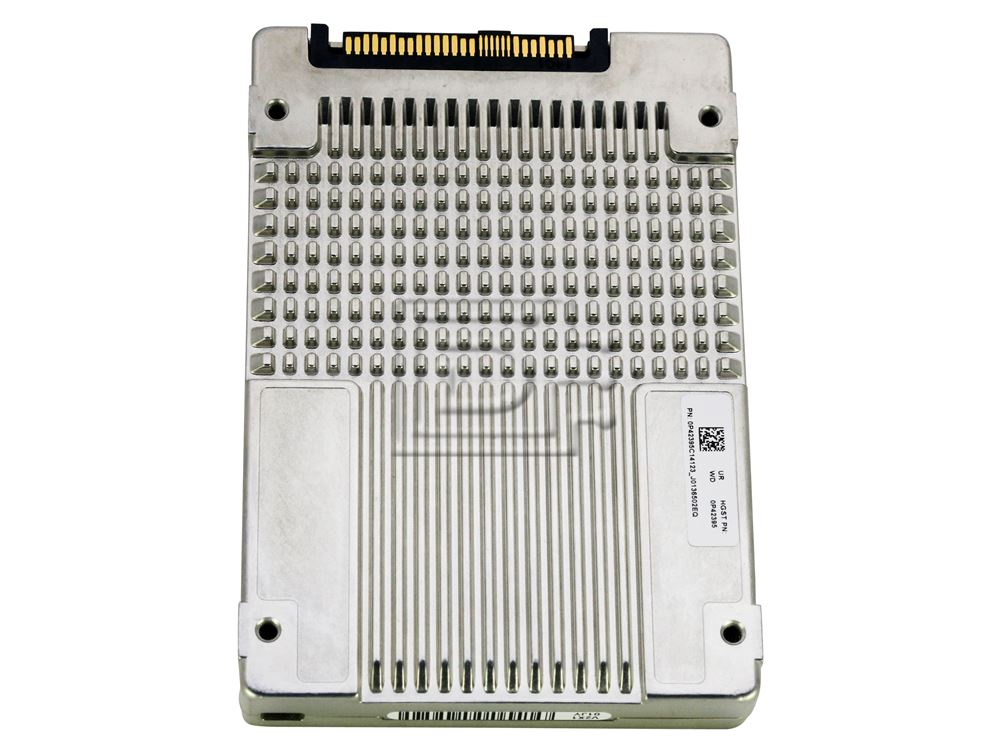

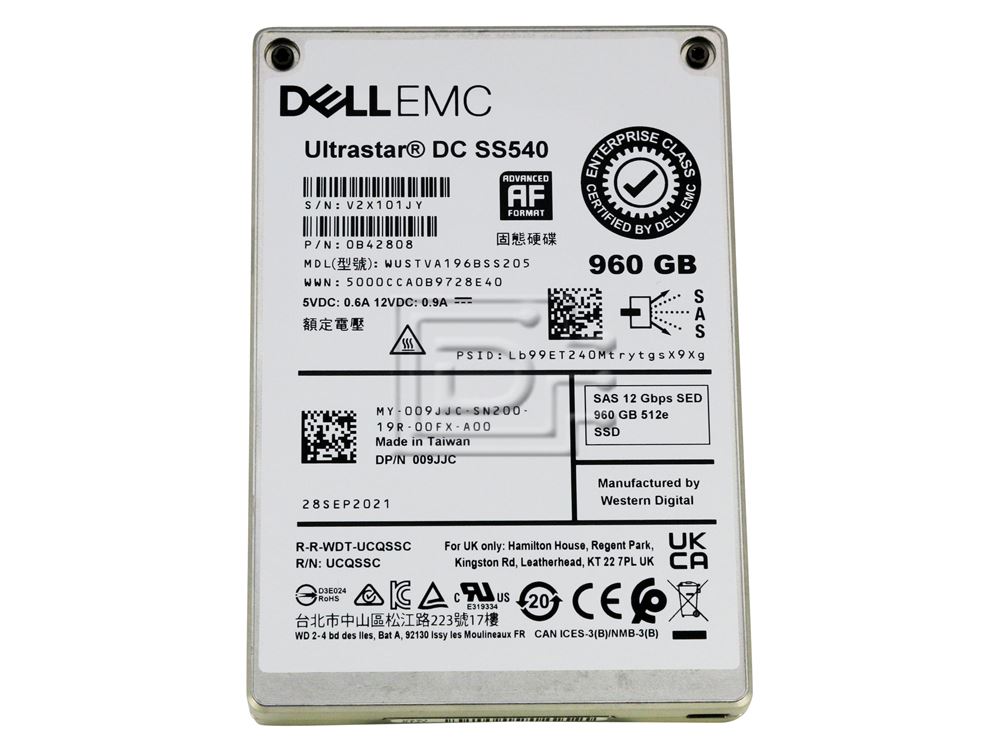

Dell EMC 09JJC / Western Digital Ultrastar DC SS540 WUSTVA196BSS205 960GB SED / TCG / FIPS SAS SSD2.5" 12Gbps

Western Digital Part #/MPN: WUSTVA196BSS205

DiscTech Item #: WDC-WUSTVA196BSS205-C9-OE-DEL


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1985/1024

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell EMC 09JJC / Western Digital Ultrastar DC SS540 WUSTVA196BSS205 / 0B42808 960GB SED / TCG / FIPS SAS SSD (Solid State Drive) 2.5" 12Gbps 512e Read Intensive - Certified 95

Dell EMC 09JJC / Western Digital Ultrastar DC SS540 WUSTVA196BSS205 / 0B42808 960GB 2.5" SFF 12Gbps 512e RI / Read Intensive SED TCG FIPS / Trusted Computing Group Encryption with FIPS SAS / Serial Attached SCSI Enterprise SSD / Solids State Drive - Certified 95

Maximize Storage and Server Scalability with SAS SSDs

Data is transforming the world and growing at an exponential pace. The SAS interface continues its dominance in traditional enterprise storage arrays, making the ever-increasing volume of data rapidly and reliably available. Storage solutions depend on SAS’s protection features, such as dual-port failover for redundancy, and SAS’s high reliability to power mission critical applications such as ERP, OLTP, OLAP, and more.
Ultrastar® DC SS540, Western Digital’s 6th generation of SAS SSD drive, delivers performance to data centers with 96-layer 3D NAND technology and a proven track record of reliability. Designed with a dual-port 12Gb/s SAS interface for seamless integration into data center
environments, the Ultrastar DC SS540 SAS SSD is available in capacities from 800GB to 15.36TB. Achieving exceptional performance by delivering up to 470K/240K Random Read/Random Write IOPS, the DC SS540 offers the best value for data centers by providing dual/single port support, desired features, power options, multiple endurance SKUs and mainstream capacities. It is ideal for ultra high-performance tier-0 enterprise storage, high performance computing (HPC), and software-defined storage (SDS).

Proven Architecture with Industry-Leading Quality and
Ultrastar DC SS540, with 96-layer 3D TLC NAND flash, leverages the proven architecture of the prior generations of SAS to achieve an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hours mean-time-between-failure (MTBF). DC SS540 offers two endurance options of 1 and 3 drive writes per day (DW/D) to meet the most stringent data center requirements. Help keep confidential data secure by deploying self-encrypting drive technology that supports Trusted Computing Group (TCG) Enterprise standards for security services and FIPS 140-2 validation for cryptographic-enabled drives that are required for certain government applications. The Ultrastar DC SS540 is backed by a five-year limited warranty or the maximum petabytes (PB) written (based on capacity), whichever comes first.
Trust Your Storage Systems with SSD Products Developed by Experts in Enterprise Storage
Ultrastar SAS SSDs leverage decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification, and system integration to provide end-to-end data protection storage for data centers. The synergistic relationship
between throughput-enhancing SSDs and traditional HDDs provides cost-effective option that delivers reliability, compatibility, capacity, cost savings, and system performance. Ultrastar SAS SSD drives are the ideal choice to help meet escalating reliability, endurance, and performance requirements in the most demanding data center environments.

DPN: 09JJC / 009JJC


This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Read Intensive SSD
Model NumberWUSTVA196BSS205
Basic Specifications
Max Terabytes Written (TBW)1880
InterfaceSAS 6 / 12Gb/s
Form Factor2.5-Inch 15mm SFF
Flash Memory Technology3D TLC NAND
Read Throughput (max MiB/s, Sequential 128KiB) 1,985
Write Throughput (max MiB/s, Sequential 128KiB)1,024
Read IOPS (max, Random 4KiB) 237,000
Write IOPS (max, Random 4KiB) 88,133
Mixed IOPS (70/30 R/W, max, 4KiB) 142,959
Read/Write Latency⁴ (μs, avg)140/90
Unrecoverable Bit Error Rate (UBER)1 in 10¹⁷
MTBF (M hours)2.5
Annualized Failure Rate⁵ (AFR)0.35%
Power Requirements
Requirement (+/- 5%)+5 VDC, +12VDC
Operating Modes (W, typical)9, 11, 14
Idle (W, max) (Projected)3.7W
Height15.0 mm +0 , -0.5 mm
Length100.45 mm
Weight175 g Max.
Temperature (Operating)0 to 70 °C
Non-operating Temperature-40°C to 80°C

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0B42808 09JJC 009JJC

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
