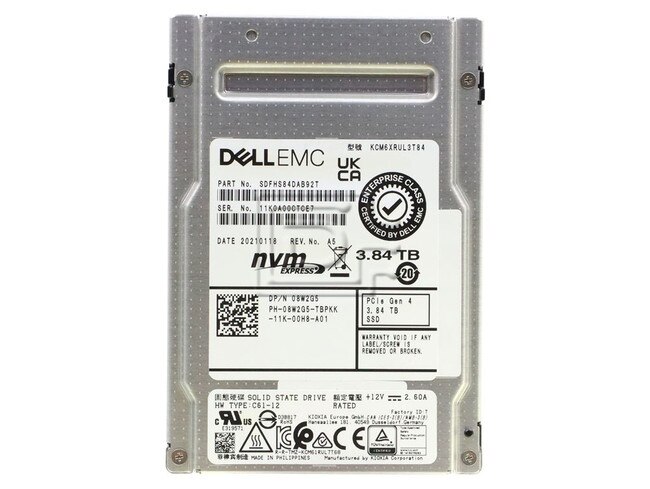

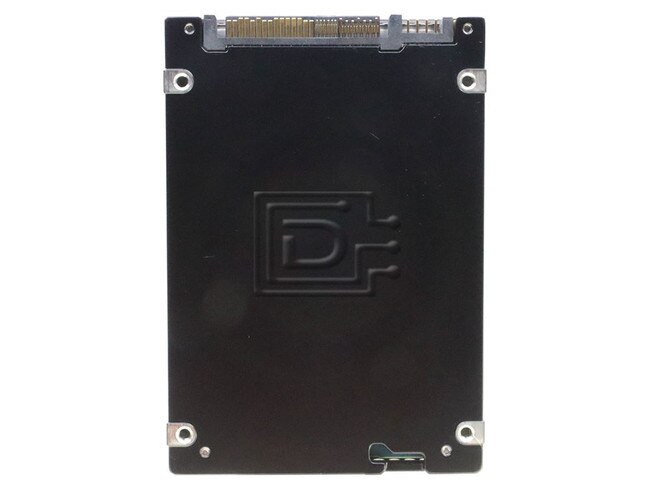

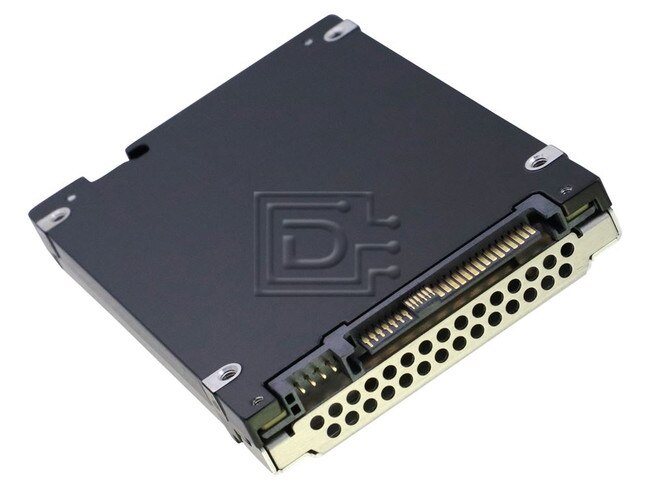

Dell EMC 8W2G5 / Kioxia KCM6XRUL3T84 3.84TB 2.5" SFF TLC PCIe 4.0 x4 Read Intensive U.3 NVMe SIE SSD

Toshiba KCM6XRUL3T84 8W2G5 08W2G5 SDFHS84DAB92T PCIe NVMe SSD Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:1
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$999.00

Capacity:3.84TB
Speed:Solid State
Interface Types:NVMe U.3
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:PCIe 4.0 32GBps
Click to see more 3.84TB NVMe U.3 Solid State Drives

Description

Dell EMC 8W2G5 / Kioxia KCM6XRUL3T84 3.84TB 2.5" SFF BICS FLASH TLC Read Intensive NVMe U.3 PCIe 4.0 x4 SIE SSD - Brand New

Dell EMC 8W2G5 / Kioxia KCM6XRUL3T84 3.84TB 2.5" SFF BICS FLASH TLC Read Intensive NVMe U.3 PCIe 4.0 x4 SIE SSD - Brand New

Toshiba Model Number: KCM6XRUL3T84

Alt. Dell Part Number: 8W2G5 / 08W2G5

KIOXIA CM6-R - Enterprise NVMe™ Read Intensive SSD

KIOXIA CM6-R series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Build on PCIe 4.0 and NVMe 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25W.

Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory, the CM6-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capabilities of up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

KEY FEATURES

  • PCIeⓇ 4.0, NVMe 1.4 specification compliant
  • Form factor: 2.5-inch, 15mm Z-height
  • Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC memory
  • SFF-TA-1001 conformant (U.3)
  • Dual-port design for high availability applications
  • 6th generation, two-die failure recovery and double parity protection
  • High performance with lower power consumption
  • Power loss protection (PLP) and end-to-end data protection
  • Security options: SIE, SED, FIPS 140-2
  • Six power mode settings

KEY APPLICATIONS

  • Software defined storage and virtualization
  • Data warehousing
  • Online transaction processing (OLTP) (transactional and relational databases)
  • Business intelligence
  • Artificial intelligence and machine learning

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.3 Drive) NVMe PCIe drives.

Specifications

Toshiba Model NumberKCM6XRUL3T84
Dell Part Number8W2G5 08W2G5
Capacity3840GB / 3.84TB
InterfacePCIe 4.0 U.3 NVMe 1.4
Product Specification
Sustained Read6900 MB/s
Sustained Write4200 MB/s
Sustained 4 KiB Random Read1,400K IOPS
Sustained 4 KiB Random Write170K IOPS
InterfacePCIe 4.0: NVMe 1.4
Maximum Interface Speed64 GT/s (PCIe Gen4 single x4, dual x2)
Memory TypeBiCS FLASH TLC
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 8W2G5 08W2G5 SDFHS84DAB92T

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
