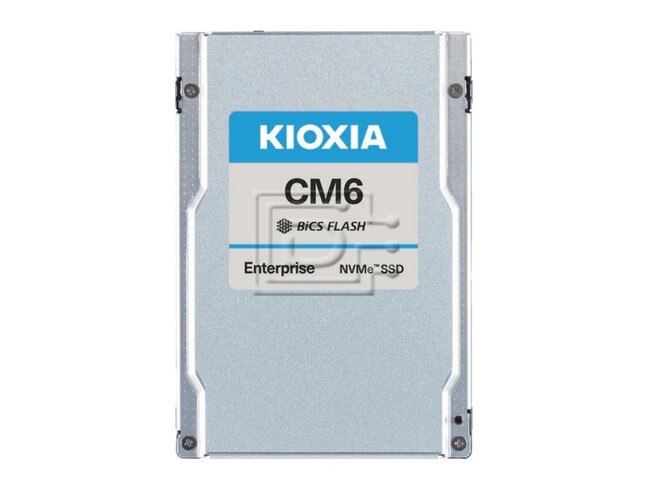

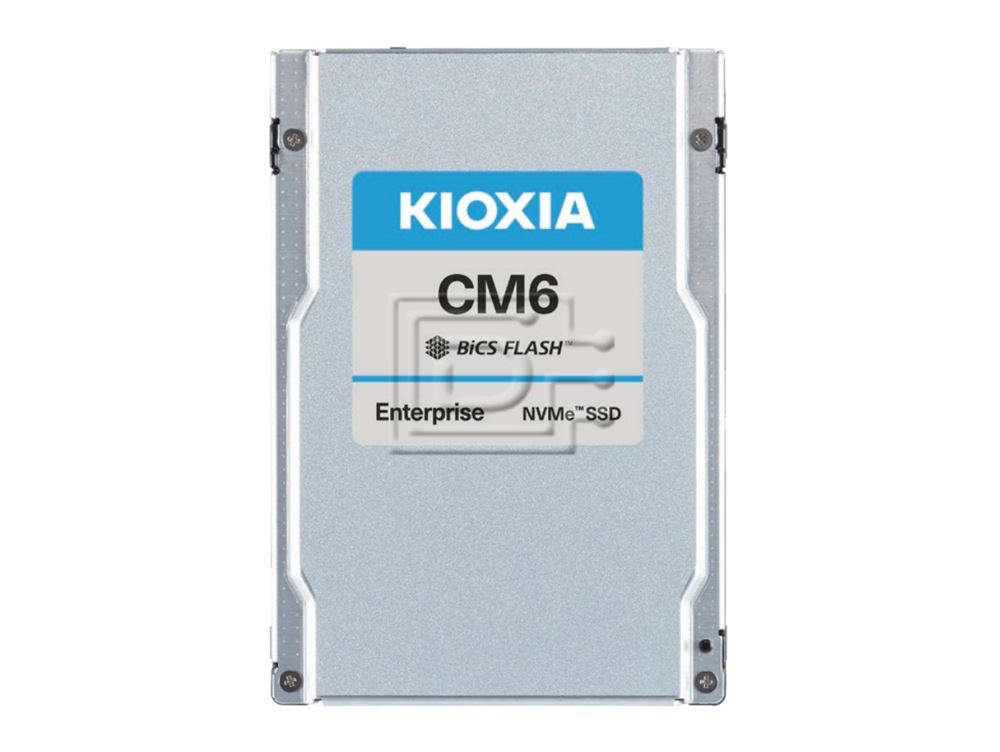

Dell EMC 97GR0 / Kioxia KCM6XVUL3T20 3.2TB 2.5" SFF TLC Mixed Use NVMe U.3 PCIe 4.0 x4 SIE SSD
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 3.2TB |
| Speed: | Solid State |
| Interface Types: | NVMe U.3 |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | PCIe 4.0 32GBps |
Description
Dell EMC 97GR0 / Kioxia KCM6XVUL3T20 3.2TB 2.5" SFF BICS FLASH TLC Mixed Use NVMe U.3 PCIe 4.0 x4 SIE SSD - New Pull
Dell EMC 97GR0 / Kioxia KCM6XVUL3T20 3.2TB 2.5" SFF BICS FLASH TLC Mixed Use NVMe U.3 PCIe 4.0 x4 SIE SSD - New Pull
Toshiba Model Number: KCM6XVUL3T20
Alt. Dell Part Number: 97GR0 / 097GR0
KIOXIA CM6-R - Enterprise NVMe™ Read Intensive SSD
KIOXIA CM6-V series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Build on PCIe 4.0 and NVMe 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read), with maximum power consumption of 25W.
Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory, the CM6-R Series of enterprise NVMe SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance making them ideally suited for mixed use enterprise applications.
KEY FEATURES
- PCIeⓇ 4.0, NVMe 1.4 specification compliant
- Form factor: 2.5-inch, 15mm Z-height
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC memory
SFF-TA-1001 conformant (U.3)
- 6th generation, two-die failure recovery and double parity protection
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Security options: SIE, SED, FIPS 140-2
- Six power mode settings
KEY APPLICATIONS
- Software defined storage and virtualization
- Data warehousing
- Online transaction processing (OLTP) (transactional and relational databases)
- Business intelligence
- Artificial intelligence and machine learning
Compatibility
This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard U.3 Drive) NVMe PCIe drives.
Specifications
| Model Number | KCM6XVUL3T20 |
|---|---|
| Dell Part Number | 97GR0 / 097GR0 |
| Product Specification: | |
| Capacity | 3.2TB |
| Interface | PCIe 4.0 U.3 NVMe 1.4 (backwards compatible with U.2) |
| Sustained Read | 6900 MB/s |
| Sustained Write | 4200 MB/s |
| Sustained 4 KiB Random Read | 1,400K IOPS |
| Sustained 4 KiB Random Write | 350K IOPS |
| Interface | PCIe 4.0: NVMe 1.4 |
| Maximum Interface Speed | 64 GT/s (PCIe Gen4 single x4, dual x2) |
| Memory Type | BiCS FLASH TLC |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 97GR0 097GR0 SDFHQ84DAB03T
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
Warranty
1 Year DiscTech Warranty
