Dell EMC FWYRY / Toshiba Kioxia KCD5XLUG7T68 CD5 Series 7.68TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe SIE Data Center SSD

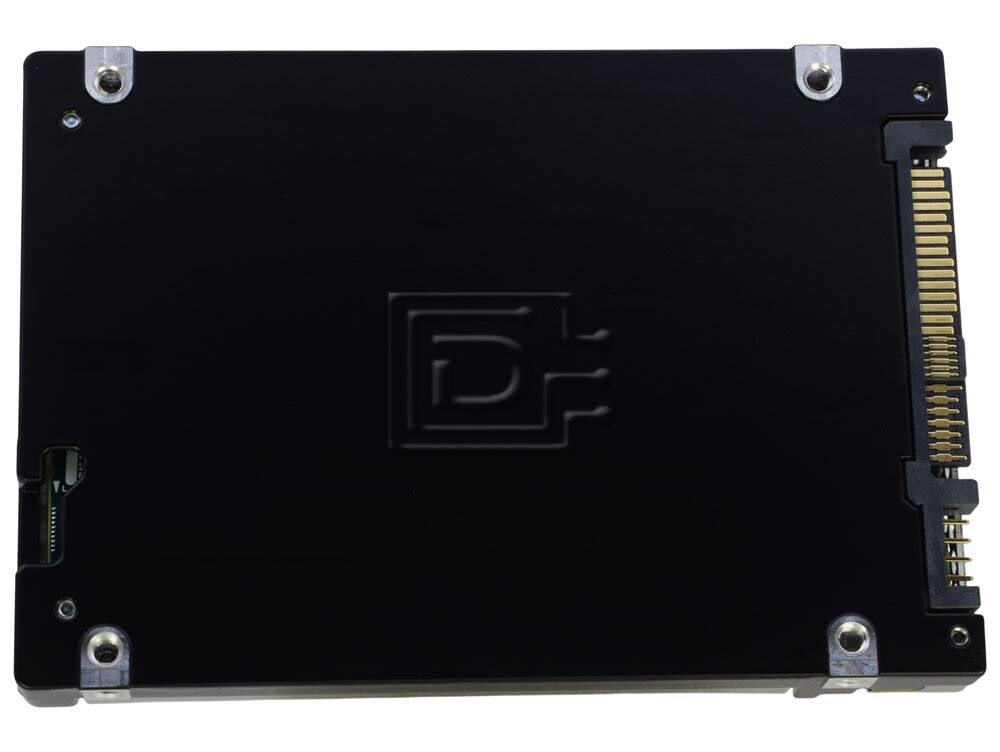

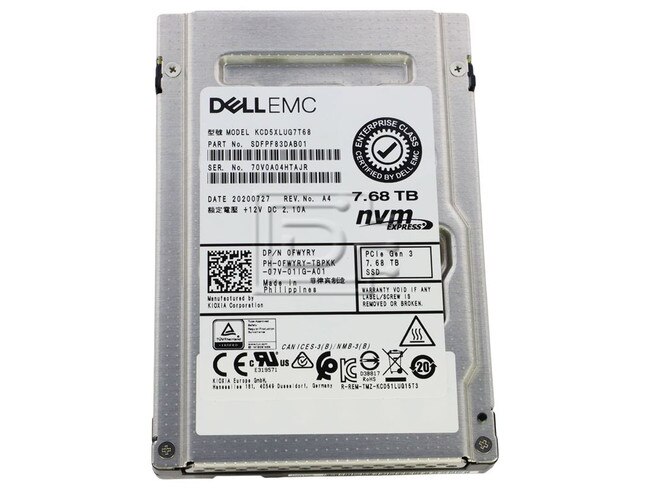

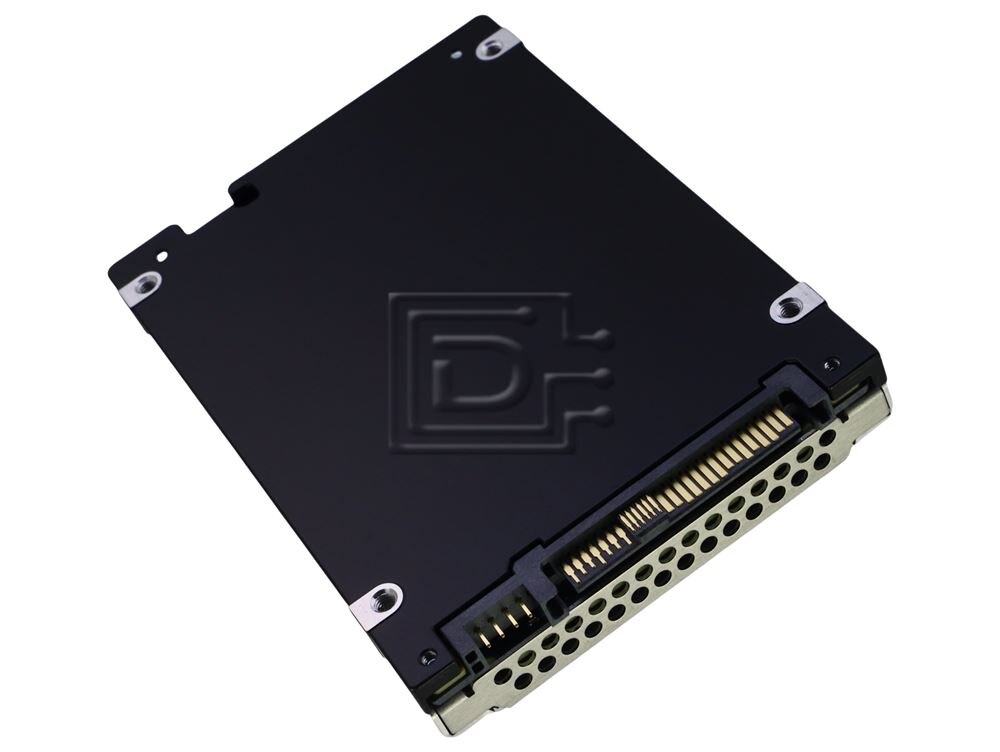

Toshiba KCD5XLUG7T68 FWYRY 0FWYRY EMC 7.68TB U.2 Read Intensive SSD PCIe NVMe Image 1 imageToshiba KCD5XLUG7T68 FWYRY 0FWYRY EMC 7.68TB U.2 Read Intensive SSD PCIe NVMe Image 2 imageToshiba KCD5XLUG7T68 FWYRY 0FWYRY EMC 7.68TB U.2 Read Intensive SSD PCIe NVMe Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:13
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$1,499.00

Capacity:7.68TB
Speed:Solid State
Interface Types:NVMe U.2
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:PCIe 3.0 16GBps
Click to see more 7.68TB NVMe U.2 Solid State Drives

Description

Dell EMC FWYRY / Toshiba Kioxia KCD5XLUG7T68 CD5 Series 7.68TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe SIE Data Center SSD - Brand New OEM

Dell EMC FWYRY / Toshiba Kioxia KCD5XLUG7T68 CD5 Series 7.68TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe SIE Data Center SSD - Brand New OEM

Toshiba Model Number: KCD5XLUG7T68

Alt. Dell Part Number: FWYRY / 0FWYRY

CD5 SERIES - DATA CENTER NVMe™ SSD

MAIN SPECIFICATIONS

The CD5 Series is a read-intensive data center NVMe™ SSD that is optimized to support broad range of scale-out and cloud applications that include Big Data/IoT, Online Transaction Processing, and Virtualization. CD5 SSDs, with a PCIeⓇ Gen3x4 lane interface, deliver consistent performance up to 550K IOPS (random read) and 50K IOPS (random write), with active power consumption of 11-13W.

Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CD5 SSDs deliver <1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 7.68TB in a 2.5 inch form factor, making them suited for hyperscale data center applications.

KEY FEATURES

  • PCIeⓇ Gen3 x4 lane interface with single port support
  • NVMeTM Rev. 1.3a compliant
  • Capacities from 960GB to 7.68TB
  • Up to 550K random read IOPS (single port (1x4) mode)
  • Low power consumption of 11-13W active power
  • 2.5 inch small form factor, 15mm Z-Height
  • Power loss protection
  • End-to-end data protection
  • Sanitize Instant Erase (SIE) option *Note 1,4
  • Self-encrypting drive (SED) option *Note 2,4
  • Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4

APPLICATIONS

  • Hyperscale
  • IoT and Big data analytics
  • Online transaction processing (OLTP) (transactional and relational databases)
  • Virtualized environments
  • Streaming media (Content delivery networks(CDN))

Compatibility

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.2 Drive) NVMe PCIe drives.

Specifications

Toshiba Model NumberKCD5XLUG7T68
Dell Part NumberFWYRY / 0FWYRY
Product Specification
Capacity7.68TB
InterfacePCIe U.2 NVMe 3.0 x4
Sequential Read3140 MB/s
Sequential Write1980 MB/s
Sustained 4 KiB Random Read550K IOPS
Sustained 4 KiB Random Write50K IOPS
InterfacePCIe Gen3 x4: NVMe Rev.1.3a
Interface Speed32 GT/s (Gen3 x4)
Memory TypeBICS FLASH TLC
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: FWYRY 0FWYRY

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
