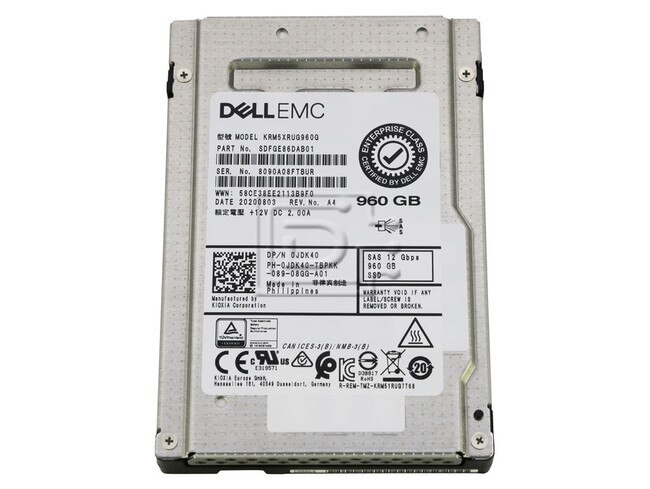

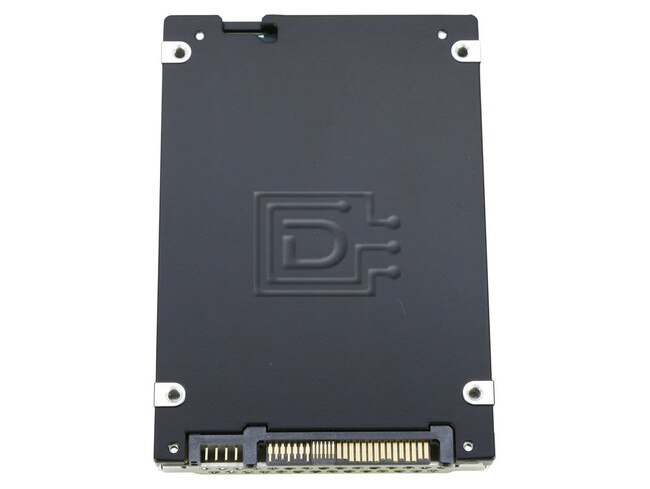

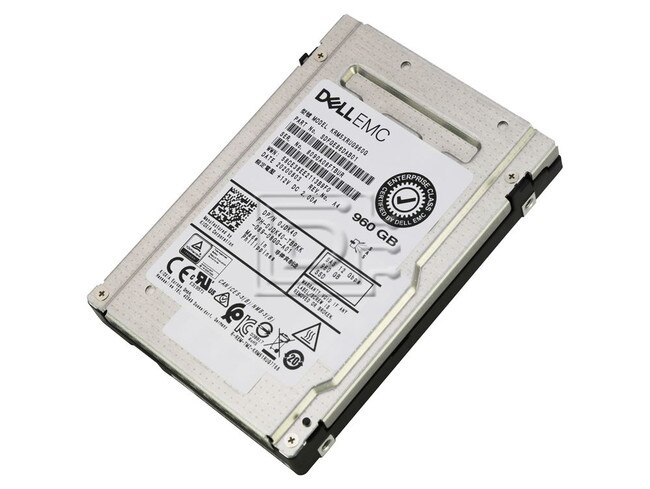

Dell EMC JDK40 / KIOXIA KRM5XRUG960G SDFGE86DAB01 960GB 2.5" SAS 12Gbps RI Solid State Drive

Toshiba Part #/MPN: KRM5XRUG960G

DiscTech Item #: KIO-KRM5XRUG960G-BN-OE-DEL


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 839/650

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Dell EMC JDK40 / 0JDK40 / KIOXIA RM5 Series KRM5XRUG960G SDFGE86DAB01 960GB 2.5" 12Gbps SAS Read Intensive Solid State Drive - Brand New OEM

Dell EMC JDK40 / 0JDK40 / KIOXIA RM5 Series KRM5XRUG960G SDFGE86DAB01 960GB 2.5" SFF 12Gbps SAS / Serial Attached SCSI RI / Read Intensive SSD / Solid State Drive - Brand New OEM

DP/N: JDK40 / 0JDK40

Enterprise Read Intensive SSD

RM5 Series Value SAS Solid State Drive RM5 Series 12Gb/s value SAS SSDs are priced to replace SATA in servers, delivering improved performance and reliability, with no change to the server infrastructure.

Dell EMC + KIOXIA = Better Together

• Together: 20+ years of storage collaboration*

• SSDs shipping across all of Dell EMC’s major server and storage product lines

• All KIOXIA SSDs are VMware vSAN™ certified for your virtualized data center environments

• Sole vendor to offer value SAS (RM5 Series) and data center NVMe™ (CD5 Series) SSDs, similarly priced to SATA



This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives.

Toshiba Enterprise Read Intensive SSD
Model NumberKRM5XRUG960G
Capacity960 GB
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeTLC
Sustained 64KiB Sequential Read839 MiB/s
Sustained 64KiB Sequential Write650 MiB/s
Sustained 4KiB Random Read45,000 IOPS
Sustained 4KiB Random Write50,000 IOPS
MTTF2,000,000 hours
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Ready)3.2 W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max.
Temperature ( Operating )0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration ( Operating )21.27 m/s { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )9,800 m/s { 1,000 G } ( 0.5 ms duration )

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: JDK40 0JDK40 SDFGE86DAB01

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
