Seagate Part #/MPN: ST1000NM004A
DiscTech Item #: SGT-ST1000NM004A-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 215
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

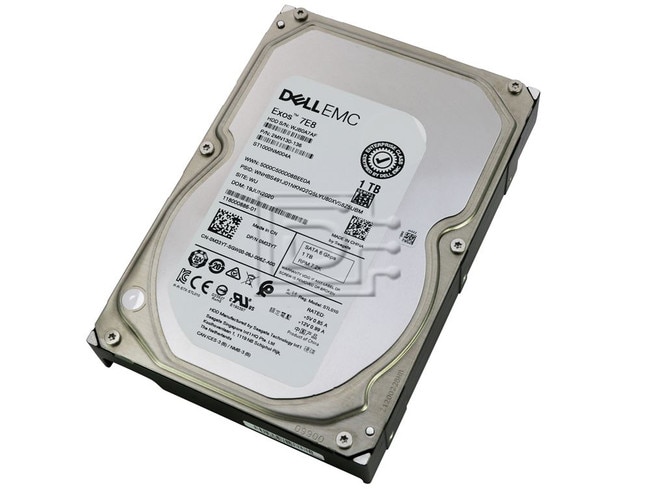

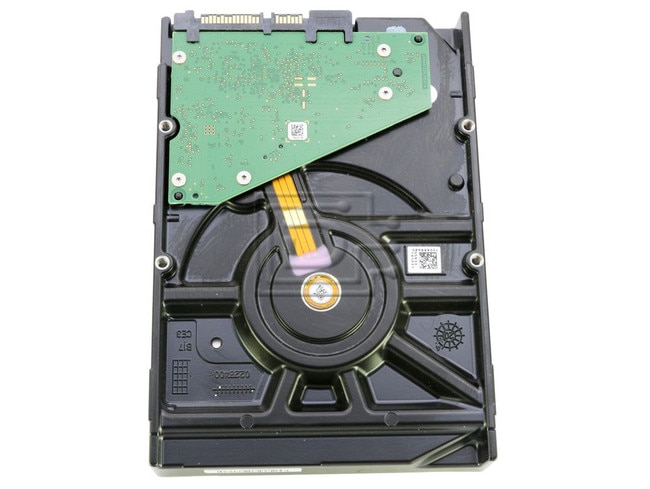

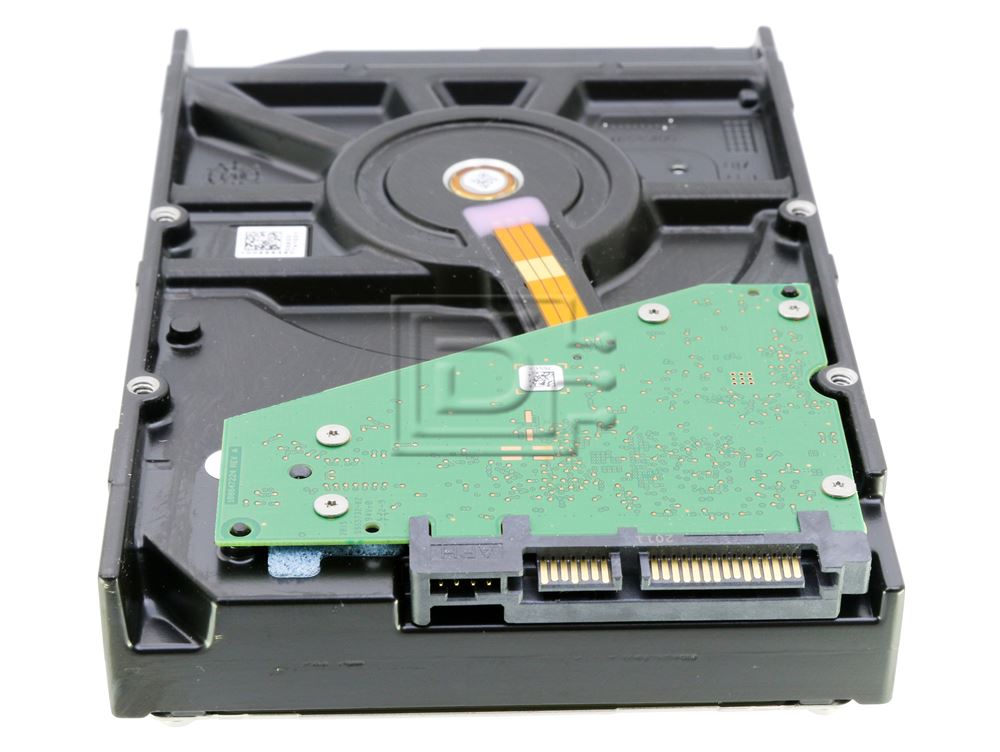

Dell EMC M33YT / Seagate Exos 7E8 ST1000NM004A 1TB 3.5" LFF 6Gbps 7.2K RPM Enterprise 512n 256MB SATA Hard Drive - New Pull OEM
Dell EMC M33YT / Seagate Exos 7E8 ST1000NM004A 1TB 3.5" LFF 6Gbps 7.2K RPM Enterprise 512n 256MB SATA Hard Drive - New Pull OEM
Exos 7E8
Trusted. Efficient. Versatile.
SUPERIOR PERFORMANCE WITH ADVANCED CACHING
- Quickly access and store bulk-data with field-proven ninth-generation technology and dependably fast random performance in a standard and familiar 3.5-inch footprint.*
- Up to 8TB capacity, SAS or SATA interface
- Easy integration into replicated or RAID bulk storage systems
- Supports enterprise-class nearline workloads of up 550TB/yr
- Advanced Write Cache translates into the industry's best response times and the fastest data transfers.
- Seagate Secure™ capabilities ensure authentic and trusted products from a secure supply chain, available with hardware-based encryption (SED), Instant Secure Erase (ISE), TAA compliance and FIPS 140-2.
*Exos 7E8 is formerly known as Enterprise Capacity 3.5 HDD, version 5.0
Best-Fit Applications
- Legacy mainstream applications requiring 512n block size
- Hyperscale applications/cloud data centers with replicated storage
- Scale-out data centers and Big Data analytics
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Alt Part # 2j3100-001
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in SATA Drive.
Seagate Exos 7E8 | |
---|---|
Seagate Base Model # | ST1000NM004A |
Capacity | 2TB / 1000GB |
Features | |
SuperParity | Yes |
Low Halogen | Yes |
PowerChoice Technology | Yes |
Seagate RAID Rebuild Technology | Yes |
Cache | 256MB |
Cache | 256MB |
Reliability/Data Integrity | |
Vibration, Nonoperating: 10Hz to 500Hz(Grms) | 5 |
Mean Time Between Failures (MTBF, hours) | 2,000,000 |
Reliability Rating @ Full 24×7 Operation (AFR) | 0.44% |
Nonrecoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
Power-On Hours per Year (24×7) | 8760 |
Bytes per Sector | 512n |
Performance | |
Spindle Speed (RPM) | 7200 |
Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
Max. Sustained Transfer Rate OD(MB/s,MiB/s) | 215 |
Average Latency (ms) | 4.16 |
Interface Ports | Single |
Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
Power Consumption | |
Idle Power, Average (W) | 4.48 |
Typical Operating (W) | 9.91 |
NPower Supply Requirements | +12 V and +5 V |
Environmental | |
Temperature, Operating (°C) | 5°C – 60°C |
Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
Shock, Nonoperating, 1ms/2ms (Gs) | 150/300 |
Physical | |
Height (in/mm, max) | 26.1mm/1.028in |
Width (in/mm, max) | 101.85mm/4.010in |
Depth (in/mm, max) | 147.00mm/5.787in |
Weight (g/lb) | 620g/1.37lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: M33YT 0M33YT
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
