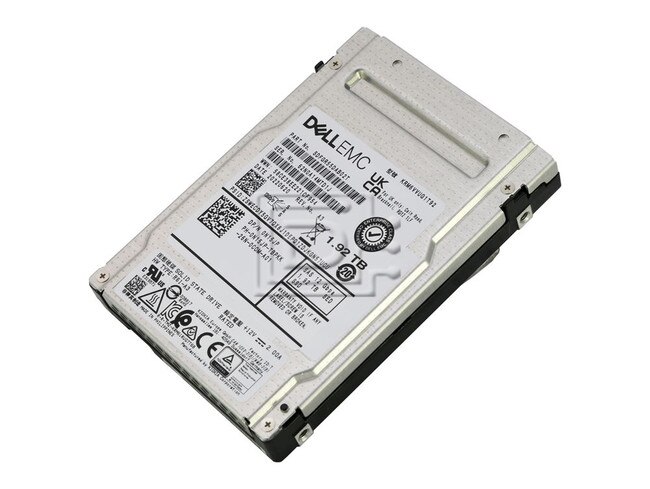

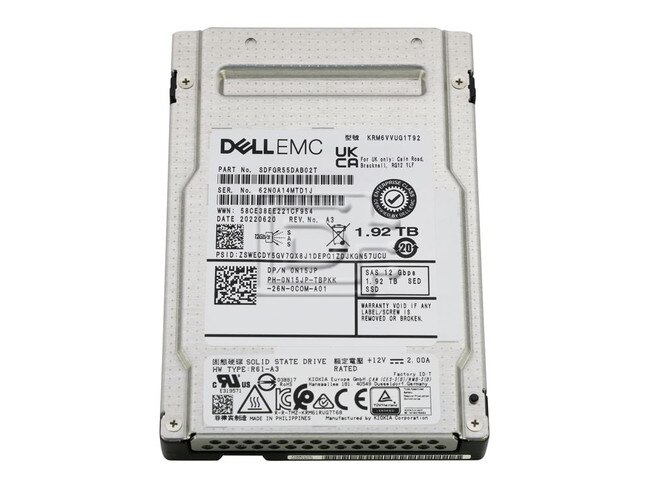

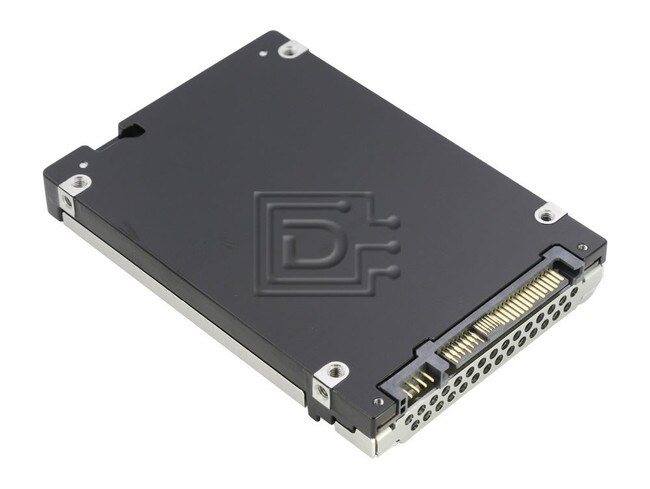

Dell EMC N15JP / Kioxia KRM6VVUG1T92 RM6 Series 1.92TB 2.5" Mixed Use 12Gbps SED SAS SSD
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 1.92TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell EMC N15JP / Kioxia KRM6VVUG1T92 RM6 Series 1.92TB 2.5" Mixed Use 12Gbps SED vSAS SSD - Brand New
Dell EMC N15JP / Kioxia KRM6VVUG1T92 RM6 Series 1.92TB / 1920GB 2.5" SFF / Small Form Factor MU / Mixed Use 12Gbps SED / Self encrypted Drive vSAS / Value SAS SSD / Solid State Drive - Brand New
RM6 Series EMC Enterprise Mixed Use SSD
RM6 12Gbps enterprise SAS SSD is optimized for mixed use applications.
The RM6 Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Endurance series supports 3 DWPD (Drive Writes Per Day)
Key Features
- Up to 7.68TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- Up to 160k IOPS random read (4KiB) in dual port mode
- 2.5-Inch Form-Factor, 15mm Z-Height
- 3 DWPD with 100% Random Write Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Applications
- Media Streaming
- Data Warehousing
- Web Servers
ALT PNS: N15JP 0N15JP
Compatibility
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS large capacity (>2TB) drives.
Specifications
| Enterprise Value Endurance SSD | |
|---|---|
| Model Number | KRM6VVUG1T92 |
| Basic Specifications | |
| Interface | 12G SAS |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | TLC |
| Formatted Capacity | 1.92 TB / 1,920GB |
| Sustained 128KiB Sequential Read | 4,150 MB/s |
| Sustained 128KiB Sequential Write | 2,450 MB/s |
| Sustained 4KiB Random Read | 595,000 IOPS |
| Sustained 4KiB Random Write | 115,000 IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 3 |
| Power Requirements | |
| Supply Voltage | 5 V +10% / -7 % , 12 V ±10 % |
| Power Consumption (Operating) | 5W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Enviromental | |
| Temperature (Operating) | 0 to 70 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: N15JP 0N15JP SDFGR55DAB02T
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
