Dell EMC S4112F-ON 12x SFP+ 10Gbps 3x QSFP28 100Gbps 12 Port Managed Ethernet Network Switch E24W - Refurbished

Dell EMC S4112F-ON 12x SFP+ 10Gbps 3x QSFP28 100Gbps 12 Port Managed Ethernet Network Switch E24W - Refurbished

Dell PowerSwitch S4100-ON Series

The S4100-ON 10GbE switches comprise Dell Technologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art 100GbE uplinks, fibre channel connectivity and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation top-of-rack open networking switches offer optimum flexibility and cost-effectiveness for the enterprise, midmarket and tier 2 cloud service providers with demanding compute and storage traffic environments.

The compact S4100-ON models provide industry-leading density with up to 48 ports of 10GbE or up to 48 ports of 10GBaseT ports, 2 ports of 40GbE and 4 ports of 100GbE in a 1RU form factor. The S4112-ON is a half-rack width model that supports up to 12 ports of 10GbE or 12 ports 10GBaseT, and 3 ports of 100GbE.

Using industry-leading hardware and a choice of Dell SmartFabric OS10 or select 3rd party network operating systems and tools, the S4100-ON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S4100-ON models provide multirate speed, enabling denser footprints and simplifying migration to 100Gbps. Also unique to the S4100-ON series is the ability to meet the demands of converged and virtualized data centers by offering hardware support for L2 and L3 VXLAN gateway. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S4100-ON ideally suited for DCB environments.

Dell PowerSwitch S4100-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell SmartFabric OS10 networking operating system, as well as of alternative network operating systems.

Maximum performance and functionality

The S4100-ON series are high-performance, multifunction, 1/10/25/40/50/100 GbE top-of-rack (ToR) switches purpose-built for applications in high-performance data center, cloud and computing environments. Architectural features to optimize data center network flexibility, efficiency and availability include IO panel to PSU airflow or PSU to IO panel airflow for hot/cold aisle environments and redundant, hot-swappable power supplies and fans.

Key applications

• Organizations looking to enter the software-defined data center era with a choice of networking technologies designed to maximize flexibility
• Multi-functional 1/10/25/40/50/100 GbE switching in High Performance Computing Clusters or other business-sensitive deployments requiring the highest bandwidth. High-density 1/10 GbE ToR server access in high-performance data center environments
• iSCSI storage deployment, including DCB converged lossless transactions
• Small-scale data center fabric implementation via the S4100-ON switch in leaf and spine along with S-Series 1/10GbE ToR switches
• VXLAN layer 2/layer 3 gateway support

Key features

• 1RU high-density 10/40/100 GbE ToR switches with up to 48 10GbE (SFP+) or 10GBaseT ports, and up to 4 ports of 100GbE (QSFP28)
• The S4112 is a 1RU, half-rack width 10/100GbE ToR switch with up to 12 ports of 10GbE (SFP+) or up to 12 ports of 10GBaseT ports, and up to 3 ports of 100GbE (QSFP28)
• Multi-rate 100GbE ports support 10/25/40/50 GbE. 40GbE ports support 10GbE. 10GbE ports support 1GbE. Up to 4 different simultaneous speeds are possible in a given profile
• 1.76Tbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4148F-ON and S4148T-ON
• 960Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4128F-ON and S4128T-ON
• 840Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4112F-ON and S4112T-ON
• VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
• Converged Network support with DCB
• IO panel to PSU airflow or PSU to IO panel airflow
• Redundant, hot-swappable power supplies and fans (S4112-ON has redundant, fixed power supplies and fans)
• IEEE 1588v2 supported on 48 port models

S4112F-ON Specifications

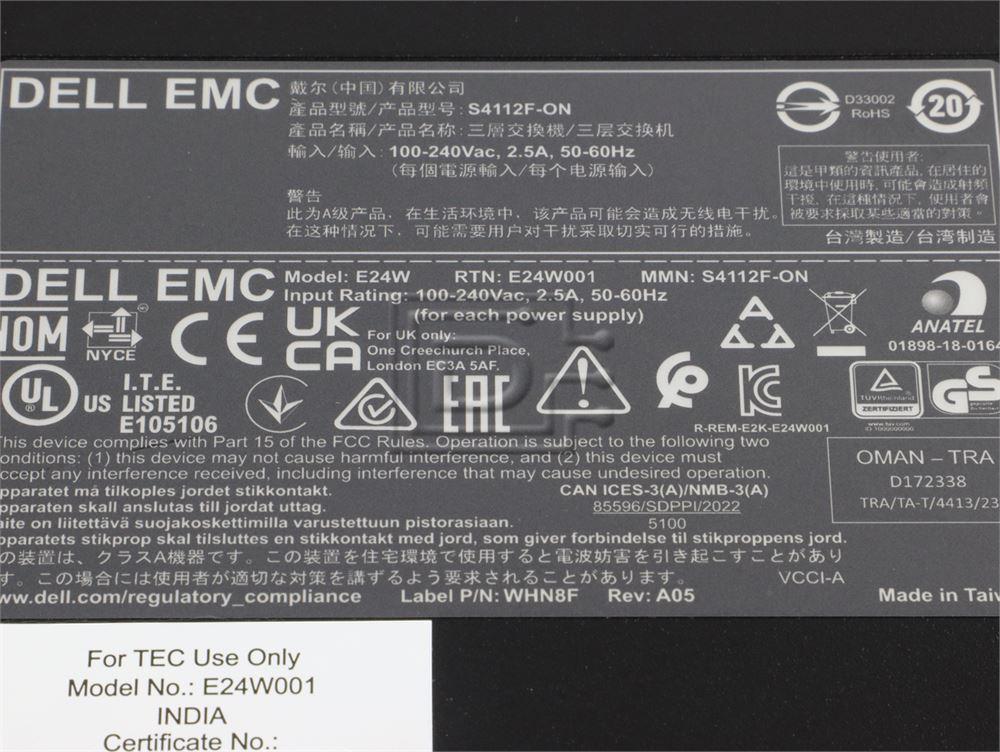

Alternate MPNs: E24W

Weight: 25 lb

Warranty: 1 Year DiscTech
