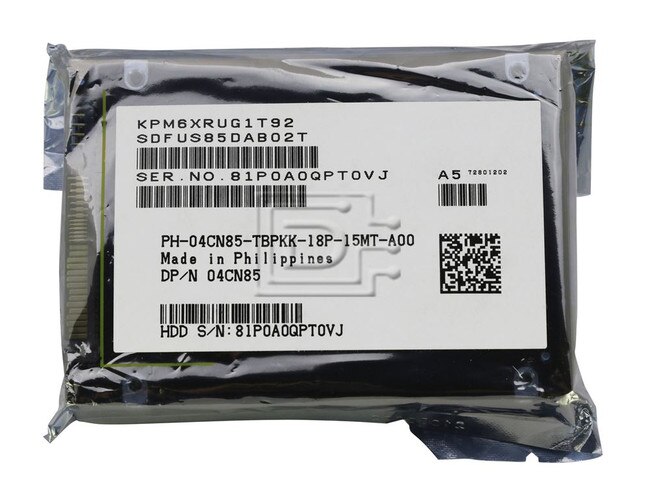

Dell Enterprise 4CN85 / Kioxia KPM6XRUG1T92 PM6-R Series 1.92TB RI 12Gbps SAS SFF SSD ME4 / ME5
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 1.92TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell Enterprise 4CN85 / Kioxia KPM6XRUG1T92 PM6-R Series 1.92TB / 1920GB RI / Read Intensive / 1-DWPD 12Gb/s SAS / Serial Attached SCSI SFF / Small Form Factor SSD / Solid State Drive - Brand New
PM6 Series Enterprise Read Intensive SSD
PM6 12Gbps enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand.
The PM6 Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Further features include power-loss protection and full data path protection. Each model is also available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Endurance series supports 1 DWPD (Drive Writes Per Day) and is designed for read-intensive applications such as media streaming, data warehousing and web servers.
Key Features
- Up to 7.68TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- Up to 385k IOPS random read (4KiB) in dual port mode
- 2.5-Inch Form-Factor, 15mm Z-Height
- 1 DWPD with 100% Random Write Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Applications
- Media Streaming
- Data Warehousing
- Web Servers
Compatibility
This drive is designed to work in the Dell ME4 and ME5 series arrays. This includes the ME4012, ME4024, ME4084, ME5012, ME5024, ME5084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | KPM6XRUG1T92 |
| Basic Specifications | |
| Interface | 24G SAS |
| Interface Speed | 22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | TLC |
| Formatted Capacity | 1.92 TB / 1,920GB |
| Sustained 128KiB Sequential Read | 4,150 MB/s |
| Sustained 128KiB Sequential Write | 2,700 MB/s |
| Sustained 4KiB Random Read | 595,000 IOPS |
| Sustained 4KiB Random Write | 125,000 IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5 V +10% / -7 % , 12 V ±10 % |
| Power Consumption (Operating) | 5W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Environmental | |
| Temperature (Operating) | 0 to 70 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: KPM6XRUG1T92 SDFUS85DAB02T 04CN85
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
