HGST Part #/MPN: 0B35307
DiscTech Item #: HIT-0B35307-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State
Interface Types: SAS
Form Factor: 2.5" SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 2100/2050
Average Seek Time: 0.085
Electrical Interface: SAS-3 12Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive / WI
Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell PowerValut ME4084/ME484, Dell 13th Gen. R730/T630, Dell 13th Gen. MD3x60 High Density Arrays, Dell 13th Gen. FD332, Dell 12th Gen. M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620

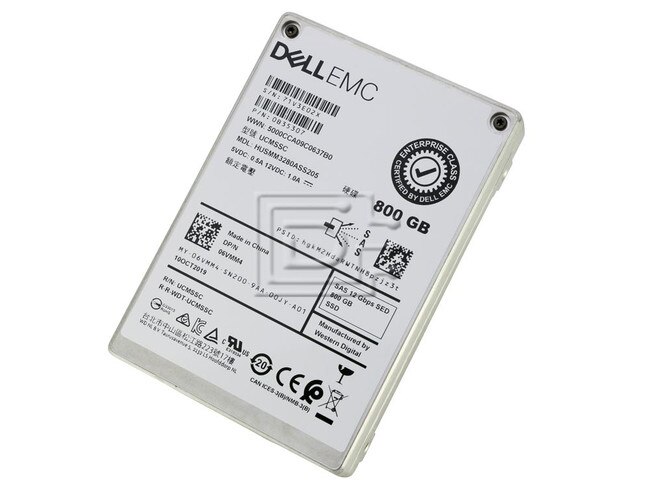

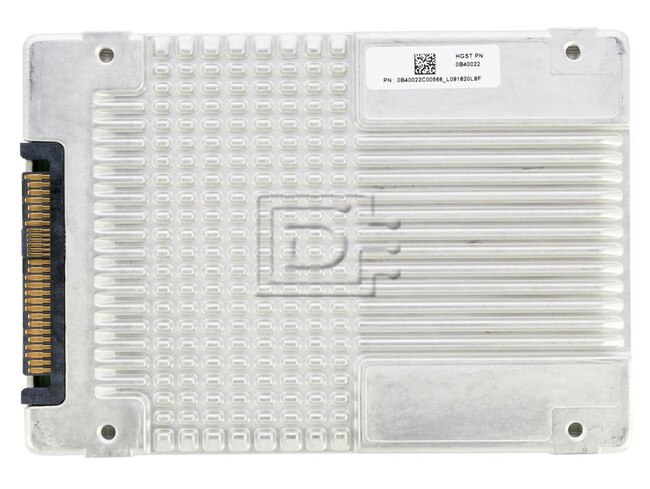

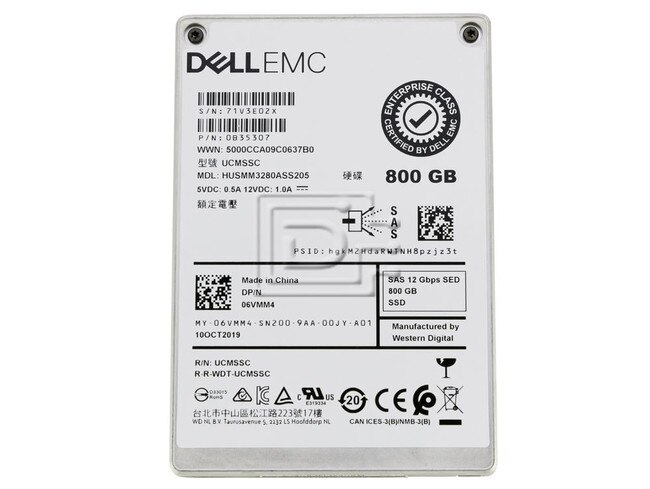

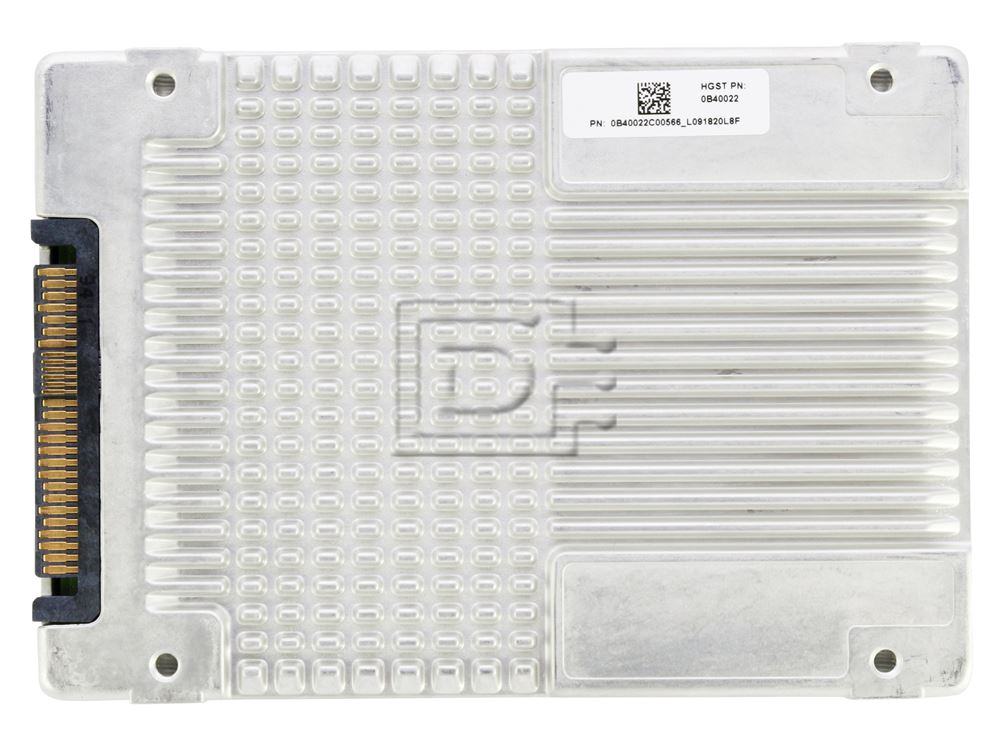

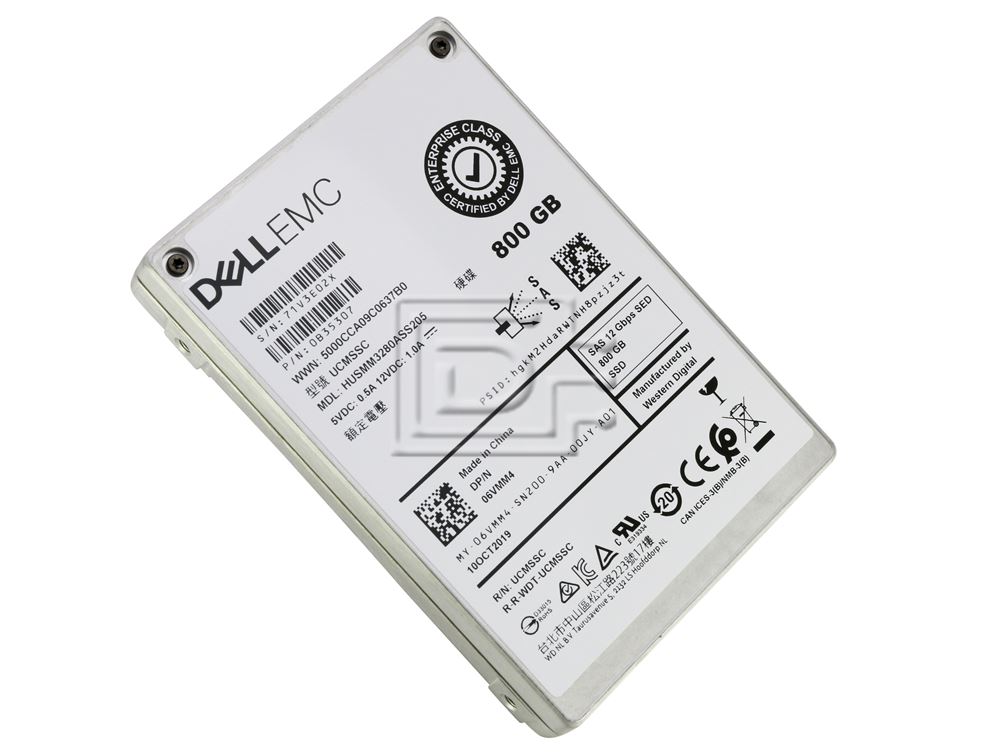

Dell Enterprise 6VMM4 / HGST Ultrastar SS300 0B35307 / HUSMM3280ASS205 800GB 2.5in SFF 12Gbps eMLC WI 10-DWPD SED FIPS Crypto SAS SSD - Brand New
Dell Enterprise 6VMM4 / HGST Ultrastar SS300 0B35307 0B32198 / HUSMM3280ASS205 800GB SFF 2.5in 12Gbps eMLC WI 10-DWPD SED TCG FIPS Crypto SAS SSD - Brand New
ALT MP/N: 0B35307 HUSMM3280ASS205
HGST Enterprise Storage Experience
Ultrastar SS300
Increase Productivity and Operational Efficiency by Boosting IOPS Performance with SAS SSDs
As data centers and enterprises struggle to manage the growing abundance and availability of data, the next generation of SAS SSDs with enhanced performance and endurance arrives to help address data access challenges. The Ultrastar® SS300 solid-state drive (SSD) is offered in a 2.5-inch small form factor that delivers ultra-high performance to power through the most challenging workloads.
Designed with a 12Gb/s SAS interface for seamless integration into enterprise environments, the Ultrastar SS300 delivers high sequential throughput, up to 2100MB/s read at 14W power. Available with capacities from 7.68TB to 400GB, the SS300 delivers up to 400,000 read and 200,000 write IOPS—double the speed of current 12Gb/s SSDs—providing rapid access to “hot” enterprise data for higher productivity and operational efficiency. The Ultrastar SS300 family offers significant value in terms of IOPS per Watt, reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.
Data Durability and Security with Industry-Leading Quality and Reliability
Ultrastar SS300 combines enterprise-grade 3D MLC or TLC NAND flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance, and sustained performance over the life of the SSD. The Ultrastar SS300 family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hours mean-timebetween-failure (MTBF). The 3.2TB 10 DW/D capacity Ultrastar SSD endures up to 59 petabytes (PB) of random writes over the life of the drive—the equivalent of writing 16 terabytes (TB) per day for five years.
For complete end-to-end data protection and reliability, the Ultrastar SS300 family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), ExclusiveOR (XOR) parity to protect against flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SS300 family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity), whichever comes first.
Trust Your Storage Systems with SSD Products Developed by Experts in Enterprise Storage
The HGST brand leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar SS300 family. The synergistic relationship between the new throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage options, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST-brand storage drives an ideal choice to help meet escalating reliability, endurance, and performance in the most demanding enterprise environments.
Features & Benefits
Performance
- Feature / Function
- SAS 12Gb/s interface
- MLC NAND flash memory
- 2100 / 2050 MB/s sequential R/W
- 400K / 200K IOPS random R/W
- 285K IOPS on 70/30 mixed R/W
- Benefits
- 12G Active-Active Dual port & 12G single/dual port for enhanced reliability
- Highest read/write performance at 14W operating power
- Maximum throughput and IOPs for ultra-fast access to data. Double write performance of other 12Gb/s SAS SSD
Power
- Feature / Function
- 9, 11 & 14 Watt options
- Benefits
- Higher IOPS performance with higher power options
Capacity
- Feature / Function
- 7.68TB to 400GB
- Benefits
- Higher IOPS performance with higher power options
Reliability
- Feature / Function
- 0.35% AFR (2.5M hours MTBF)
- 1E-17 bit error rate
- Power loss data management
- Unlimited reads, up to 59 PB writes
- T10 end-to-end data protection
- Exclusive-OR (XOR) NAND
- Benefits
- Reduced field replacement effort
- Enhanced error detection and correction for optimal data integrity
- Assures data integrity during power failure
- Support for extreme write-intensive applications
- Protection against flash die failure
Data Security
- Feature / Function
- Crypto Sanitize models
- TCG encryption models
- TCG + FIPS encryption models
- Benefits
- Enables swift drive redeployment and retirement
- Hardware-based encryption protects data from unauthorized use
Integration
- Feature / Function
- HDD architecture commonality
- Extensive systems integration and test lab
- Benefits
- Higher IOPS performance with higher power options
Highlights
- 3D MLC or TLC NAND Flash for ultra-high performance and endurance
- Best IOPs/Watt for reduced TCO
- 12Gb/s SAS interface for maximum throughput
- Advanced power loss data management technology
- Self-encrypting models conform to TCG’s Enterprise specification
Applications/Environments
- Ultra-high performance tier-0 enterprise storage
- Enterprise-class servers and high performance computing
- Space and/or power constrained environments
- Online Transaction Processing (OLTP)
- Video pre/post-production
- Financial and e-commerce
- Database analytics
Compatibility:
HGST Ultrastar SS300 | |
---|---|
Model Number | 0B34992 |
Alt Model Number | HUSMM3280ASS205 |
Encryption level | TCG + FIPS |
Configuration | |
Interface | SAS 6/12Gb/s supports Wide port @ 12Gb/s |
Capacity | 800GB |
Endurance (Drive Writes per Day - DW/D) | 10 |
Endurance (max PB, Rnd write) | 13,200 |
Form Factor | 2.5-inch SFF |
Flash Memory Technology | 3D Multi-Level Cell (MLC) NAND |
Performance | |
Read Throughput (max MB/s, Seq. 128KiB) | 2100 |
Write Throughput (max MB/s, Seq. 128KiB) | 2050 |
Read IOPS (max, Rnd 4KiB) | 400K |
Write IOPS (max, Rnd 4KiB) | 200K |
Mixed IOPS (70/30 R/W, max R/W, 4KiB) | 285K |
Latency (μs , max) | 85 |
Reliability | |
Error Rate (non-recoverable, bits read) | 1 in 10e17 |
MTBF (M hours) | 25 |
Annualized Failure Rate (AFR) | 0.35% |
Availability (hrs/day x days/week) | 24x7 |
Power | |
Requirement (+/- 5%) | +5 VDC, +12VDC |
Operating Modes (W, typical) |
|
Idle (W, max) | <3.2TB: 3.7, ≥ 3.2TB: 4.7 |
Physical Size | |
z-height (mm) | 15 |
Dimensions (width x depth, mm) | 70.1 x 100.6 |
Weight (max, g) | 140 |
Environmental | |
Operating Temperature | 0º to 60º C |
Non-operating Temperature | -40º to 80º C |
Shock (half-sine wave, G) | 1000G (0.5ms), 500G (2ms) |
Vibration, random (G RMS, 5 to 700Hz) | 2.16 (XYZ) |
ROHS Compliant
Alternate MPNs: 6VMM4 HUSMM3280ASS205
Weight: 0.5 lb
Warranty: 1 Year DiscTech
