Dell Enterprise 7N1WT / Kioxia KPM7XRUG7T68 PM7-R Series 7.68TB 2.5" 1-DWPD Read Intensive ISE 24Gbps SAS SSD ME5

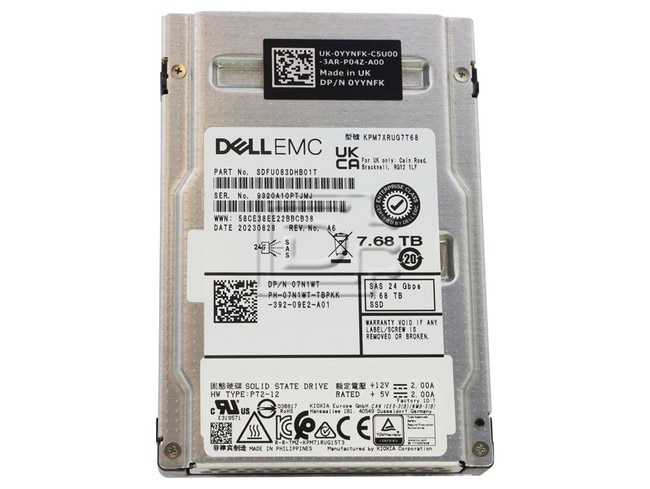

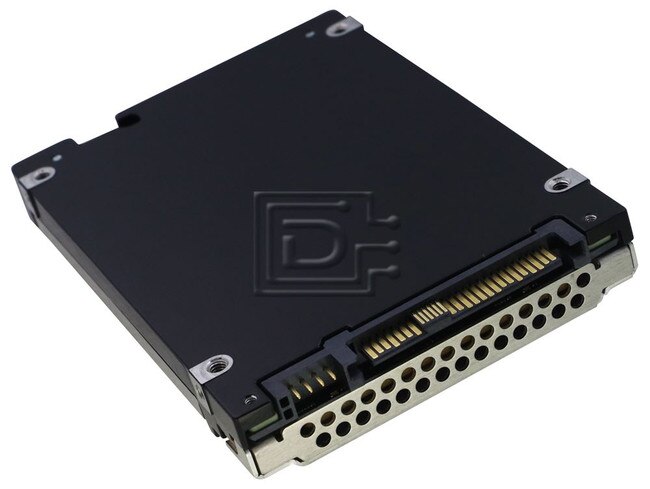

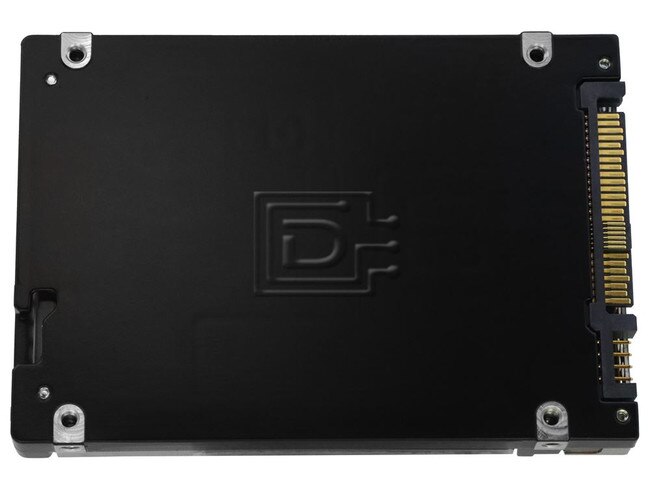

KIOXIA KPM7XRUG7T68 7N1WT 07N1WT Dell 7.68TB SAS SSD ME5 Image 1 imageKIOXIA KPM7XRUG7T68 7N1WT 07N1WT Dell 7.68TB SAS SSD ME5 Image 2 imageKIOXIA KPM7XRUG7T68 7N1WT 07N1WT Dell 7.68TB SAS SSD ME5 Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:46
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$2,489.00

Capacity:7.68TB
Speed:Solid State
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:SAS-4 24Gbps
Click to see more 7.68TB SAS Solid State Drives

Description

Dell Enterprise 7N1WT / Kioxia KPM7XRUG7T68 PM7-R Series 7.68TB 2.5" 1-DWPD Read Intensive ISE 24Gbps SAS SSD ME5 - Brand New

Dell Enterprise 7N1WT / Kioxia KPM7XRUG7T68 PM7-R Series 7.68TB 2.5" 1-DWPD Read Intensive ISE 24Gbps SAS SSD - Brand New

PM7-R Series Enterprise Read Intensive SSD

KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Key Features

  • 24G SAS interface with single/dual-port support
  • Capacities from 1.92 TB to 30.72 TB
  • Up to 720K random read IOPS (4 KiB) in dual-port mode
  • 2.5-inch form factor, 15 mm thickness
  • 1 DWPD with 100% Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF
  • Security options: SIE, SED, FIPS SED[1][2][3][4][5]
  • 5-year limited warranty

Key Applications

  • Data warehousing
  • Streaming media
  • Video on demand (VOD)
  • Web servers

Compatibility

This drive is designed to work in the Dell ME5 series arrays. This includes the ME5012, ME5024, ME5084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.

Specifications

Enterprise Value Endurance SSD
Basic Specifications
Reliability
Power Requirements
Dimensions
Enviromental
Model NumberKPM7XRUG7T68
InterfaceSAS-4.0
Interface Speed22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeBiCS FLASH™ TLC
Formatted Capacity7.68 TB / 7,680GB
Sustained 128KiB Sequential Read4,200 MB/s
Sustained 128KiB Sequential Write 4,100 MB/s
Sustained 4KiB Random Read720,000 IOPS
Sustained 4KiB Random Write175,000 IOPS
MTTF2,500,000 hours
DWPD1
Supply Voltage12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (Operating)5W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Temperature (Operating)0 to 70 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (5 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 7N1WT 07N1WT

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
