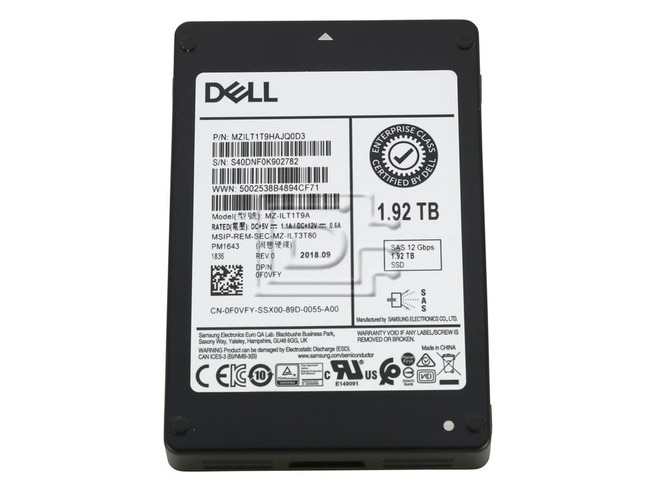

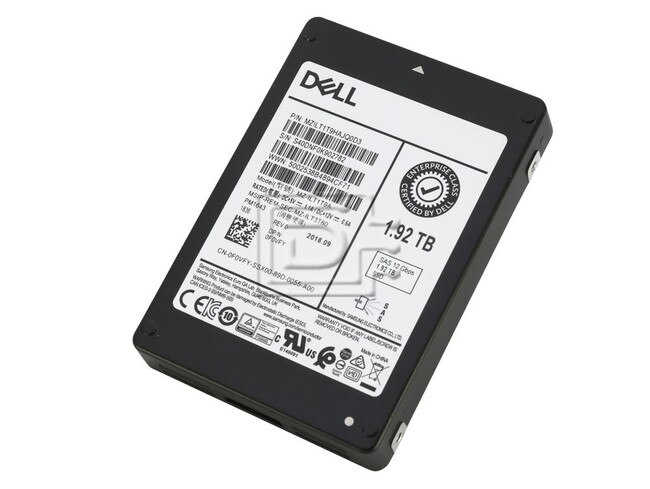

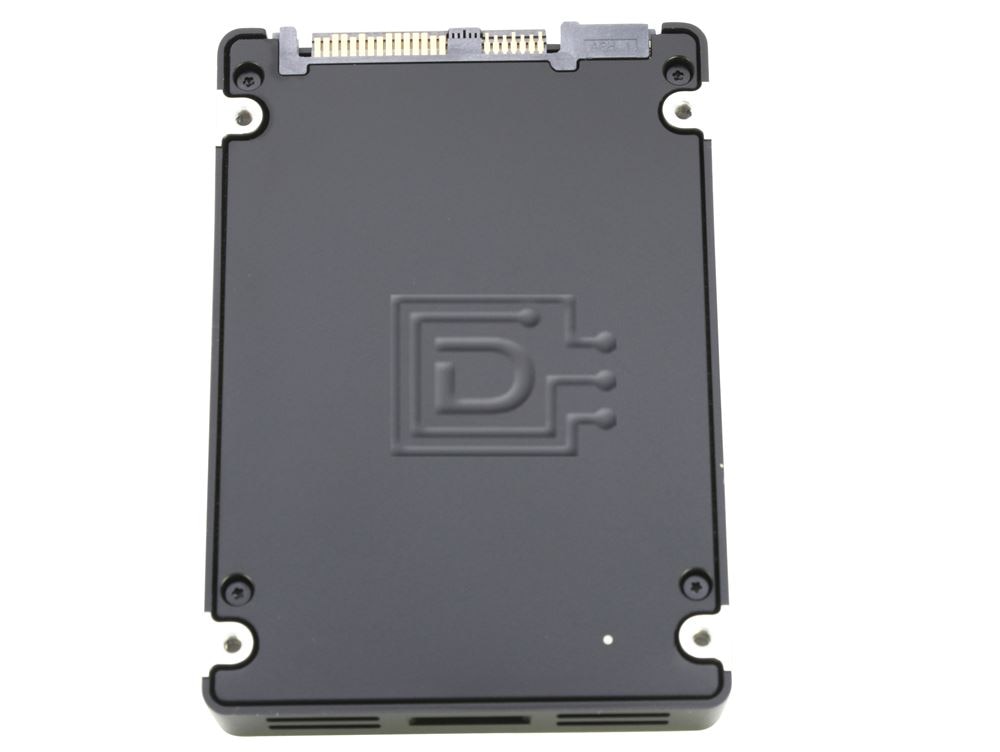

Dell Enterprise F0VFY / Samsung PM1643 MZILT1T9HAJQ0D3 / MZ-ILT1T9A 1.92TB 2.5in SFF SSD 12Gb/s SAS ISE RI Solid State Drive


DiscTech Item #: SAM-MZILT1T9HAJQ0D3-C9-OE-DEL


Enterprise Grade

Capacity: 1.92TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 14th Gen. High Density ME4084/ME484, Dell 14th Gen. ME4024 / ME424, Dell 13th Gen. R730/T630, Dell 13th Gen. MD3x60 High Density Arrays, Dell 13th Gen. FD332, Dell 12th Gen. M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620

Dell Enterprise F0VFY / Samsung PM1643 MZILT1T9HAJQ0D3 / MZ-ILT1T9A 1.92TB 2.5in SFF SSD 12Gb/s ISE SAS Read Intensive Solid State Drive - Certified 95

Dell Enterprise F0VFY / Samsung PM1643 MZILT1T9HAJQ0D3 / MZ-ILT1T9A 1.92TB 2.5in SFF SSD 12Gb/s ISE SAS Read Intensive Solid State Drive - Certified 95

Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers

The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.

The 4 KB random read/write performance was 90 K IOPS/14 K IOPS maximum to the PM1633a reaching up to 99 K IOPS/18 K IOPS.

In addition they provides the following same powerful functions as the previous generation PM853T

  •  Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the PM863 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory
  • End-to-end Protection. Safeguards user data in the PM863 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
  • Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.



Model NumberMZILT1T9HAJQ0D3
Form Factor2.5 inch
InterfaceSAS 12 Gbps
Voltage+5V ± 5%
Sequntial Read (128KB)Up to 2,100 MB/s
Sequential Write (128KB)Up to 1,800 MB/s
Random Read IOPS (4KB)Up to 400,000 IOPS
Random Write IOPS (4KB)Up to 46,000 IOPS

Click here to view the manufacturer's item description/brochure

ROHS Compliant


Weight: 0.5 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
