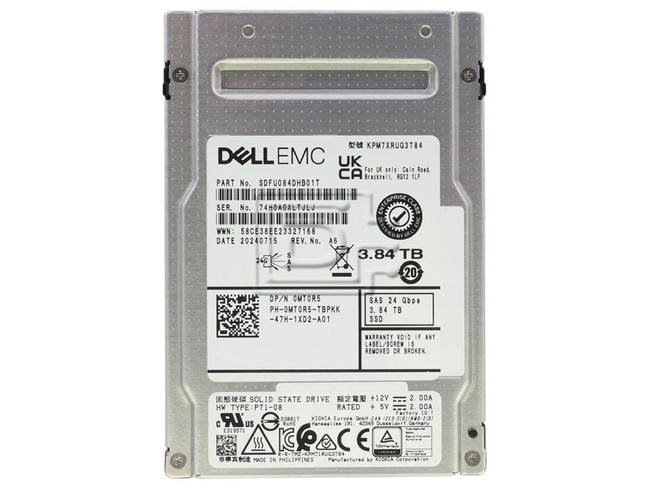

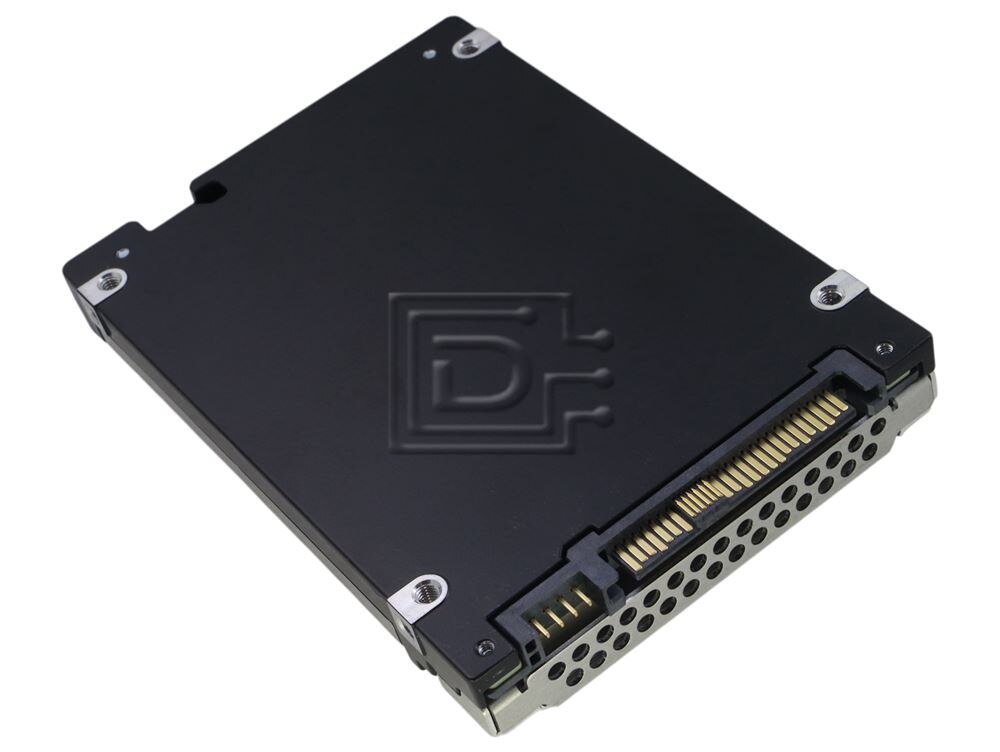

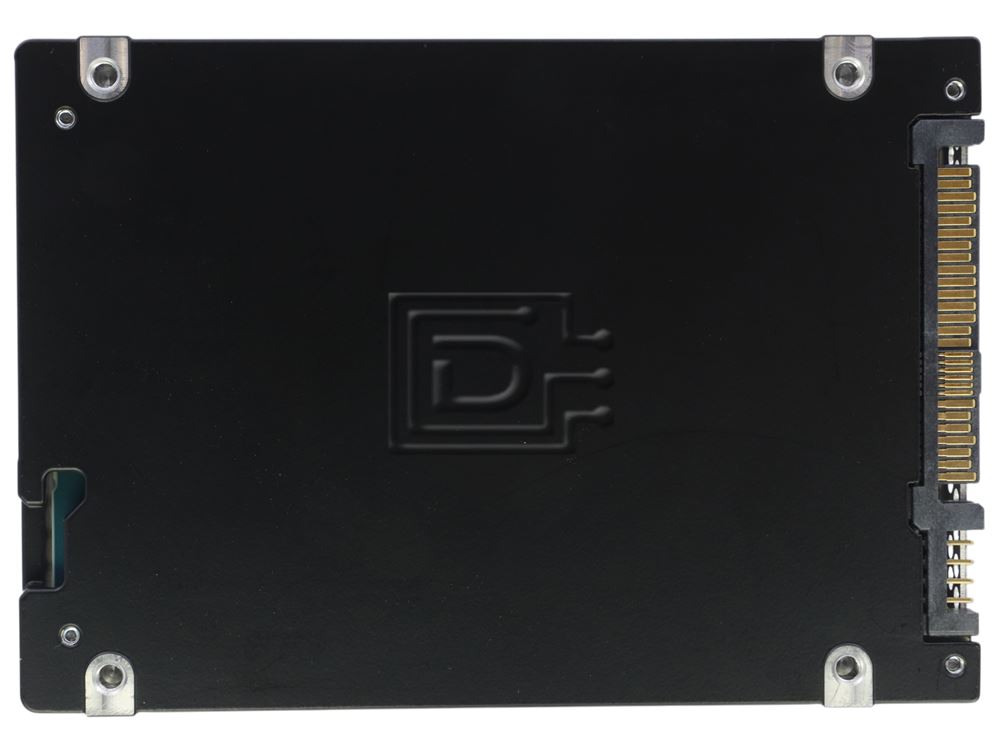

Dell MT0R5 / Kioxia KPM7XRUG3T84 PM7-R Series 3.84TB 2.5" 1-DWPD Read Intensive ISE 24Gbps SAS SSD ME4 / ME5
| Capacity: | 3.84TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-4 24Gbps |
Description
Dell MT0R5 / Kioxia KPM7XRUG3T84 PM7-R Series 3.84TB 2.5" 1-DWPD Read Intensive ISE 24Gbps SAS SSD ME4 ME5 - New Pull
Dell MT0R5 / Kioxia KPM7XRUG3T84 PM7-R Series 3.84TB 2.5" 1-DWPD Read Intensive ISE 24Gbps SAS SSD - New Pull
PM7-R Series Enterprise Read Intensive SSD
KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership
Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.
Key Features
- 24G SAS interface with single/dual-port support
- Capacities from 1.92 TB to 30.72 TB
- Up to 720K random read IOPS (4 KiB) in dual-port mode
- 2.5-inch form factor, 15 mm thickness
- 1 DWPD with 100% Random Write Workload
- Power Loss Protection and End-to-End Data Protection, including T10 DIF
- Security options: SIE, SED, FIPS SED[1][2][3][4][5]
- 5-year limited warranty
Key Applications
- Data warehousing
- Streaming media
- Video on demand (VOD)
- Web servers
Compatibility:
This drive is designed to work in the Dell ME4 and ME5 series arrays. This includes the ME4012, ME4024, ME4084, ME5012, ME5024, ME5084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.
Specifications
| Enterprise Value Endurance SSD | |
|---|---|
| Basic Specifications | |
| Reliability | |
| Power Requirements | |
| Dimensions | |
| Enviromental | |
| Model Number | KPM7XRUG3T84 |
| Interface | SAS-4.0 |
| Interface Speed | 22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH™ TLC |
| Formatted Capacity | 3.84 TB / 3,840GB |
| Sustained 128KiB Sequential Read | 4,200 MB/s |
| Sustained 128KiB Sequential Write | 4,100 MB/s |
| Sustained 4KiB Random Read | 720,000 IOPS |
| Sustained 4KiB Random Write | 175,000 IOPS |
| MTTF | 2,500,000 hours |
| DWPD | 1 |
| Supply Voltage | 12 V ± 10 %, 5 V +10 % / -7 % |
| Power Consumption (Operating) | 5W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Temperature (Operating) | 0 to 70 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MT0R5
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
