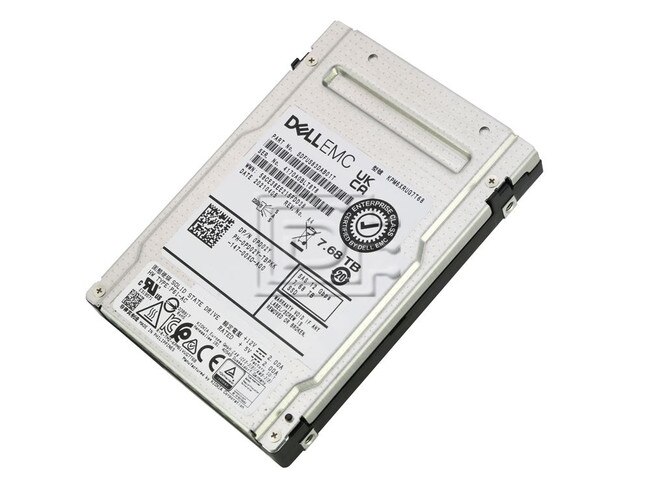

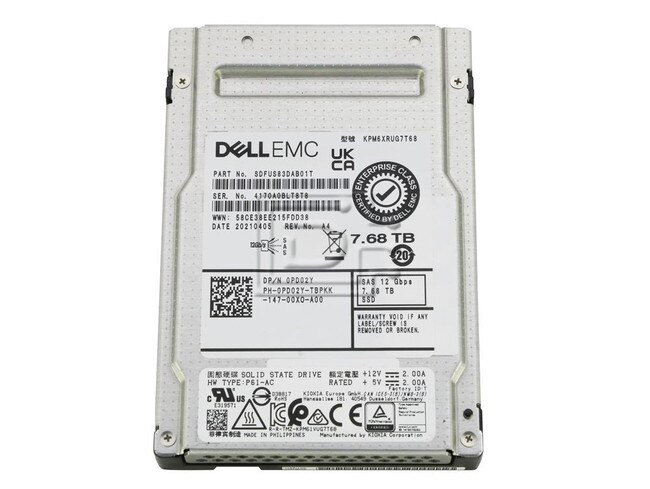

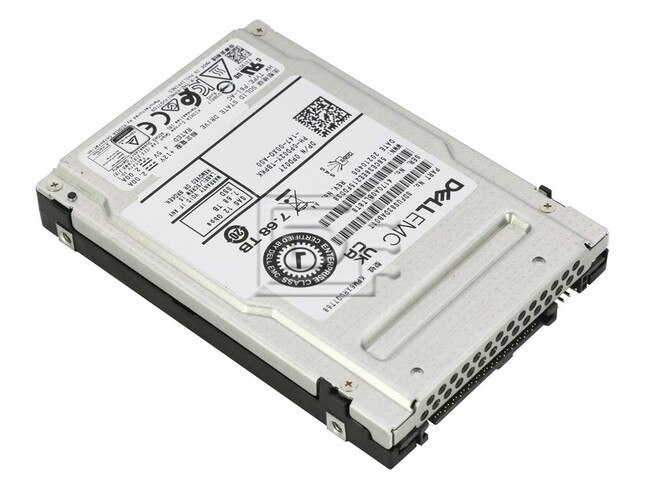

Dell Enterprise PD02Y / Kioxia KPM6XRUG7T68 PM6 7.68TB 2.5" 1-DWPD Read Intensive 12Gbps SAS SSD


DiscTech Item #: KIO-KPM6XRUG7T68-BN-OE-DEL


Enterprise Grade

Capacity: 7.68TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2100 MB/s

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Voltage: 12V

Dell Enterprise PD02Y / Kioxia KPM6XRUG7T68 PM6 Series 7.68TB 2.5" 1-DWPD ISE Read Intensive 12Gbps SAS SSD - Brand New

Dell Enterprise PD02Y / Kioxia KPM6XRUG7T68 PM6 Series 7.68TB 2.5" 1-DWPD Read Intensive ISE 12Gbps SAS SSD - Brand New

PM6 Series Enterprise Read Intensive SSD

PM6 12Gbps enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand.

The PM6 Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Endurance series supports 1 DWPD (Drive Writes Per Day) and is designed for read-intensive applications such as media streaming, data warehousing and web servers.

Key Features

  • Up to 7.68TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • Up to 385k IOPS random read (4KiB) in dual port mode
  • 2.5-Inch Form-Factor, 15mm Z-Height
  • 1 DWPD with 100% Random Write Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option

Key Applications

  • Media Streaming
  • Data Warehousing
  • Web Servers


This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS large capacity (>2TB) drives.

Enterprise Value Endurance SSD
Model Number KPM6XRUG7T68
Basic Specifications
Interface SAS-3.0
Interface Speed 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory Type TLC
Formatted Capacity 7.68 TB / 7,680GB
Sustained 128KiB Sequential Read 2,100 MB/s
Sustained 128KiB Sequential Write  2,100 MB/s
Sustained 4KiB Random Read 370,000 IOPS
Sustained 4KiB Random Write 55,000 IOPS
MTTF 2,500,000 hours
Power Requirements
Supply Voltage 5 V +10% / -7 % , 12 V ±10 %
Power Consumption (Operating) 5W Typ.
Height 15.0 mm +0 , -0.5 mm
Width 69.85 ±0.25 mm
Length 100.45 mm Max.
Weight 130 g Max.
Temperature (Operating) 0 to 60 °C
Relative Humidity ( Operating ) 5 to 95 % R.H.
Vibration (Operating) 21.27 m/s {2.17 Grms} (5 to 800 Hz)
Shock (Operating) 9.8 km/s {1,000 G} (0.5 msec)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: PD02Y 0PD02Y

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
