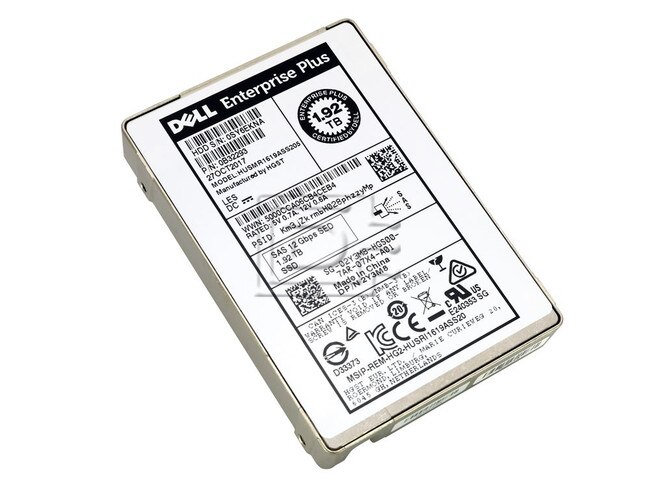

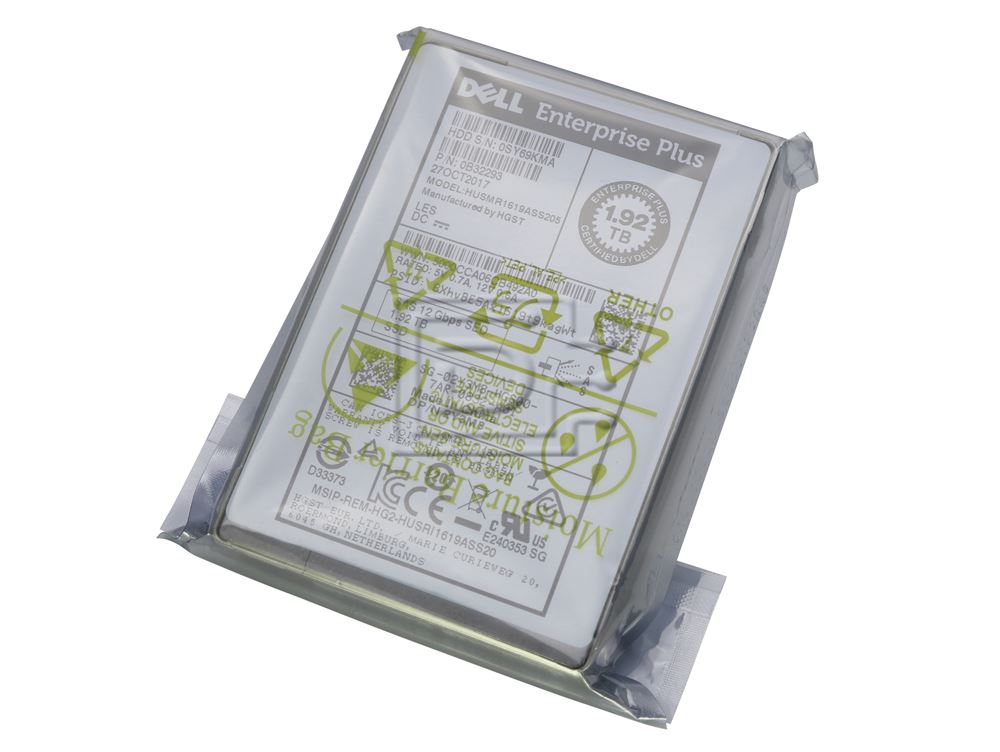

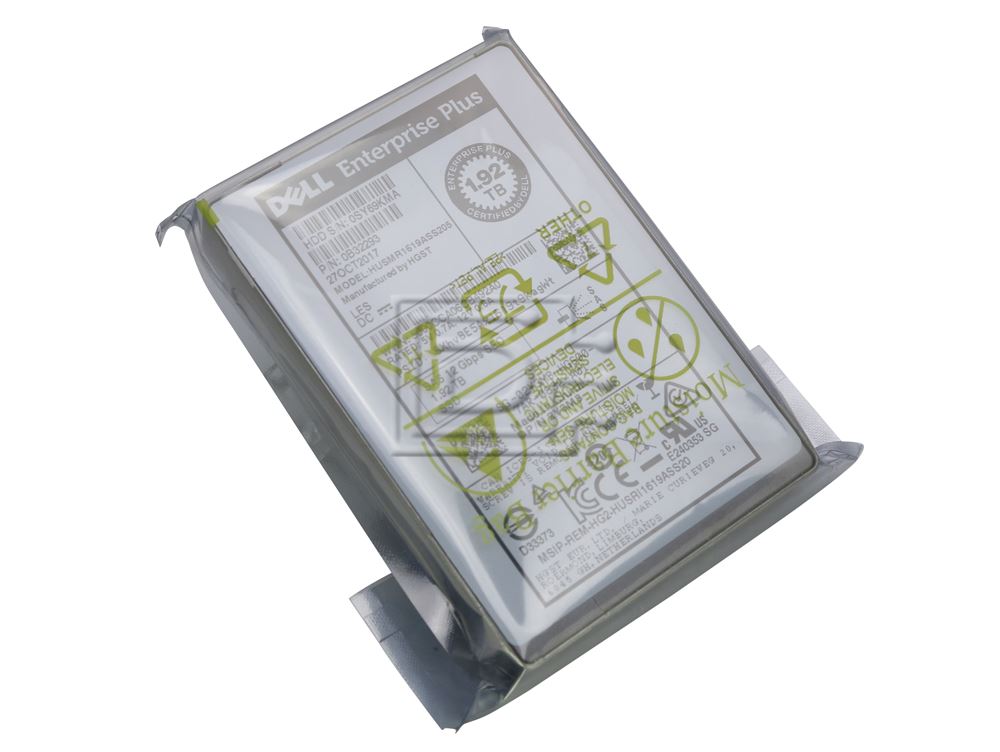

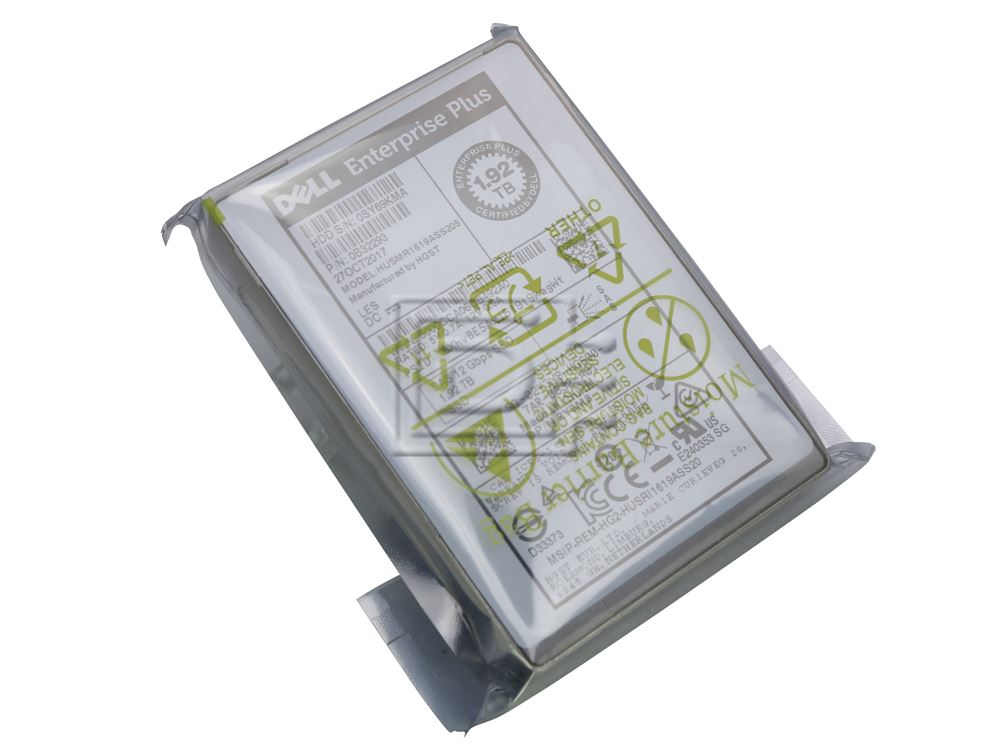

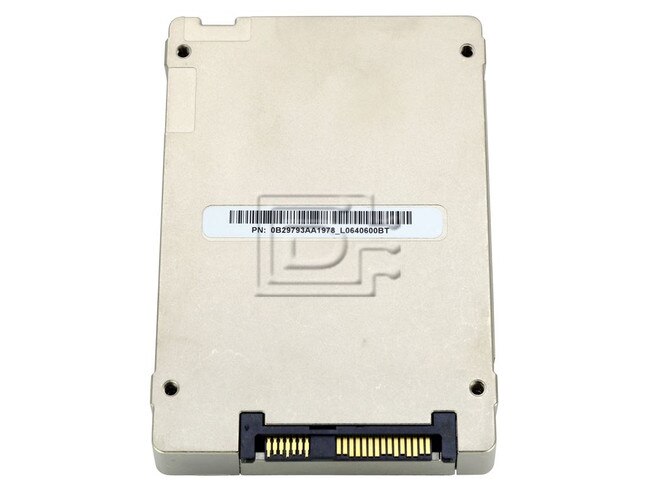

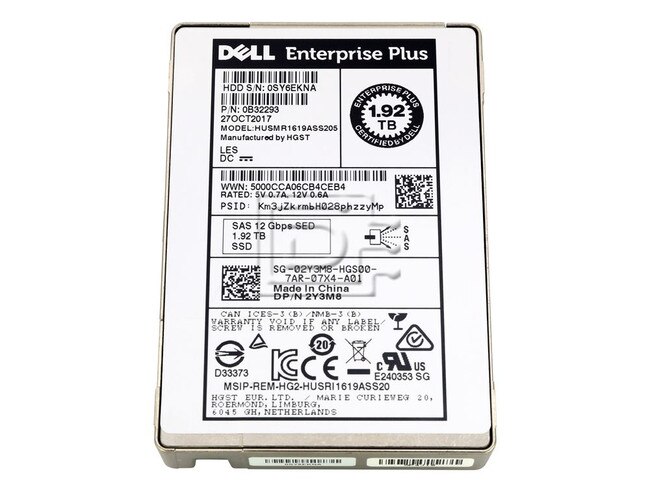

Dell Enterprise Plus 2Y3M8 / Hitachi HUSMR1619ASS205 1.92TB SAS SED Solid State Drive OEM
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 1.92TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell Enterprise Plus 2Y3M8 / Hitachi Ultrastar SSD1600MR HUSMR1619ASS205 / 0B32293 1.92TB 2.5in 12Gbps MLC Read Intensive 1- DWPD SED Crypto Serial Attached SCSI / SAS SSD - Brand New OEM
Dell Enterprise Plus 2Y3M8 / Hitachi Ultrastar SSD1600MR HUSMR1619ASS205 / 0B32293 1.92TB / 1920GB 2.5" 12.0 Gb/s Multi Level Cell Read Intensive 1- DWPD SED Crypto Serial Attached SCSI / SAS Solid State Disk Drive - Brand New OEM
Ultrastar® SSD1600MR ENTERPRISE SOLID-STATE DRIVES
Maximum Performance, Reliability and Endurance
The Ultrastar SSD1600MR delivers high sequential throughput, up to 1100MB/s read and 700MB/s write (12Gb/s SAS). It also delivers up to 130,000 read and 30,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD1600MR family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.
The Ultrastar SSD1600MR family combines enterprisegrade MLC NAND Flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance and sustained performance over the life of the SSD. The Ultrastar SSD1600MR family achieves an extraordinary 0.35% annual failure rate (AFR) or 2.5 million hour meantime-between-failure (MTBF). The 1920GB capacity model endures up to 10.5 Petabytes (PB) of random writes over the life of the drive—the equivalent of writing 5.8 Terabytes (TB) per day for five years.
For complete end-to-end data protection and reliability, the Ultrastar SSD1600MR family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), Exclusive-OR (XOR) parity to protect against Flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SSD1600MR family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity).
HGST Enterprise Storage Experience
HGST leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design, reliability, firmware, customer qualification and system integration to the Ultrastar® SSD1600MR solid-state drive (SSD) family. The synergistic relationship between HGST’s throughput-enhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.
HGST Quality and Service
HGST’s Ultrastar SSD1600MR family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data.
HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs.
Highlights
- MLC NAND Flash for ultra-high performance and endurance
- Read-intensive 1-DW/D for 5 years
- Best IOPS/Watt for reduced TCO
- 12Gb/s SAS interface for maximum throughput
- Advanced power loss data management technology
- Self-encrypting models conform to TCG’s Enterprise specification
Applications/Environments
- Ultra-high performance tier-0 read endurance enterprise storage
- Enterprise-class servers and high performance computing
- Space and/or power constrained environments
- Online Transaction Processing (OLTP)
- Video pre- and post-production
- Cloud computing
Compatibility:
This drive is compatible with laptops that accept 2.5" x 15mm SFF SAS drives.
Specifications
| Ultrastar® SSD1600MR | |
|---|---|
| Model Number | HUSMR1619ASS205 |
| Alt Model Number | 0B32293 |
| Interface | SAS 12Gb/s |
| Capacity (GB) at 512 bytes/sector | 1.92TB / 1920GB |
| Form Factor | 2.5-Inch |
| Flash memory technology | Multi Level Cell (MLC) |
| Sector size support | 512, 520, 528, 4K |
| Performance | |
| Read throughput (max MB/s, sequential 64K) | 1100 |
| Write throughput (max MB/s, sequential 64K) | 700 |
| Read IOPS (max IOPS, random 4K) | 130,000 |
| Write IOPS (max IOPS, random 4k) | 30,000 |
| Reliability | |
| Error rate (non-recoverable bits read) | 1 in 10^17 |
| MTBF (M hours) | 2.5 |
| Annual failure rate (AFR) | 0.35% |
| Availability (hrs/day x days/wk) | 24x7 |
| Endurance (max TB) | 3500 |
| Power | |
| Requirement | +5 VDC (+/-5%) +12 VDC (+/-5%) |
| Operating (W, typical) | 9.0 and 11.0 |
| Idle (W) | 2.2 |
| Physical | |
| z-height (mm) | 15.0 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 187 |
| Environmental (operating) | |
| Case temperature | 0º to 70ºC |
| Shock (half-sine wave) | 1000G (0.5ms) 500G (2ms) |
| Vibration, random (G RMS) | 2.16, all axis (5 to 700 Hz) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 2Y3M8 02Y3M8 HUSMR1619ASS205
Weight: 0.5 lb
Warranty: 1 Year DiscTech
