Dell Enterprise Plus TC05P / Seagate ST600MP0006 600GB 2.5" 12Gbps 15K RPM eMLC Enterprise SAS Hard Drive

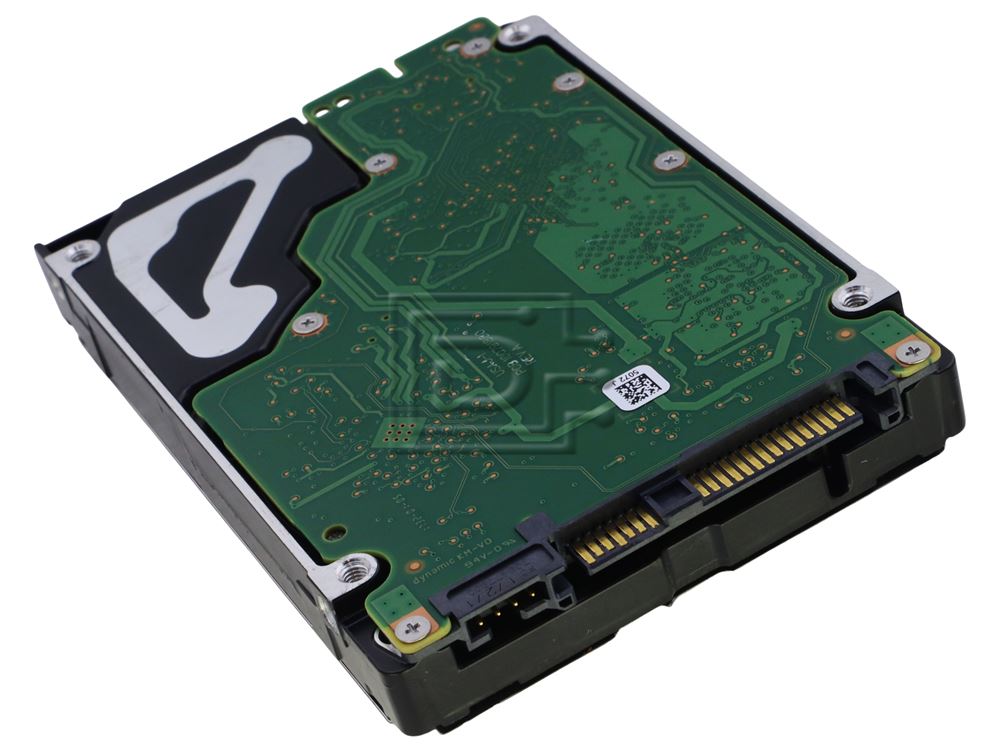

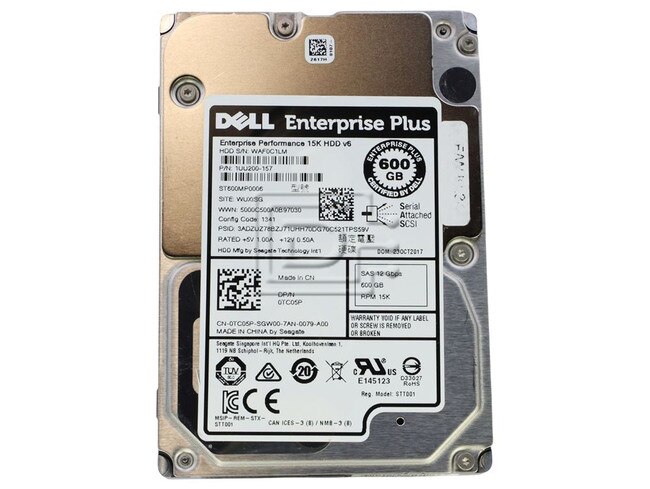

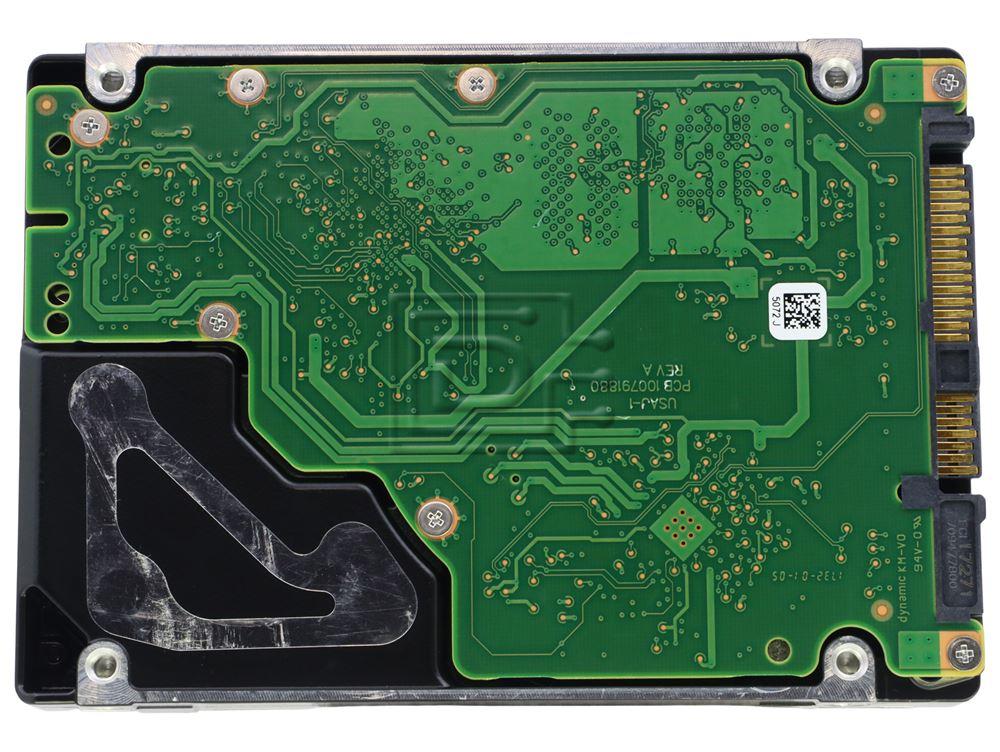

Seagate ST600MP0006 TC05P 0TC05P Dell 600GB SAS Hard Drive Image 1 imageSeagate ST600MP0006 TC05P 0TC05P Dell 600GB SAS Hard Drive Image 2 imageSeagate ST600MP0006 TC05P 0TC05P Dell 600GB SAS Hard Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:11
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$229.00

Capacity:600GB
Speed:15K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-3 12Gbps
RAM:128MB

Description

Dell Enterprise Plus TC05P / Seagate ST600MP0006 600GB 2.5" 12Gbps 15K RPM eMLC Enterprise SAS Hard Drive - Brand New

Dell Enterprise Plus TC05P / Seagate ST600MP0006 600GB 2.5" 12Gbps 15K RPM eMLC Enterprise SAS Hard Drive - Brand New

Enterprise Performance 15K HDD

High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
  • Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2.0M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides up to 18% improvement in SDR performance over prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.

Best-Fit Applications

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives


DPN: TC05P, 0TC05P

Compatibility

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

Specifications

SPECIFICATIONS
Model NumberST600MP0006
PERFORMANCE
TURBOBOOST ENHANCED CACHE
CONFIGURATION/RELIABILITY
POWER MANAGEMENT
ENVIROMENTAL
PHYSICAL
Specification512 Native
Capacity600GB
Interface12Gb/s SAS
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s233 to 160
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)128
NAND Flash TypeeMLC
NAND Flash Size32GB
Mixed-Workload Performance (IOPS, compared to standard model)up to 3x
Disks/Heads3/6
Nonrecoverable Read Errors per Bits Read, Max1 per 10e16
Annualized Failure Rate (AFR)0.44%
Typical Op (A) +5V/+12V0.44/0.54
Average Idle Power (W)5.3
Average Operating Power (W)8.7
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonoperating (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.507/0.230
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: TC05P 0TC05P

Weight: 1.5 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
