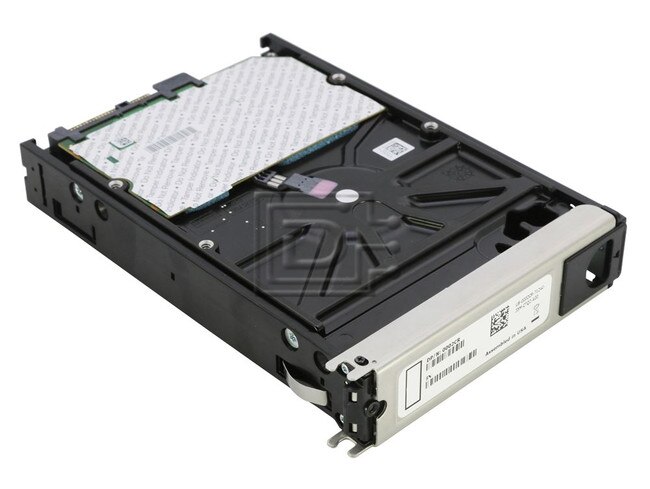

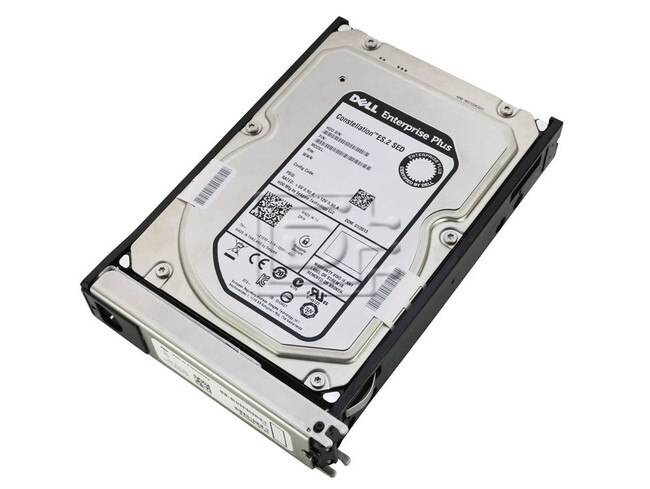

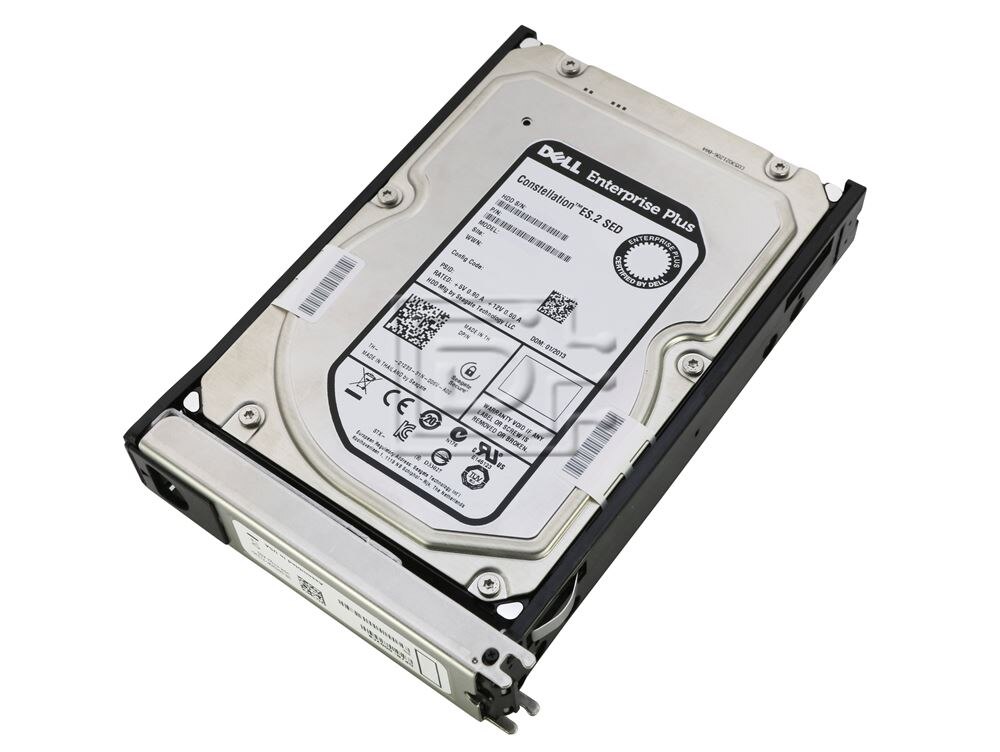

Dell Equallogic 002CR / 07GR25 3TB / 3000GB 7.2K 6Gbps SAS Enterprise Plus Hard Drive

Dell Equallogic Compellent Part #/MPN: 002CR

DiscTech Item #: DEQ-002CR-BN-OE


Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 155

Average Seek Time: 8.5 / 9.5

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Dell Equallogic 002CR / 07GR25 / 7GR25 3TB / 3000GB 3.5" 7.2K 6.0Gbps Serial SCSI / SAS SED / FIPS Enterprise Plus Hard Drive w/ 80103-01 tray - Brand New OEM

Dell Equallogic 002CR / 07GR25 / 7GR25 / Seagate ST33000652SS / 9XT260-257 3TB / 3000GB 3.5" 7.2K 6.0Gbps Serial SCSI / SAS SED / FIPS Enterprise Plus HDD / Hard Drive w/ 80103-01 tray - Brand New OEM


Seagate® Constellation® ES.2 capacity-optimized 3.5-inch drives
Key Features and Benefits

    * Industry’s highest capacity enterprise drive for sustaining demanding data growth
    * Fifth-generation, capacity-optimized nearline drive designed for 24x7 enterprise reliability
    * SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
    * Best-in-class enhanced rotational vibration tolerance ensures consistent bulk data performance
    * Improved power & cooling with low power consumption and enhanced PowerChoice™ technology
    * Multi-drive firmware maximized for enterprise system availability
    * Robust performance with dual processor and ramp load technologies
    * Self-Encrypting Drives with FIPS (140-2) certification are government-approved for the U.S. and Canadian governments.**

*Requires TCG-compliant host or controller support. Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes and allows organizations to securely repurpose or sell hard disk drives. Not available in all models or countries.

DPN: 698PM 0698PM


This kit is compatible with but not limited to the following systems:
Equallogic - PS6500X PS6500XV PS5500X PS5500XV PS6500E PS5500E PS6510E PS4000E PS5000E PS6000E
Xyratex - RS-4835 F5404E


Drive specification


Formatted Gbytes (512 bytes/sector)


Bytes per sector

512, 520, 528

Guaranteed Sectors


Spindle speed (RPM)


I/O data transfer rate (MBps)




Cache buffer


Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.5 / 9.5

Max Sustained Transfer Rate (MB/s)


Dimensions (HxLxW) mm

26.1 / 146.99 / 101.6


0.70 kg

Operating Shock (Read / Write)

70G / 49G

Non-operating Shock

300G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Power Supply Requirements

+12V and +5V


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 07GR25 7GR25 9XT260-257

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
