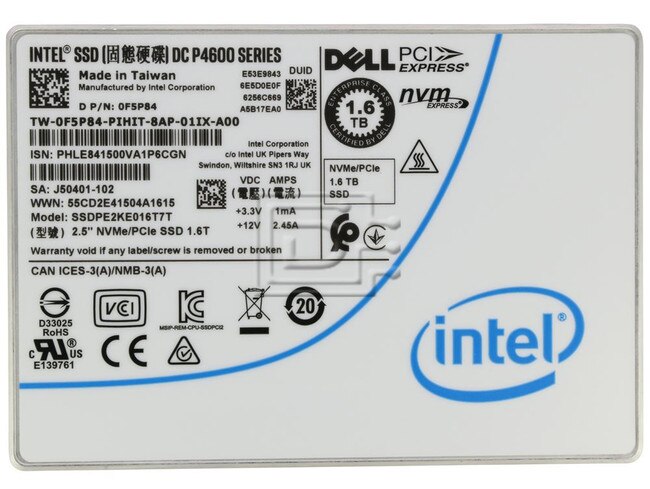

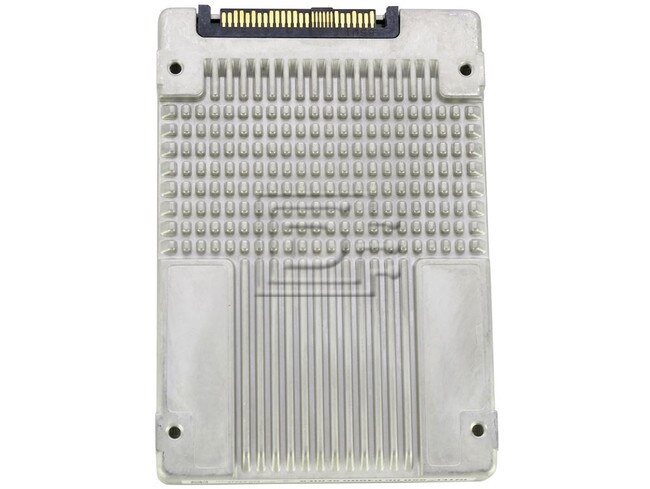

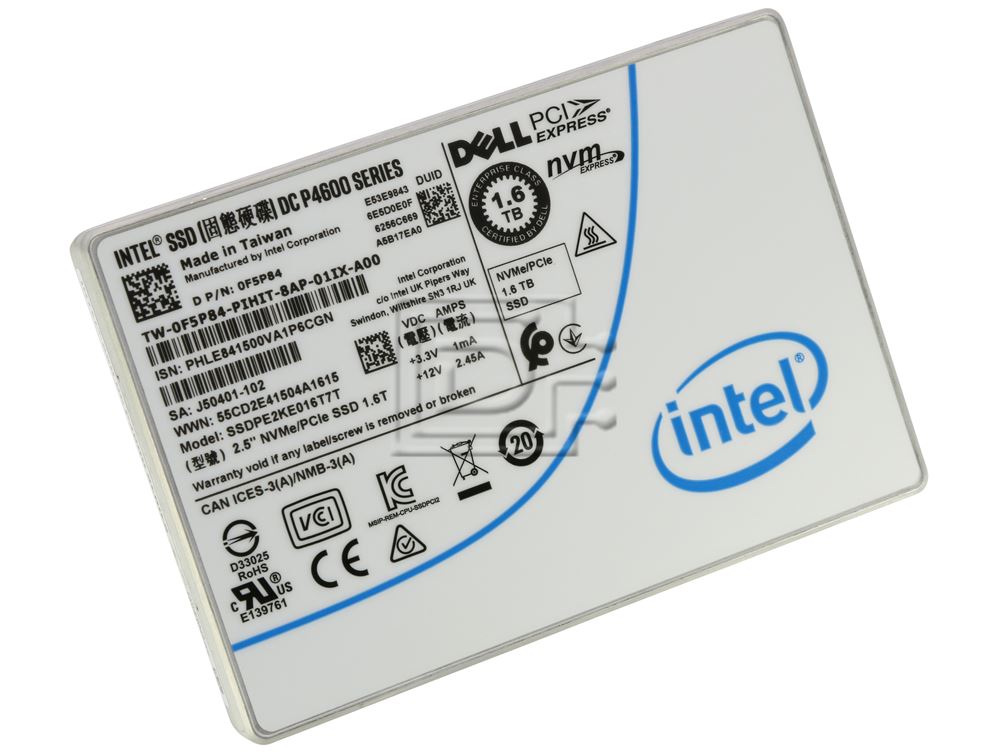

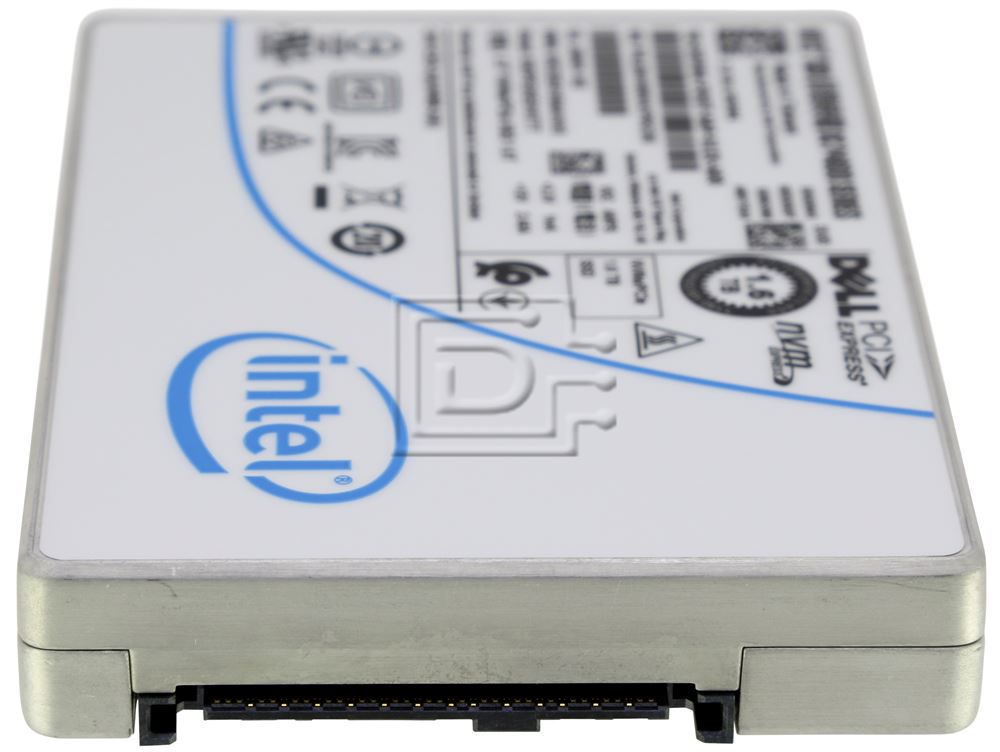

Dell F5P84 / Intel DC P4610 SSDPE2KE016T7T 1.6TB TLC PCIe NVMe Solid State Drive

Dell F5P84 / Intel SSDPE2KE016T7T 1.6TB 2.5" SFF TLC DC P4610 Series Mixed Use PCIe NVMe 3.1 Solid State Drive - Brand New

Dell F5P84 / Intel SSDPE2KE016T7T 1.6TB / 1600GB U.2 2.5" SFF / Small Form Factor TLC / Triple-Level Cell DC P4610 Series MU / Mixed Use 4-DWPD / Drive Writes Per Day PCIe / PCI Express 3.1 x4 NVMe / NVM Express 1.2 SSD / Solid State Drive - Brand New

DPN : F5P84 0F5P84

INTEL SSD DC P4610 SERIES
Designed to meet today’s increasingly demanding service levels and support broader cloud workloads, while reducing storage costs.

7.68TB / 7680GB 2.5in PCIe 3.1 x 5 3D2 TLC

• 7.68 TB Capacity
• U.2 15mm Form Factor
• PCIe NVMe 3.1 x4 Interface

Built from the success of its cloud-inspired predecessor – the Intel® SSD DC P4600 Series – and architected with 64-layer TLC Intel® 3D NAND Technology, the Intel® SSD DC P4610 Series delivers performance, quality of service (QoS), and capacity improvements to further optimize storage efficiency, enabling data centers to do more per server, minimize service disruptions, and efficiently manage at scale. Built on NVMe* specification 1.2, these PCIe* SSDs are available in 1.6TB, 3.2TB, 6.4TB, and 7.68TB in the U.2 2.5” (15mm) form factor.

1. An SSD Built for Cloud Storage Architectures
3. Do More Per Server
4. Minimize Service Disruptions
5. Efficiently Manage at Scale
6. Choose the DC P4610 for Data Center Storage

An SSD Built for Cloud Storage Architectures
Multi-cloud has become a core element for any enterprise strategy, and top cloud providers have responded by openly embracing PCIe*/NVMe*-based SSDs with scalable performance, low latency, and continued innovation. As software-defined and converged infrastructures are swiftly adopted, the need increases to maximize efficiency, revitalize existing hardware, deploy new workloads, and yet reduce operational expenditures. The SSD DC P4610 Series meets these requirements. It significantly increases server agility and utilization, and accelerates applications across a wide range of cloud workloads.

Do More Per Server
Intel’s 64-layer TLC 3D NAND technology enables the DC P4610 to increase available capacity up to 20% more compared to its immediate predecessor, the Intel® SSD DC P4600.1 This increased density is the key to supporting broader workloads, allowing cloud and enterprise service providers to increase users, and improve data service levels. Better QoS is ensured with an intelligent firmware algorithm that keeps host and background data reads and writes at an optimum balance.

With the DC P4610, host applications will not only have access to higher capacity, but will also be serviced at up to 35% faster write rate, up to 35% more endurance per drive, and up to 4x reduction of service time at a QoS metric of 99.99% availability for random access workload.

With this level of workload ability and agility, data centers can refresh existing hardware and reduce operational expenditures.

Minimize Service Disruptions
To ensure telemetry information without disrupting ongoing I/Os, the DC P4610 includes enhanced SMART monitoring of drive health and status, using an in-band mechanism and out-of-band access. A power loss imminent (PLI) protection scheme – with a built-in self-test – guards against data loss if system power is suddenly cut.

Coupled with our industry-leading end-to-end data path protection scheme, PLI features enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated.5 The DC P4610 combines firmware enhancements with new 3D NAND features to prioritize host workload and ensure better service levels.

Efficiently Manage at Scale
To help data centers make the most of increased SSD capacity per server, dynamic namespace management delivers the flexibility to enable more users and scale deployment. The DC P4610 also provides security features like TCG Opal* 2.0 and built-in AES-XTS 256-bit encryption engine, required by some secure platforms.

With the capability to manage multiple firmware versions on a drive and to support updates without a reset, the DC P4610 improves integration and increases the ease and efficiency of deploying at scale.

Choose the DC P4610 for Data Center Storage
With the increased density of 64-layer Intel® 3D NAND and enhanced firmware features, the DC P4610 is built to handle mixed workloads and beyond. The DC P4610 creates greater quality of service, bandwidth, and performance, leading data centers through their evolving transformation

FEATURES AT-A-GLANCE

• Capacity
• 1.6TB / 1600GB
• 3.2TB / 3200GB
• 6.4TB / 6400GB
• 7.68TB / 7680GB
• Performance
• 128k Sequential Read/Write: Up to 3200/3200 MB/s
• Random 4KB Read/Write: Up to 654K/220K IOPs
• Reliability
• End-to-end data protection from silent data corruption
• Uncorrectable bit error rate < 1 sector per 10¹⁷ bits read
• Interface
• PCIe 3.1 x4
• NVMe 1.2
• Form Factor
U.2 23.5” x 15mm (for serviceability, hot-plug, and density)
• Media
• Intel 3D NAND Technology, 64-layer, TLC
• Endurance
• Up to 3 DWPD (JESD219 worklad)
• Power
Up to 15 Watt

• this is the final line

Compatibility:

This drive is compatible with servers and arrays that accept 2.5” 15mm U.2 SFF PCIe NVMe drives

ROHS Compliant

Alternate MPNs: F5P84 0F5P84

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New
