Dell FW25F PERC H345 12Gbps PCIe 3.0 (x8) RAID Controller for 14th / 15th Gen Dell Servers
- In Stock:12Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | PCIe |
| Form Factor: | FHHL (Full-Height/Half-Length) |
| Electrical Interface: | PCIe 3.0 16GBps |
Description

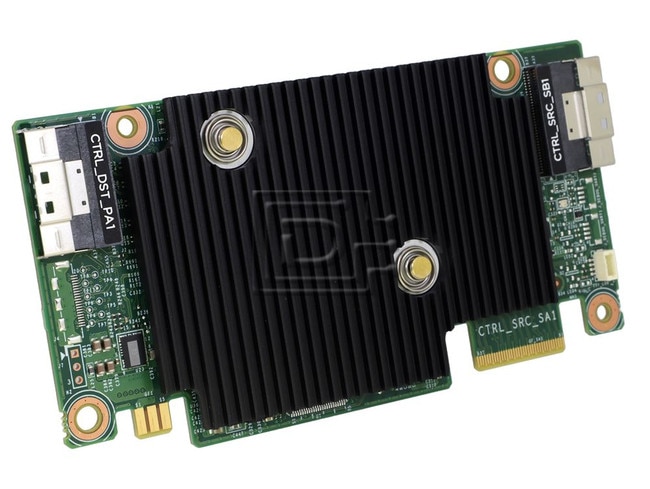

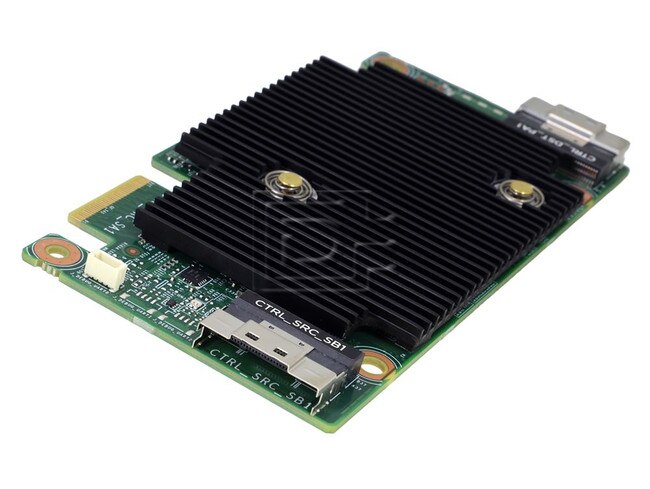

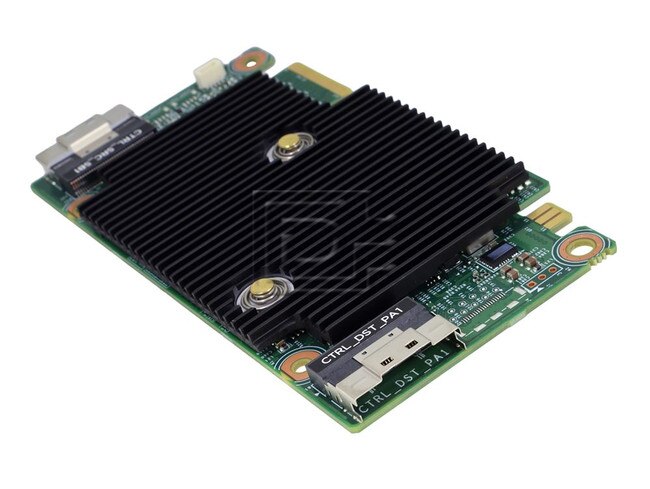

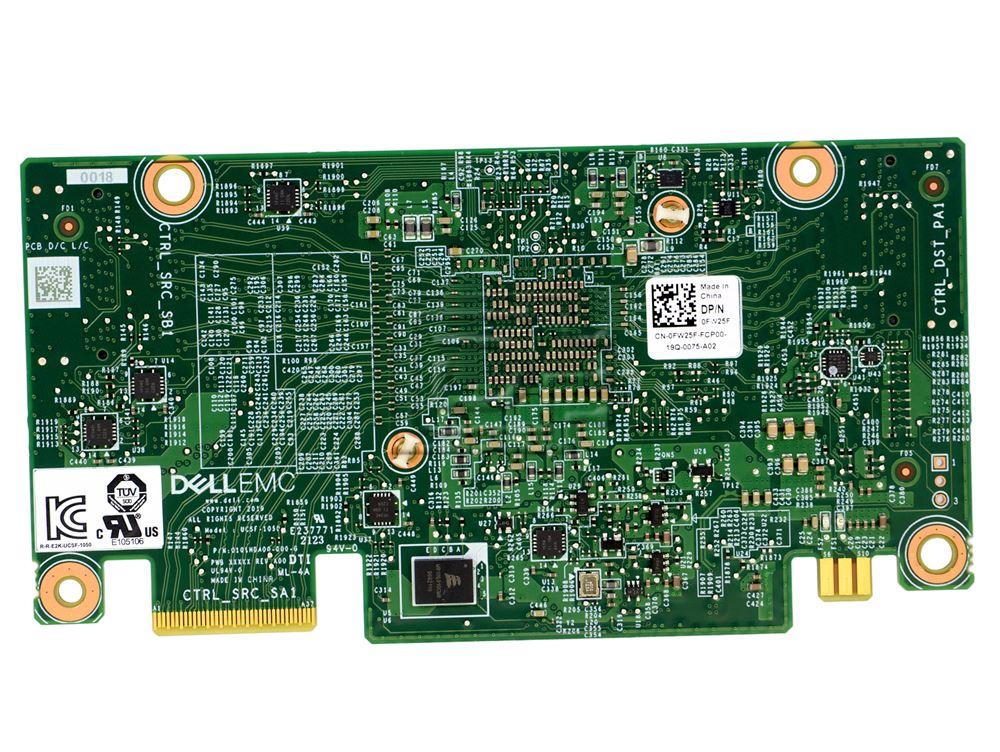

Dell FW25F PERC H345 12Gbps PCIe 3.0 (x8) RAID Controller for 14th / 15th Gen Dell Servers - New Pull
Dell FW25F PERC H345 12Gbps PCIe 3.0 (x8) RAID Controller for 14th / 15th Gen Dell Servers - New Pull
The Dell PERC H345 is a high-performance internal RAID controller from the PERC 10 series, designed for deployment in modern 14th/15th-generation Dell PowerEdge servers. It provides a 12 Gb/s-capable SAS interface and supports both SAS and SATA drives, enabling tiered storage configurations in cost-sensitive yet reliable server environments.
Key Features & Benefits
- 12 Gb/s SAS interface: The H345 is compatible with 12 Gb/s SAS drives—and is backward-compatible with 6 Gb/s SATA/SAS and 3 Gb/s SATA/SAS devices—ensuring flexibility and future-proofing.
- High port density: Supports up to 16 internal drive ports (via two mini-SAS 2×8 internal connectors) on compatible systems without SAS expander; larger counts possible subject to platform/backplane.
- Support for key RAID levels: Optimized for entry/medium RAID workloads—it supports RAID 0, RAID 1 and RAID 10 configurations. (It does not support RAID 5 or RAID 6) according to its spec table.
- Non-RAID (pass-through) capability: Allows disks to be presented as non-RAID to the host OS (i.e., JBOD style) when needed, giving deployment flexibility.
- Dell storage management integration: Fully manageable via Dell’s iDRAC, OpenManage, and other embedded utilities—making it straightforward to configure, monitor and update.
- Power-management features: Includes “Dimmer Switch™” technology (on Dell’s spec sheet) to reduce power usage of configured/unconfigured idle disks, helping optimize total cost of ownership.
- Enterprise-quality device compatibility: Specifically designed for use in Dell PowerEdge servers, with tested compatibility and firmware support from Dell.
Specifications
| Specification | Feature |
| Model | Dell PERC H345 (FW25F) |
| Interface | PCIe Gen 3.0 x8 (host connection) |
| Drive Interface | Two internal mini-SAS connectors (2×8) supporting up to 16 internal drives without SAS expander; also supports SAS expanders subject to server backplane. |
| Supported Drive Types / Speeds | 12 Gb/s SAS 6 Gb/s SAS or SATA 3 Gb/s SAS or SATA |
| Maximum RAID Levels | RAID 0, RAID 1, RAID 10 (no RAID 5/6) |
| Cache Memory | The H345 does not include onboard non-volatile cache or advanced write-back cache. |
| Controller Queue Depth (RAID mode) | 1,536 entries |
| Virtual Disk (VD) support | Up to 32 virtual disks in RAID mode |
| Enumeration Order | Non-RAID disks first, then virtual disks sorted by target ID |
| Installation / Driver Support | Turn off system, install card, connect mini-SAS cables; drivers and firmware updates supported via Dell documentation |
| Supported Environments | Designed for Dell PowerEdge server platforms; may require compatible firmware, backplane, and cables |
Weight: 2 lb
Warranty: 1 Year DiscTech
Condition
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
Warranty
1 Year DiscTech Warranty
