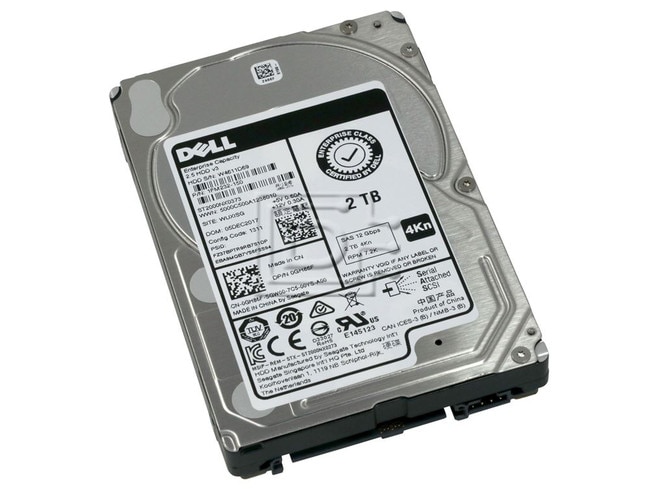

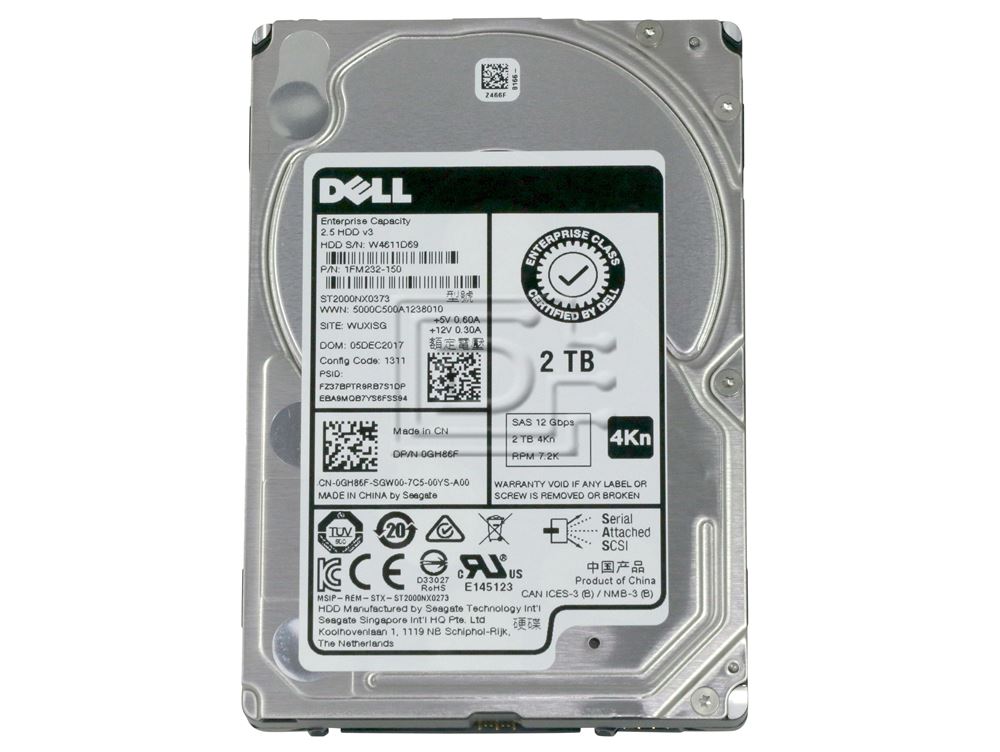

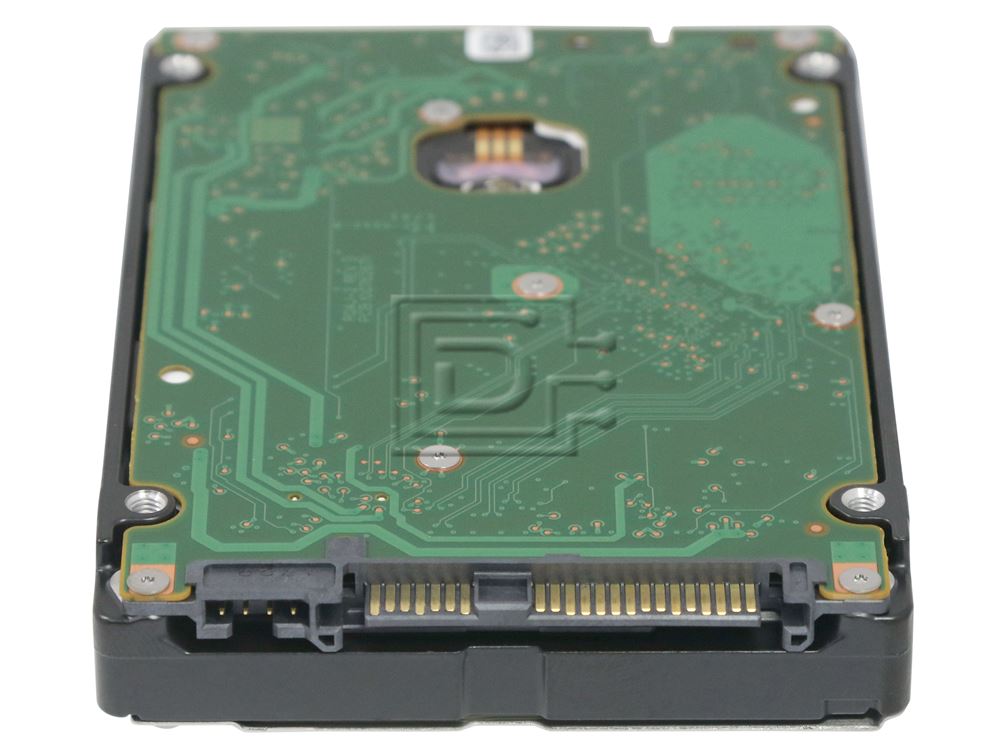

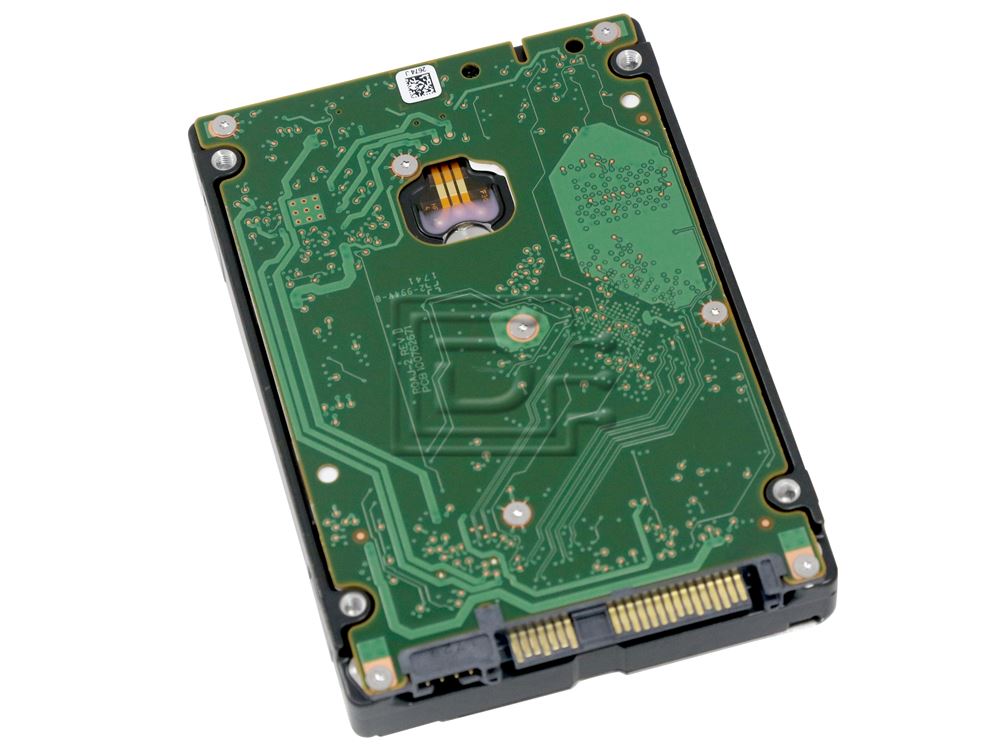

Dell GH86F / Seagate ST2000NX0373 2TB 4Kn SAS HDD
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 2TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Dell Enterprise GH86F / Seagate ST2000NX0373 2TB 2.5" 12Gbps 7200RPM 4Kn SAS HDD - Brand New
Dell Enterprise GH86F / Seagate ST2000NX0373 2TB 2.5" 12Gbps 7200RPM 4Kn SAS HDD - Brand New
Dell Part Numbers: GH86F, 0GH86F
Alternate Part Number: 1FM232-150
Design Small and Deliver BIG—2.5-Inch Nearline Drive
- Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
- Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
- Third-generation, enterprise-class reliability for 24x7 environmental robustness.
- Highest efficiency for over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
- Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
- Lowest enterprise operation power and enhanced PowerChoice™ options for additional power savings during idle periods.
Best-Fit Applications
- Storage-hungry business applications.
- Storage area networks (SAN) and network attached storage (NAS)
- Maximum-capacity entry-level servers and blade servers
- Rich media content storage
- Enterprise backup and restore—D2D, virtual tape
- Cloud computing
Compatibility
This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard Drive) SAS drive.
Specifications
| Drive Model | ST2000NX0373 |
|---|---|
| Dell Part Number | GH86F 0GH86F |
| Capacity | 2TB/2000GB |
| Interface | SAS 12Gbps |
| Self-Encrypted Drive | No |
| Features | |
| PowerChoice™ on-demand power option | Yes |
| Protection Information | Yes |
| Low Halogen | Yes |
| RAID Rebuild™ | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.4 million |
| Reliability Rating @ Full 24x7 operation (AFR) | 0.63% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 |
| Bytes per Sector | 4K |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Cache Buffer, Multisegmented (MB) | 128 |
| Interface Acces Speed (Gb/s) | 12.0 |
| Max. Sustained Transfer Rate (MB/s) | 136 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| RV Tolerance(rad/s to 1800Hz) | 16 |
| Power Management | |
| Idle Power (W) | 3.53 |
| Typical Operating, Random Read (W) | 6.02 |
| PowerChoice™ Technology (Standby) (W) | 1.52 |
| Power Supply Requirements | +12V and +5V |
| Enviromental | |
| Temperature, Operating (˚C) | 5 to 55 |
| Vibration, Operating, 5Hz to 500Hz (Gs) | 0.5 |
| Vibration, NonOperation, 5Hz to 500Hz (Gs) | 3.0 |
| Shock, Operating, 2ms (Gs) | 25 |
| Shock, Nonoperating, 2ms (Gs) | 400 |
| Acoustics, Typical Idle (bels) | 2.8 |
| Acoustics, Typical Seek (bels) | 3.2 |
| Physical | |
| Height (in/mm) | 0.591/15.00 |
| Width (in/mm) | 2.760/70.10 |
| Depth (in/mm) | 3.955/100.45 |
| Weight (lb/g) | 0.437/198 |
ROHS Compliant
Alternate MPNs: GH86F 0GH86F 1FM232-150
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
