KIOXIA Part #/MPN: KPM6XMUG800G
DiscTech Item #: KIO-KPM6XMUG800G-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2450 MB/s
Average Seek Time: 595K/115K
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Write Intensive
Voltage: 12V

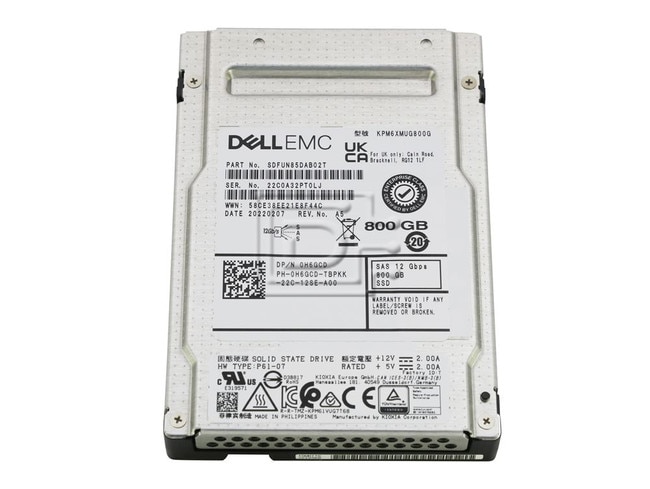

Dell H6GCD / Kioxia PM6-M Series KPM6XMUG800G 800GB WI 12Gbps SIE SAS SSD - Brand New
Dell Enterprise H6GCD / Kioxia PM6-M Series KPM6XMUG800G / SDFUN85DAB02T 800GB WI / Write Intensive / 10-DWPD SIE / Sanitize Instant Erase 12Gb/s SAS / Serial Attached SCSI SFF / Small Form Factor SSD / Solid State Drive - Brand New
PM6 Series Enterprise Write Intensive SSD
PM6-M Series 24G SAS Enterprise SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The series is designed to deliver high levels of performance, quality and reliability for mission critical, hyperscale and virtualized environments.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASHTM 3D flash memory, this 6th generation enterprise SAS SSD PM6-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB.
Further features include power-loss protection and full data path protection. Each model is also available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
Key Features
- Up to 3.2TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- Up to 595k IOPS random read (4KiB) in dual port mode
- 2.5-Inch Form-Factor, 15mm Z-Height
- 10 DWPD with 100% Random Write Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Self-Encrypting (SED) Option
Key Applications
- Mission critical enterprise workloads
- Hyperscale and virtualized environments
- Online transaction processing (OLTP)
- E-commerce
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS large capacity (>2TB) drives.
| Enterprise Value Endurance SSD | |
|---|---|
| Model Number | KPM6XMUG800G |
| Basic Specifications | |
| Interface | 24G SAS |
| Interface Speed | 22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | TLC |
| Formatted Capacity | 800GB |
| Sustained 128KiB Sequential Read | 4,150 MB/s |
| Sustained 128KiB Sequential Write | 2,700 MB/s |
| Sustained 4KiB Random Read | 595,000 IOPS |
| Sustained 4KiB Random Write | 466,000 IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 10 |
| Power Requirements | |
| Supply Voltage | 5 V + 10% / -7% | 12 V ± 10% |
| Power Consumption (Operating) | 5W Typ. |
| Dimensions | |
| Height | 15.0 mm + 0 , -0.5 mm |
| Width | 69.85 ± 0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Environmental | |
| Temperature (Operating) | 0 to 70 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: H6GCD 0H6GCD SDFUN85DAB01T SDFUN85DAB02T
