KIOXIA Part #/MPN: KPM5XRUG960G
DiscTech Item #: KIO-KPM5XRUG960G-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 1900/850
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

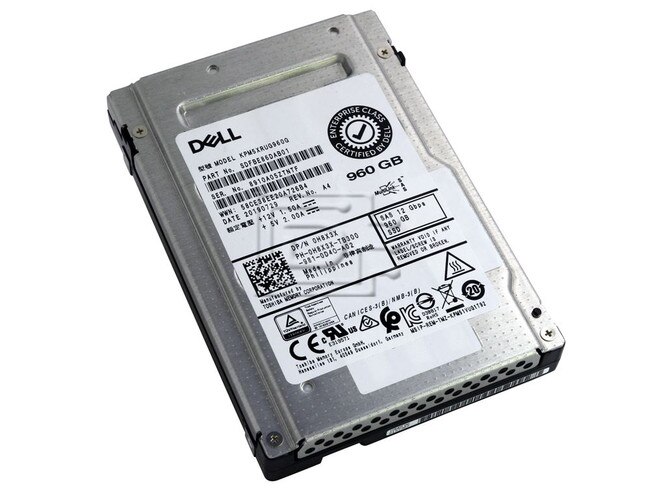

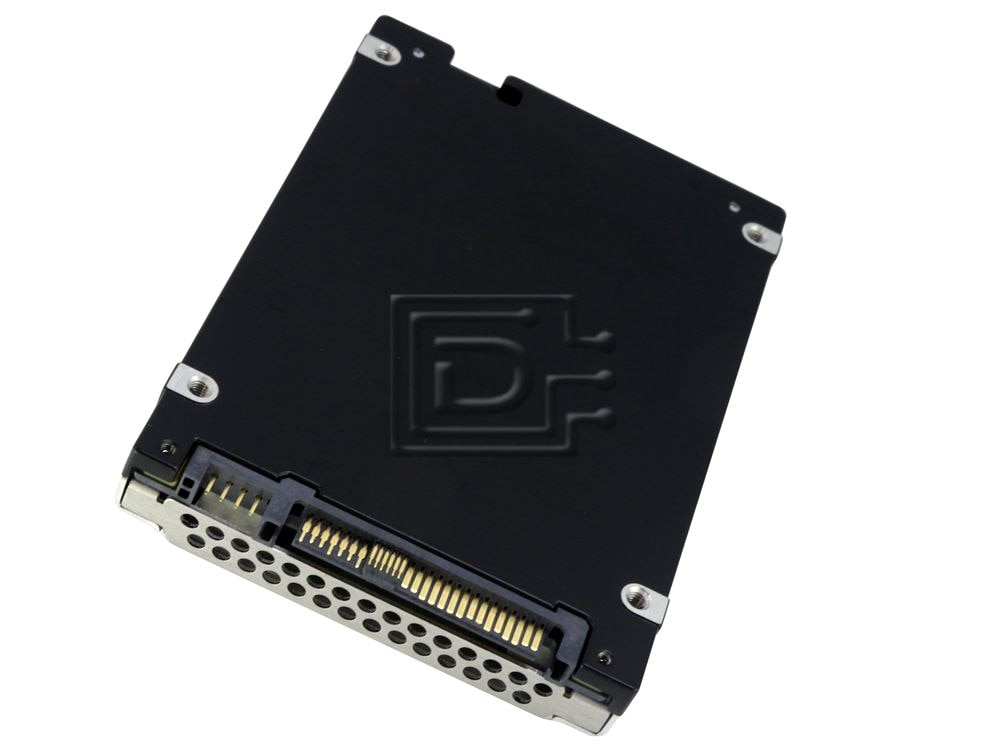

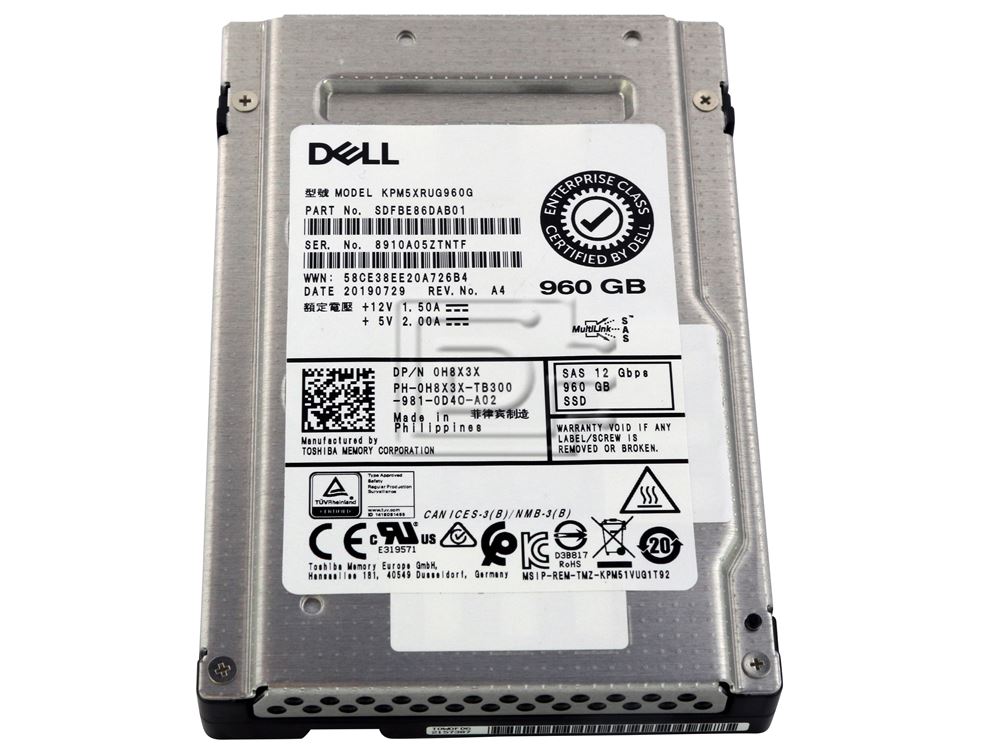

Dell H8X3X / Toshiba KPM5XRUG960G 960GB 2.5 SFF 12Gbps RI SAS Solid State Drive - Brand New OEM
Dell H8X3X / Toshiba KPM5XRUG960G 960GB 2.5 SFF 12Gbps RI SAS Solid State Drive
KIOXIA
PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 30.72 TB.
Key Features
12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
Capacities from 480 GB to 30.72 TB
T10 Multi-Stream Write support
Up to 385 K random read IOPS (4 KiB) in dual port mode
2.5-type form factor, 15 mm Z-height
1 DWPD with 100 % Random Write Workload
Power loss protection and end-to-end data protection, including T10 DIF
Pin-3 power disable support
Sanitize Instant Erase (SIE) *option
Self-Encrypting (SED) *option
Self-Encrypting (SED) with FIPS certification *option
Key Applications
Media streaming
Data warehousing
Web servers
Video on demand (VOD)
* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.
* SED drive is conformed to TCG enterprise SSC.
* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.
Compatibility:
This drive is compatible with laptops that accept 2.5" x 15mm SFF 12Gb/s SAS drives.
| Toshiba / Kioxia Enterprise Read Intensive SSD | |
|---|---|
| Model Number | KPM5XRUG960G H8X3X 0H8X3X |
| Capacity | 1.92TB / 1920 GB |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | TLC |
| Sustained 64KiB Sequential Read | 2100 MiB/s |
| Sustained 64KiB Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read | 340,000 IOPS |
| Sustained 4KiB Random Write | 55,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 3 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature ( Operating ) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: H8X3X 0H8X3X
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
