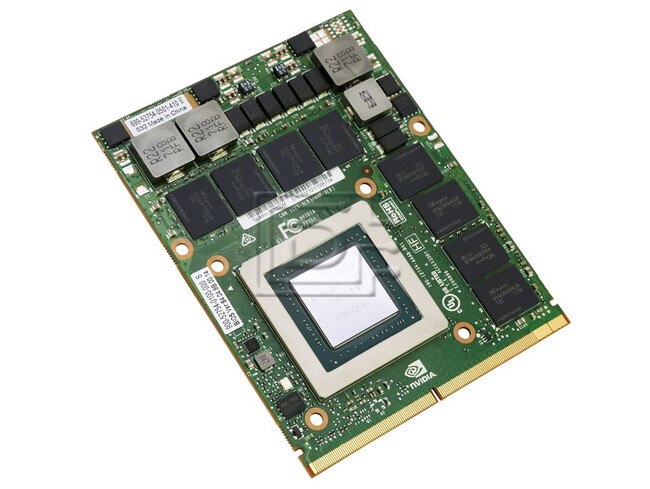

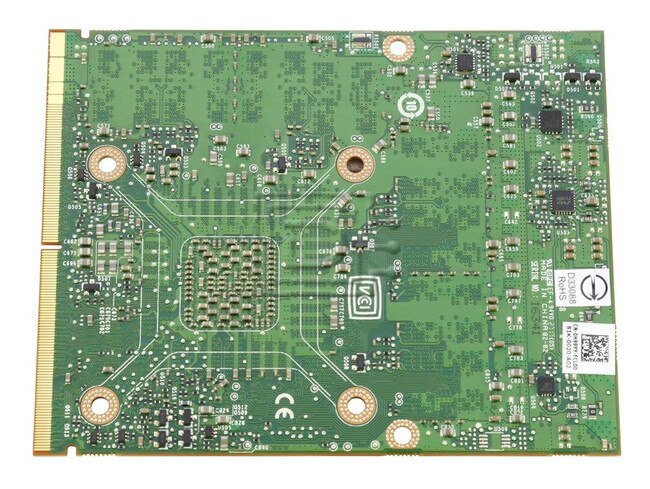

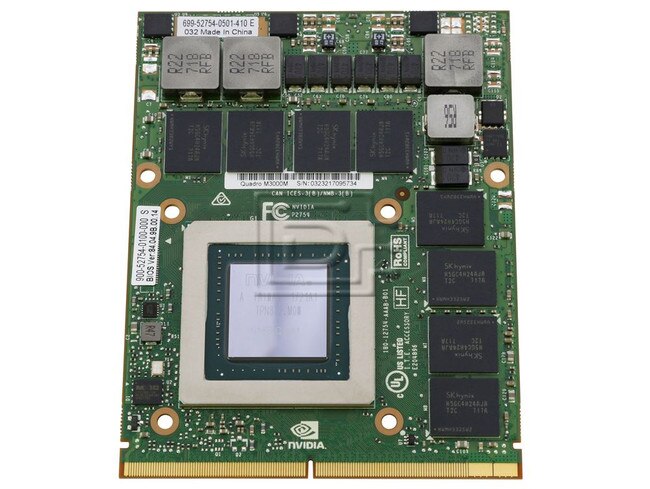

Dell H99YY NVIDIA Quadro M3000M N16P-Q3-A2 4GB GDDR5 GPU

NVIDIA Part #/MPN: M3000M

DiscTech Item #: NVI-M3000M-BN-OE-DEL


Interface Types: DisplayPort

Electrical Interface: HDMI 1.4 - 10Gbps

On-Board Cache: 4GB

Dell H99YY NVIDIA Quadro M3000M N16E-Q1-A1 4GB Video Card GPU - Brand New

Dell H99YY NVIDIA Quadro M3000M N16E-Q1-A1 4GB GDDR5 Video Card Graphics Processing Unit GPU for Precision 7710 - Brand New


This product is compatible with the following laptops:

Dell Precision 7710Dell Precision 7720

NVIDIA Quadro M3000M
Graphics Processor
GPU NameGM204
GPU VariantN16E-Q1-A1
ArchitectureMaxwell 2.0
Process Size28 nm
Transistors5,200 million
Die Size398 mm²
Memory Size4 GB
Memory TypeGDDR5
Memory Bus256 bit
Bandwidth160.4 GB/s
Graphics Features
DirectX12 (12_1)
Shader Model6.4
Mobile Graphics
Release DateAug 18th, 2015
GenerationQuadro Mobile(Mx000M)
Bus InterfacePCIe 3.0 x16
Clock Speeds
GPU Clock1050 MHz
Memory Clock1253 MHz

ROHS Compliant

Alternate MPNs: N16E-Q1-A1 H99YY 0H99YY

Weight: 3 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
