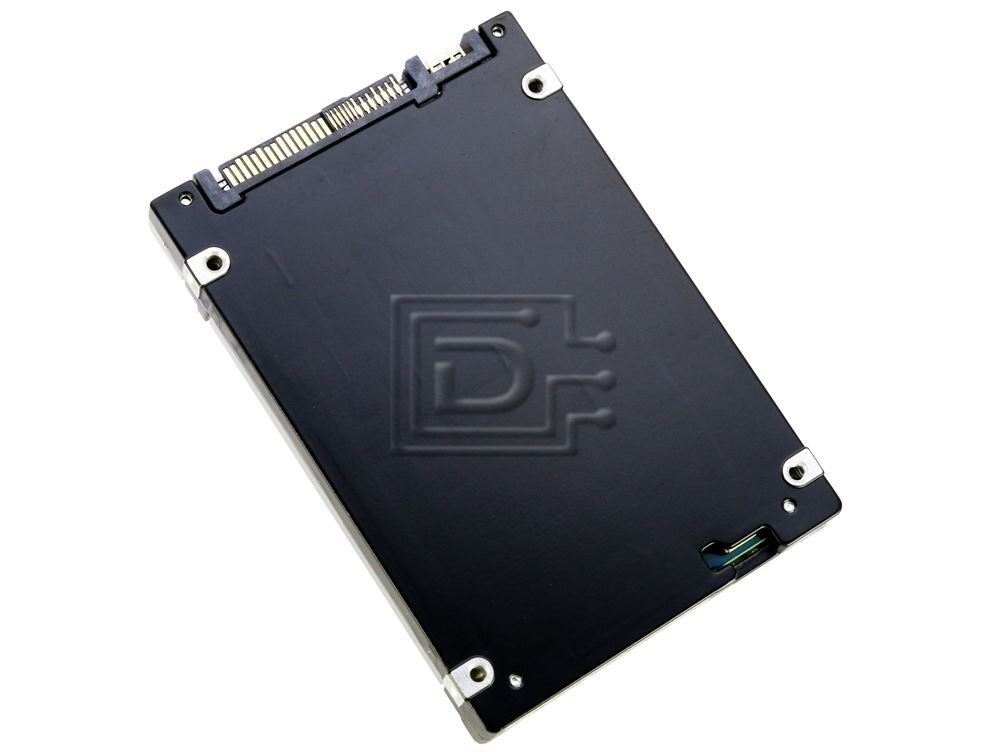

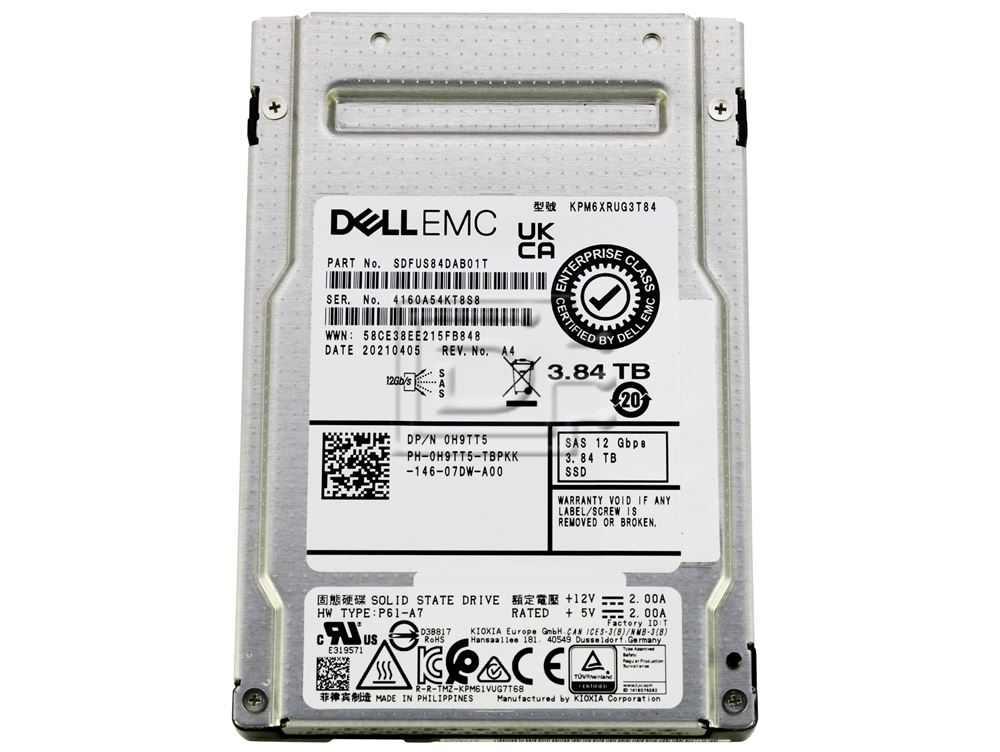

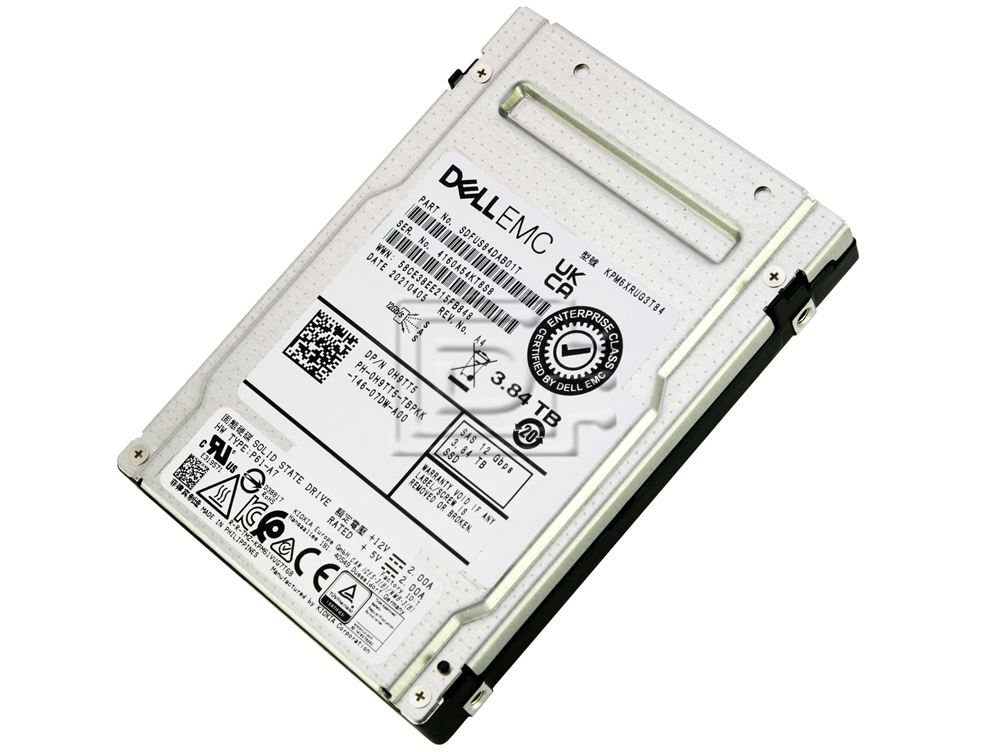

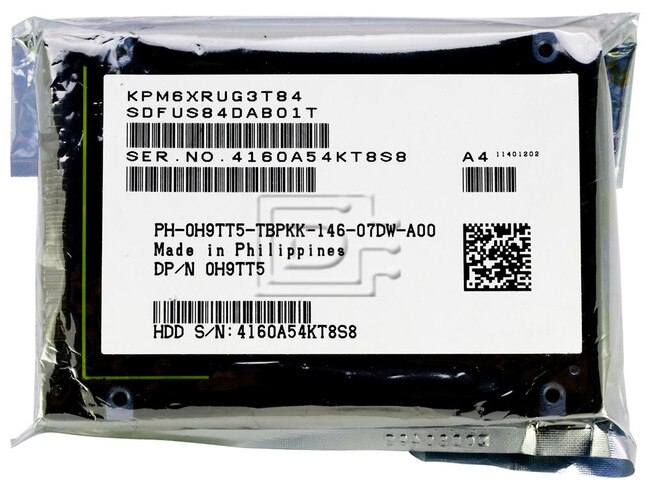

Dell Enterprise H9TT5 / Kioxia KPM6XRUG3T84 PM6-R Series 3.84TB RI SIE 12Gbps SAS SFF SSD

KIOXIA Part #/MPN: KPM6XRUG3T84

DiscTech Item #: KIO-KPM6XRUG3T84-BN-OE-DEL

$2,149.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$2,149.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2450 MB/s

Average Seek Time: 595K/115K

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Voltage: 12V

Dell Enterprise H9TT5 / Kioxia KPM6XRUG3T84 PM6-R Series 3.84TB RI SIE 12Gbps SAS SFF SSD - Brand New

Dell Enterprise H9TT5 / Kioxia KPM6XRUG3T84 PM6-R Series 3.84TB / 3840GB RI / Read Intensive / 1-DWPD SIE / Sanitize INstant Erase 12Gb/s SAS / Serial Attached SCSI SFF / Small Form Factor SSD / Solid State Drive - Brand New

PM6 Series Enterprise Read Intensive SSD

PM6 12Gbps enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand.

The PM6 Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Further features include power-loss protection and full data path protection. Each model is also available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Endurance series supports 1 DWPD (Drive Writes Per Day) and is designed for read-intensive applications such as media streaming, data warehousing and web servers.

Key Features

  • Up to 7.68TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • Up to 385k IOPS random read (4KiB) in dual port mode
  • 2.5-Inch Form-Factor, 15mm Z-Height
  • 1 DWPD with 100% Random Write Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option

Key Applications

  • Media Streaming
  • Data Warehousing
  • Web Servers

Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS large capacity (>2TB) drives.

Enterprise Value Endurance SSD
Model NumberKPM6XRUG3T84
Basic Specifications
Interface24G SAS
Interface Speed22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeTLC
Formatted Capacity3.84 TB / 3,840GB
Sustained 128KiB Sequential Read4,150 MB/s
Sustained 128KiB Sequential Write 2,450 MB/s
Sustained 4KiB Random Read595,000 IOPS
Sustained 4KiB Random Write115,000 IOPS
Reliability
MTTF2,500,000 hours
DWPD1
Power Requirements
Supply Voltage5 V +10% / -7 % , 12 V ±10 %
Power Consumption (Operating)5W Typ.
Dimensions
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Enviromental
Temperature (Operating)0 to 70 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (5 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SDFUS84DAB01T H9TT5 0H9TT5

Weight: 0.7 lb

Warranty: 1 Year DiscTech
