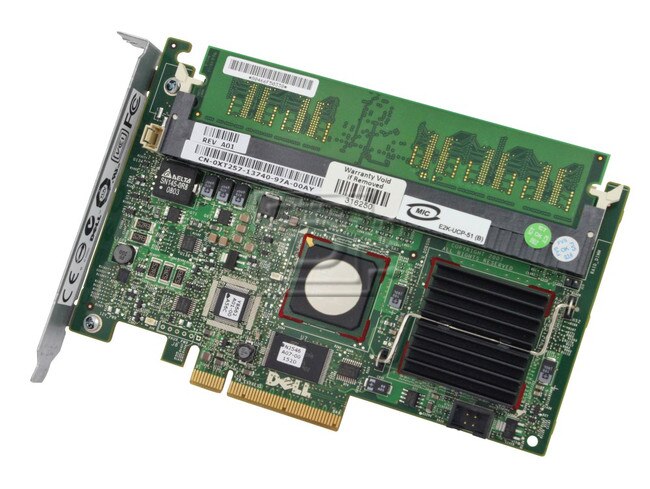

Dell HG129 PERC 5i 5/i SAS / Serial Attached SCSI RAID Controller

Dell Part #/MPN: 341-3742

DiscTech Item #: DEL-341-3742-BN-OE


Interface Types: SAS Serial Attached SCSI, PCIe, SFF-8484

On-Board Cache: 256MB

Bays/Ports/Slots: 8

Dell PERC 5i 5/i Four Channel SAS / Serial Attached SCSI RAID Controller, PCI Express HG129 / MN985 / PY331 / 341-3742 / 341-4366 2x SFF-8484 - Brand New

PERC 5/i is a PCI Express based Serial Attached SCSI RAID controller that provides enterprise class protection and performance for your Dell Precision workstation. With support for RAID levels 0, 1, 5, 10, and 50 PERC 5/i provides multiple protection options to suit a wide range of applications and non-critical data. It uses 3 Gbps SAS technology, which can deliver nearly four times the bandwidth of 320 MBps SCSI. PERC 5/i SAS connectors contain four SAS ports each for a total bandwidth of up to 12 Gbps, or 1200 MBps per connector. It also includes a powerful Intel® IOP333 processor with XScale® Microarchitecture, 256 MB of DDR2 memory for read and write cache. This product has been tested and validated on Dell systems to ensure it will work with your computer. It is supported by Dell Technical Support when used with a Dell system.

This controller has two SFF-8484 internal connectors.

Alt DPN's: MN985 MX961 XT257 WX072

Cache / Buffer Size256 MB
Interface Typex8 PCI Express
ProcessorIntel® IOP333
Channel Qty8
Device TypeSerial Attached SCSI Raid Controller Card
Port(s) Total (Free) / Connector Type2x SFF-8484  Connectors
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Click here to view the manufacturer's item description/brochure

Alternate MPNs: MN985 0MN985 MX961 0MX961 XT257 0XT257 WX072 0WX072 HG129 0HG129 PY331 341-3742 341-4366

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New
