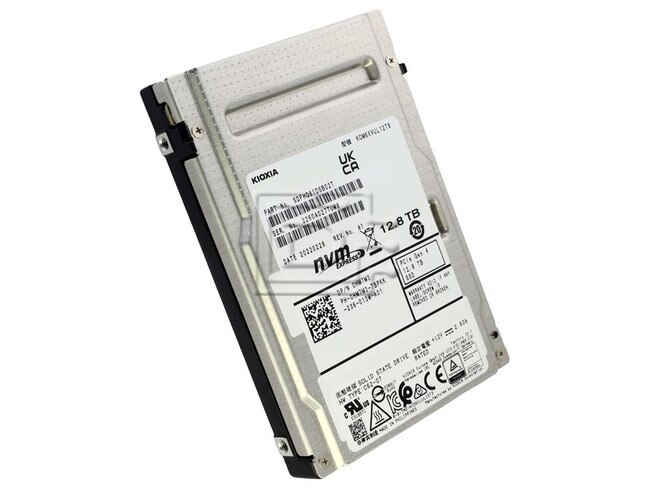

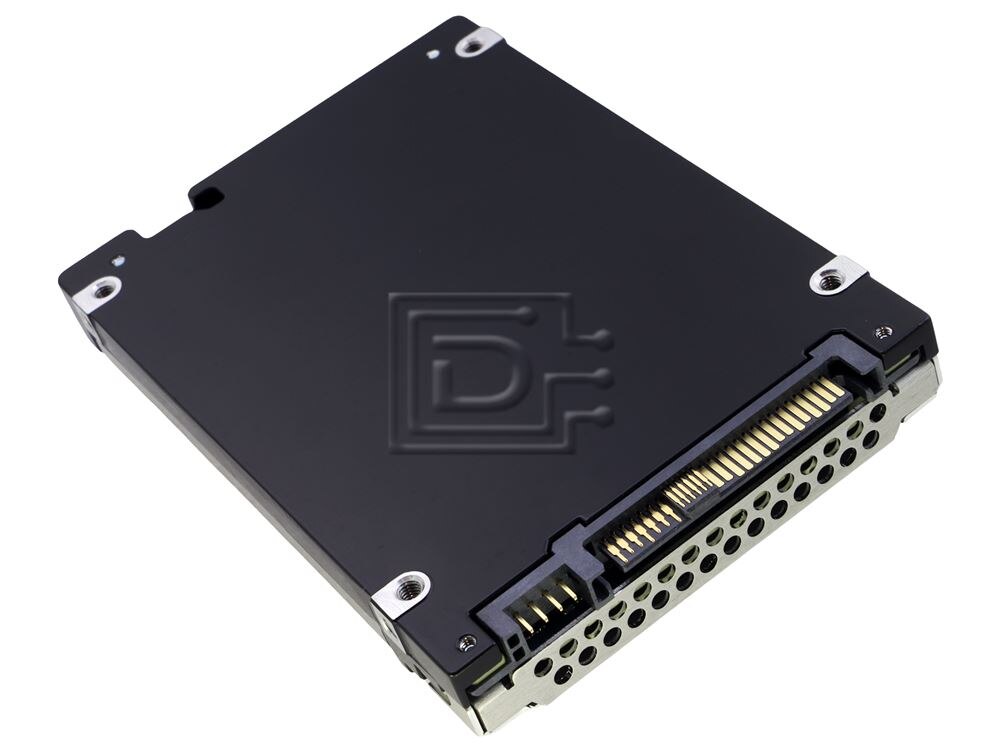

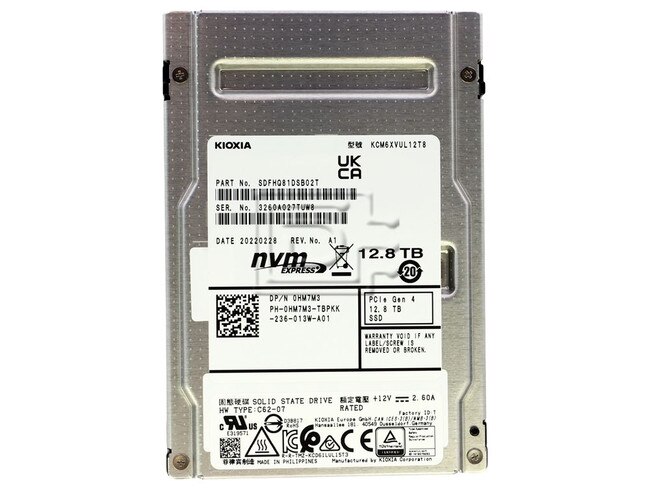

Dell HM7M3 Kioxia KCM6XVUL12T8 12.8TB TLC PCI Express 4.0 x4 NVMe Mixed Use U.3 2.5-inch CM6-V Series Internal Solid State Drive SSD

$2,199.00

Dell HM7M3 Kioxia KCM6XVUL12T8 12.8TB TLC PCI Express 4.0 x4 NVMe Mixed Use U.3 2.5-inch CM6-V Series Internal Solid State Drive SSD - Brand New

Compatibility:

This drive is compatible with servers and arrays that accept 2.5” 15mm U.2 SFF PCIe NVMe 4.0 drives

Capacity	12,800 GB	6,400 GB	3,200 GB	1,600 GB	800 GB
Performance (Up to)
Sustained 128 KiB Sequential Read	6,900 MB/s	6,900 MB/s	6,900 MB/s	6,900 MB/s	6,900 MB/s
Sustained 128 KiB Sequential Write	4,000 MB/s	4,200 MB/s	2,800 MB/s	1,400 MB/s	1,400 MB/s
Sustained 4 KiB Random Read	1,400K IOPS	1,300K IOPS	880K IOPS	880K IOPS	880K IOPS
Sustained 4 KiB Random Write	325K IOPS	350K IOPS	215K IOPS	100K IOPS	100K IOPS
Power Requirements
Supply Voltage	12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active)	21 W typ.	20 W typ.	19 W typ.	16 W typ.	14 W typ.
Power Consumption (Ready)	5 W typ.
Reliability
MTTF	2,500,000 hours
Warranty	5 years
DWPD	3
Dimensions
Thickness	15.0 mm +0 / -0.5 mm
Width	69.85 mm ± 0.25 mm
Length	100.45 mm Max
Weight	130 g Max
Environmental
Temperature (Operating)	0 °C to 70 °C
Temperature (Non-operating)	-40 °C to 85 °C
Humidity (Operating)	5 % to 95 % R.H.
Vibration (Operating)	21.27 m/s² { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating)	9.8 km/s² { 1,000 G } ( 0.5 ms )

ROHS Compliant

Alternate MPNs: HM7M3 0HM7M3

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

1 Year DiscTech Warranty
