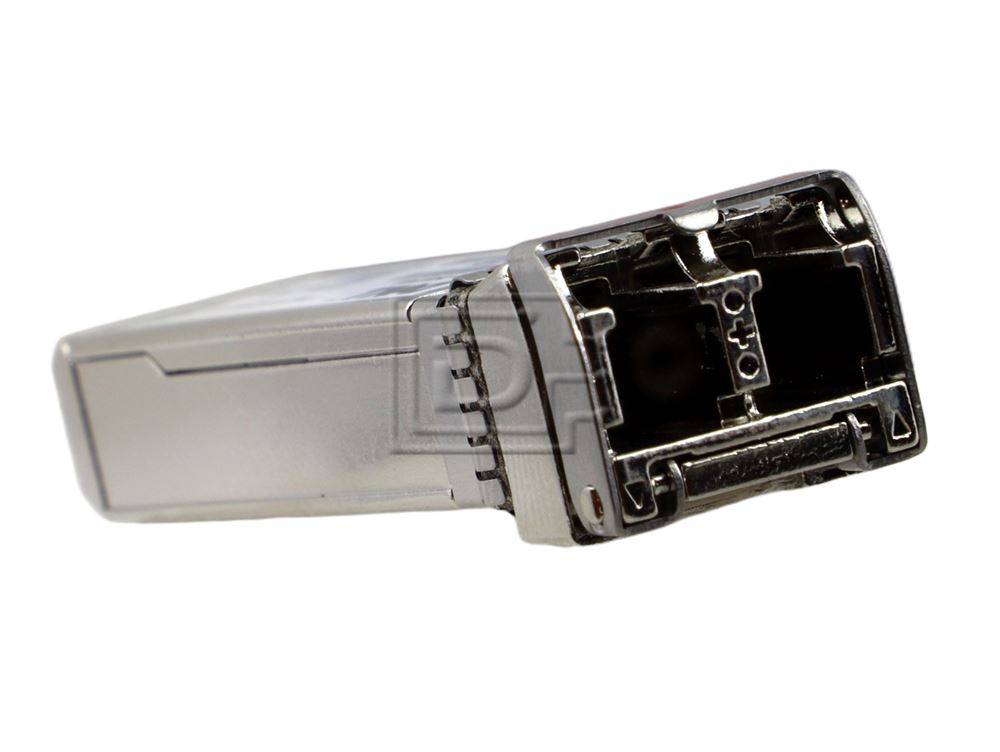

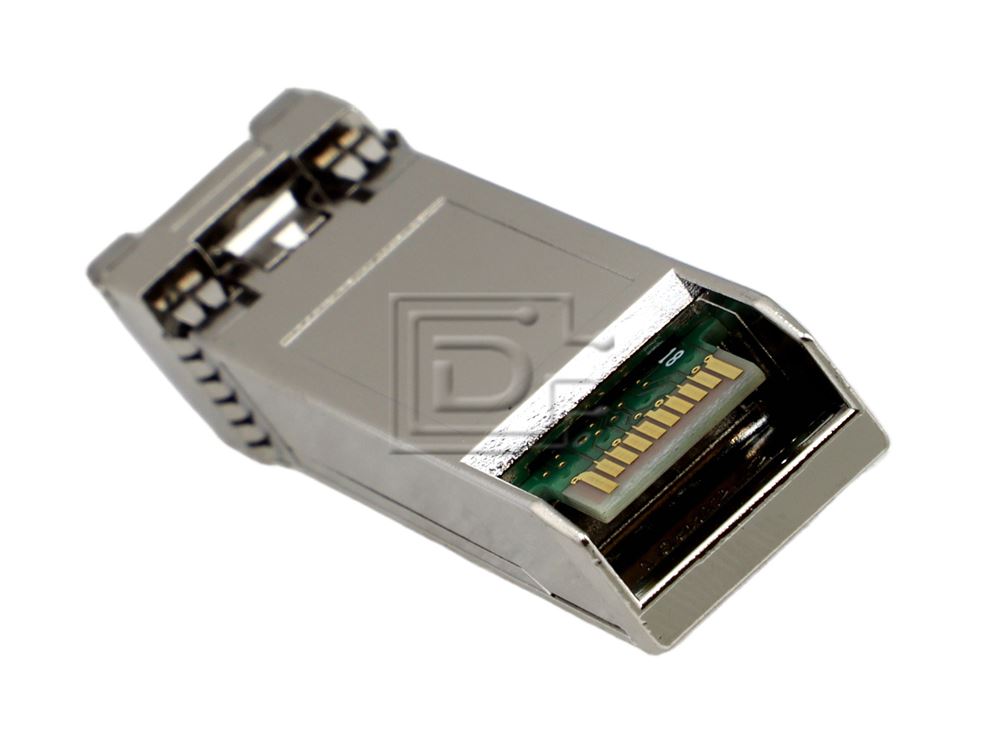

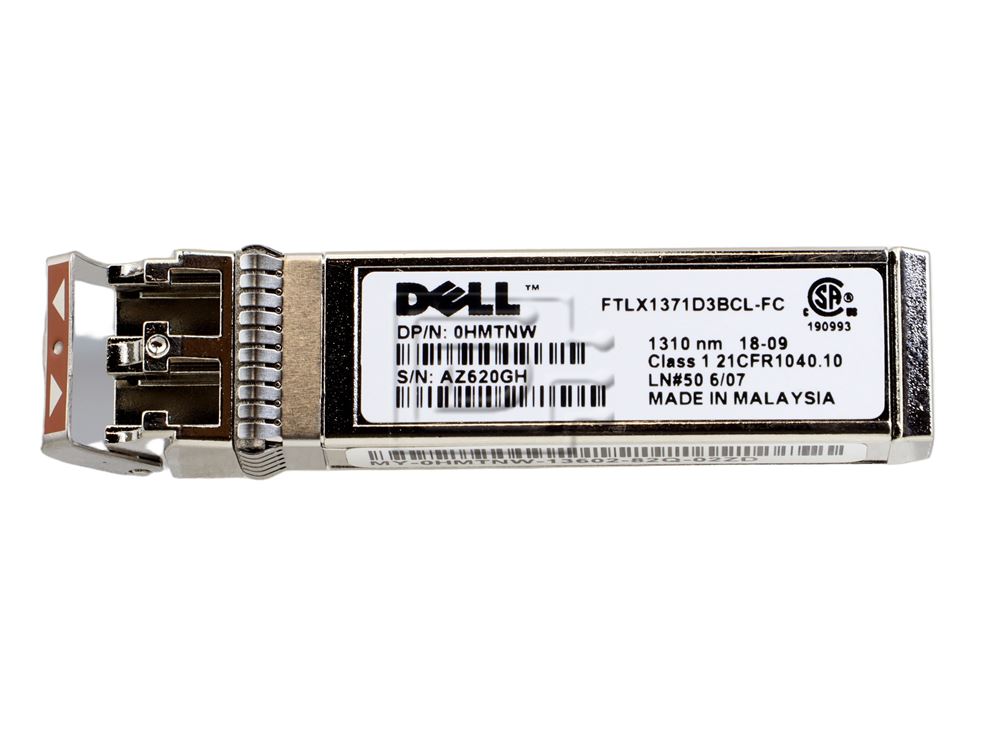

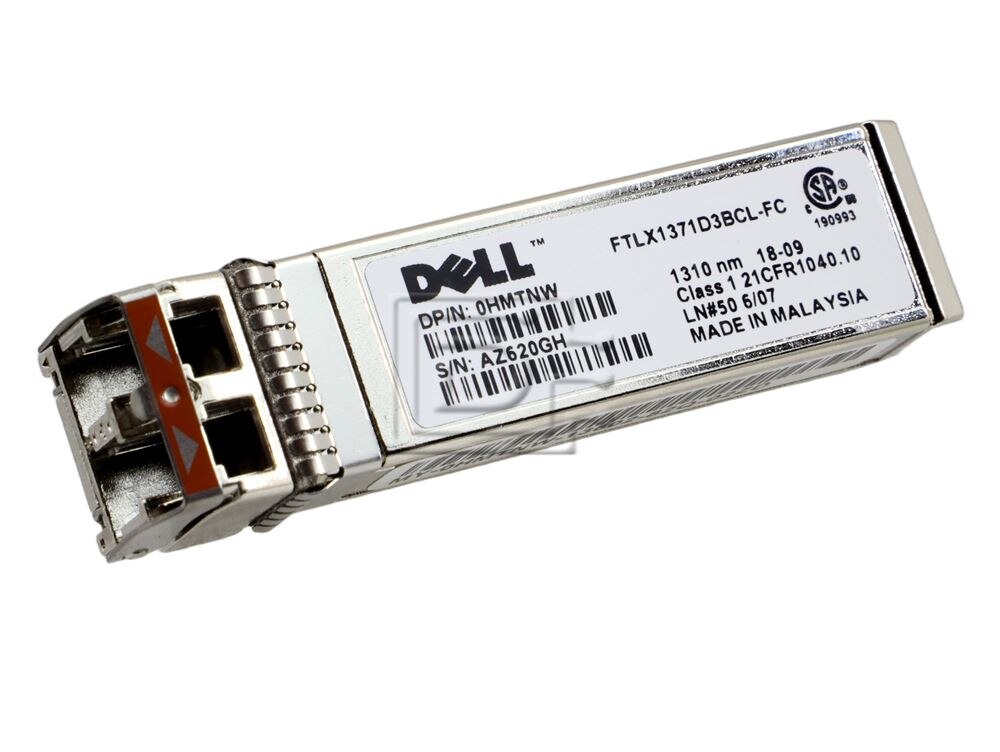

Dell HMTNW 0HMTNW FINISAR FTLX1371D3BCL-FC 10Gb/s 10GBase-LRM Multi-Mode Fibre 1310nm 220m Duplex LC Connector SFP+ Transceiver Module

Brand New
In Stock:24
Need more?
1 Year DiscTechWarranty

$79.00

Interface Types:	SFP
Electrical Interface:	Ethernet 10Gigabit - 10Gbps
Voltage:	3.3V

Description

Dell HMTNW 0HMTNW FINISAR FTLX1371D3BCL-FC 10Gb/s 10GBase-LRM Multi-Mode Fibre 1310nm 220m Duplex LC Connector SFP+ Transceiver Module - Brand New

Dell Part 10GbE SFP+ High Temperature Transceiver:

The Dell™ SFP+ SR transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking SFP+ SR transceiver provides 10 GbE-1 GbE connectivity.

Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.

Product Features

Hot-pluggable SFP+ footprint
Supports 9.95 to 10.5 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Commercial temperature range 0°C to 70°C
Single 3.3Vpower supply
Maximum link length of 300m on 2000 MHZ-km MMF
Uncooled 1310nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C

Compatibility

Designed For

PowerEdge 2970, R420, R620, R715, T430, T710; PowerEdge FC640, M640, R430, R440, R530, R540, R630, R640, R6415, R730, R740, R740xd, R7415, R7425, R940, T440, T640

Specifications

10Gb/s 1310nm Multimode Datacom SFP+ Transceiver
PARAMETER
ELECTRICAL TRANSMITTER
ELECTRICAL RECEIVER
OPTICAL TRANSMITTER
OPTICAL RECEIVER
GENERAL SPECIFICATION
ENVIROMENTAL SPECIFICATION
DIGITAL DIAGNOSTIC ACCURACY
DIGITAL DIAGNOSTIC DYNAMIC RANGE FOR RATED ACCURACY
DIGITAL DIAGNOSTIC MAX REPORTING RANGE
Model Number	FINISAR FTLX1371D3BCL-FC Dell 0HMTNW / HMTNW
Maximum Supply Voltage	Symbol: Vcc Min: -0.5 Max: 4.0 Unit: V
Storage Temperature	Symbol: Ts Min: -40 Max: 85 Unit: °C
Case Temperature	Symbol: TA Min: 0 Max: 70 Unit: °C
Relative Humidity	Symbol: RH Min: 0 Max: 85 Unit: % Ref: 1
Supply Voltage	Symbol: Vcc Min: 3.14 Max: 3.46 Unit: V
Supply Current	Symbol: Icc Max: 250 Unit: V
Input differential impedance	Symbol: Rin Typ: 100 Unit: Ω Ref: 1
Differential data input swing	Symbol: Vinn,pp Min: 180 Max: 700 Unit: mV
Transmit Disable Voltage	Symbol: VD Min: 2 Max: Vcc Unit: V
Transmit Enable Voltage	Symbol: Ven Min: Vee Max: Vee+0.8 Unit: V
Differential data output swing	Symbol: Vout,pp Min: 300 Max: 850 Unit: mV Ref: 2.6
Data output rise time, fall time	Symbol: tr Min: 28 Unit : ps Ref: 3
LOS Fault	Symbol: V LOS fault Min: 2 Max: VccHOST Unit: V Ref: 4
LOS Normal	Symbol: V LOS norm Min: Vee Max: Vee+0.8 Unit: V Ref: 4
Power Supply Noise Tolerance	Symbol: VccT/VccR Min, Typ, Max: Per SFF-8431 Rev 3.0 Unit: mVpp Ref: 5
Optical Modulation Amplitude (OMA)	Symbol: POMA Typ: -1.5 Unit: dBm Ref: 1
Average Launch Power	Symbol: PAVE Min: -5 Max: -1 Unit: dBm Ref: 2
Optical Wavelength	Symbol: λ Min: 840 Typ: 850 Max: 860 Unit: nm
RMS Spectral Width	Symbol: Δλrms Max: 0.45 Unit: dBm
Optical Extinction Ratio	Symbol: ER Min: 3. Max: 5.5 Unit: dB
Transmitter and Dispersion Penalty	Symbol: TDP Max: 3.9 Unit: dB
Average Launch power of OFF transmitter	Symbol: POFF Max: -30 Unit: dB
Tx Jitter	Symbol: Txj Min, Typ, Max : Per IEEE 802.3ae requirements
Relative Intensity Noise	Symbol: RIN12OMA Max: -128 Unit: dB/Hz
Receiver Sensitivity (OMA) = 10.3 Gb/s	Symbol: RxSENS1 Max: -11.1 Unit: dBm
Stressed Receiver Sensitivity (OMA) = 10.3 Gb/s	Symbol: RxSENS2 Max: -7.5 Unit: dBm
Receiver OMA Sensitivity = 14.025 Gb/s	Symbol: RxSENS Max: Vee+0.8 Unit: V
Maximum Input Power	Symbol: PMAX Min: +0.5 Unit: dBm
Wavelength Range	Symbol: λC Min: 840 Max: 860 Unit: nm
Receiver Reflectance	Symbol: Rrx Max: 012 Unit: dB
LOS De-Assert	Symbol: LOSD Max: -14 Unit: dBm
LOS Assert	Symbol: LOSA Min: -30 Typ: -23 Unit: dBm
LOS Hysteresis	Min: 0.5 Unit: dB
Bit Rate	Symbol: BR Min: 9.95 Max: 10.5 Unit: Gb/sec Ref: 1
Bit Error Ratio	Symbol: BER Max: 10^-12 Ref: 2
Fiber Type 850nm OFL Bandwidth
Maximum support distances Fiber type 62.5µm	160 MHz-km Symbol: Lmax Max: 26 unit: m OM1 200 Mhz-km Symbol: Lmax Max 33 unit: m
Maximum support distances Fiber type 50 µm	400 MHz-km Symbol: Lmax Max: 66 unit: m
Case Operating Temperature	Symbol: Top Min: 0 Max: 70 Unit: °C
Storage Temperature	Symbol: Tsto Min: -40 Max: 85 Unit: °C
Internally measured transceiver temperature	Symbol: DDTemperature Min: -3 Max: 3 Unit: °C
Internally measured transceiver supply voltage	Symbol: DDVoltage Min: -100 Max: 100 Unit: mV
Measured TX bias current	Symbol: DDBias Min: -10 Max: 10 Unit: % Ref: 1
Measured TX output power	Symbol: DDTx-Power Min: -2 Max: 2 Unit: dB
Measured RX received average optical power	Symbol: DDRx-Power Min: -2 Max: 2 Unit: dB
Internally measured transceiver temperature	Symbol: DDTemperature Min: 0 Max: 70 Unit: °C
Internally measured transceiver supply voltage	Symbol: DDVoltage Min: 3.14 Max: 3.46 Unit: V
Measured TX bias current	Symbol: DDBias Min: 0 Max: 20 Unit: mA
Measured TX output power	Symbol: DDTx-Power Min: -9 Max: -2.5 Unit: dBm
Measured RX received average optical power	Symbol: DDRx-Power Min: -20 Max: 0 Unit: dBm
Internally measured transceiver temperature	Symbol: DDTemperature Min: -40 Max: 125 Unit: °C
Internally measured transceiver supply voltage	Symbol: DDVoltage Min: 2.8 Max: 4.0 Unit: V
Measured TX bias current	Symbol: DDBias Min: 0 Max: 20 Unit: mA
Measured TX output power	Symbol: DDTx-Power Min: -10 Max: -3 Unit: dBm
Measured RX received average optical power	Symbol: DDRx-Power Min: -22 Max: 0 Unit: dBm

ROHS Compliant

Alternate MPNs: HMTNW 0HMTNW

Weight: 0.5 lb

Warranty: 1 Year DiscTech
