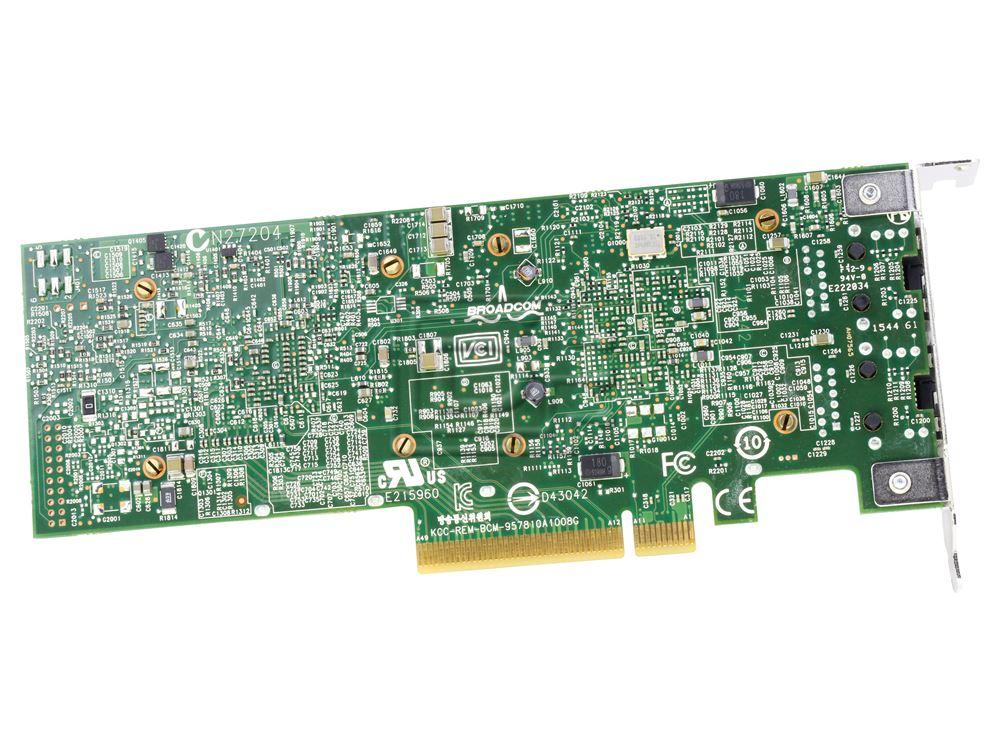

Dell HN10N / QLogic / Broadcom 57810S PCIe LAN Card
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | Ethernet RJ45 |
| Electrical Interface: | Ethernet 10Gigabit - 10Gbps |
Description
Dell HN10N / QLogic / Broadcom 57810S Dual Port 10Gb Ethernet PCIe Standup Base-T CNA Low Profile Network Card Adapter – New Pull
Dell HN10N / 0HN10N / QLogic / Broadcom 57810S Dual Port 10Gb Ethernet PCIe Standup Base-T CNA Low Profile Converged Network Card Adapter – New Pull
Highlights
- Provides PCIe interface
- Features a compact space-saving design
- Ideal for high-performance network applications
Overview
The 10Gb Ethernet PCI-Express® Network Interface Card from Dell™ is ideal for connecting your server to your network. The 10Gb Dual Port Server Adapter proven to be reliable and for standards-based solutions. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
This product is compatible with the following systems:
- PowerEdge R220, R320, R420, R420XR, R430, R520, R530, R620, R630, R715, R720, R720XD, R730, R730xd XL, R815, R820, R830, R910, R920, R930, T420, T430, T620, T630
Compatibility
This product is compatible with the following systems:
| PowerEdge R220 | PowerEdge R320 | PowerEdge R420 | PowerEdge R420XR |
| PowerEdge R430 | PowerEdge R520 | PowerEdge R530 | PowerEdge R620 |
| PowerEdge R630 | PowerEdge R715 | PowerEdge R720 | PowerEdge R720XD |
| PowerEdge R730 | PowerEdge R730xd XL | PowerEdge R815 | PowerEdge R820 |
| Poweredge R830 | PowerEdge R910 | PowerEdge R920 | PowerEdge R930 |
| PowerEdge T420 | PowerEdge T430 | PowerEdge T620 | PowerEdge T630 |
| PowerVault DX6104 CSN | PowerVault DX6112 SN | PowerVault NX3300 | PowerVault NX400 |
Specifications
| Network Interface Card | |
|---|---|
| General | |
| Dell Part# : | HN10N |
| Manufacturer Part# : | 57810S |
| Device Type | Network Adapter |
| Form Factor | Plug-in Card |
| Interface (Bus) Type | PCI Express x8 |
| Ports | Gigabity Ethernet x 2 |
| Cabling Type | Ethernet 10GBase-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 10Gb |
| Data Transfer Rate | 10 Gbps |
| Processor | 1 x BCM57810s - Broadcom |
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Interface | 2 x 10000Base-T - RJ-45 |
ROHS Compliant
Alternate MPNs: 0HN10N 57810S
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
Warranty
1 Year DiscTech Warranty
