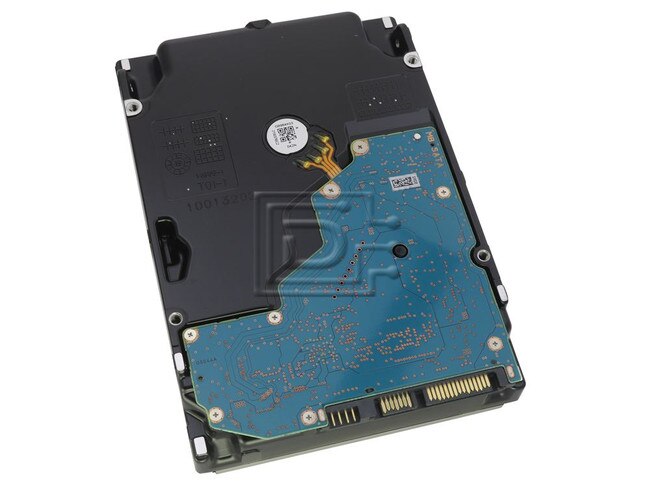

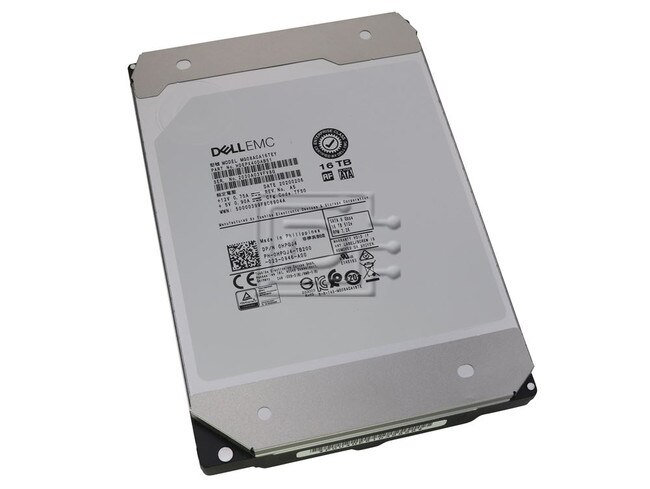

Dell HPGJ4 / Toshiba MG08ACA16TEY 16TB 3.5in LFF 6Gbps 7.2K 512e HDEPX40DAB51 SATA Hard Drive

Toshiba Part #/MPN: MG08ACA16TEY

DiscTech Item #: TOS-MG08ACA16TEY-BN-OE-DEL


$339.99
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$339.99

Enterprise Grade

Capacity: 16TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 512MB

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

Dell HPGJ4 / Toshiba MG08ACA16TEY 16TB 3.5in LFF 6Gbps 7.2K RPM 512e HDEPX40DAB51 Enterprise SATA Hard Drive - Brand New

Dell HPGJ4 / Toshiba MG08ACA16TEY 16TB 3.5in LFF 6Gbps 7.2K RPM 512e HDEPX40DAB51 Enterprise SATA Hard Drive

Dell DP/N 0HPGJ4


MG08 Series
Enterprise Capacity HDD

Using an industry-leading 9-disk design pioneered by Toshiba, the MG08 Series provides 16TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard .5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. Toshiba’s precision industrial laser welding technology is put to use to seal helium inside the 9-disk mechanics. The massive 16TB capacity is delivered using proven CMR recording technology providing optimum application compatibility and data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG08 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Conventional Magnetic Recording (CMR) 16TB for broad compatibility
  • Industry-leading 9-disk helium-sealed design for superior storage density
  • 7,200 rpm Performance
  • 550 Total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events

Application

  • Cloud-scale Sever and Storage Infrastructure
  • Software-defined data center infrastructure
  • File- and Object-based storage infrastructure
  • Tiered Storage Infrastructure
  • Workloads and Use-Cases that Benefit from High Capacity per Spindle
  • Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
  • Compliance Data Life-Cycle Management
  • Data Center Data-Protection and Data Back-up Infrastructure


Compatibility:

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Equivalent to WD161KRYZ , ST16000NM001G

Toshiba MG08
Enterprise Capacity HDD
512 Emulation (512e) Model#MG08ACA16TEY
SPECIFICATIONS
Sector Size512 Emulation (512e)
Form Factor3.5-Inch
InterfaceSATA-3.3
Formatted Capacity16TB / 16,000GB
PerformanceInterface Speed
  • 12.0 Gbit/s
  • 6.0 Gbit/s
  • 3.0Gvit/s
  • 1.5 Gbit/s

  • Rotation Speed
  • 7,200 RPM

  • Buffer Size
  • 512 MiB
  • Logical Data Block LengthMG08xxxxxxE (emulation)
  • Host:512 B, Disk; 4096 B
  • Supply VoltageAllowable Voltage
  • 12 V ± 10% / 5 V + 10% / -7%
  • Power ConsumptionRandom Write / Read 4KB Q1 (Typ)
  • 8.28 W Typ
  • Active Idle (Idle-A)
  • 4.73 W Typ.
  • AcousticsActive Idle (Typ)
  • 20 dB Typ
  • ENVIRONMENTAL LIMITS
    Ambient TemperatureOperating
  • 5°C to 55°C

  • Non-Operating
  • -40°C to 70°C
  • Relative HumidityOperating
  • 5% to 90% R.H. (No condensation)

  • Non-Operating
  • 5% to 95% R.H. (No condensation)
  • AltitudeOperating
  • -305 m to 3,048 m

  • Non-Operating
  • -305 m to 12,192 m
  • ShockOperating
  • 686 m/s {70 G}(2 ms duration)

  • Non-Operating
  • 2,450 m/s {250 G} (2 ms duration)
  • VibrationOperating
  • 7.35 m/s {0.75 G} (5 to 300 Hz
  • 2.45 m/s {0.25 G} (300 to 500 Hz)

  • Non-Operating
  • 29.4 m/s {3.0 G} (5 to 500 Hz)
  • RELIABILITY
    MTTF2,500,000 hours
    Non-recoverable Error Rate10 error per 1016 bits read
    Load / Unload600,000 times
    Availability24 hours/day, 7 days/week
    Ratted Annual Workload (Total TB Transferred per Year, R/W)550 TB per year
    MECHANICAL SPECIFICATIONS
    Width (Max)101.85 mm
    Height (Max)26.1 mm
    Length (Max)147.0 mm
    Weight (Max(Typ))720 g / 1.59 lbs

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: HDEPX40DAB51 HPGJ4 0HPGJ4 MG08ACA16TE

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
