Hitachi Part #/MPN: 1W10016
DiscTech Item #: HIT-1W10016-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 175/184
Average Seek Time: 4.2
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 128MB
Hybrid SSD Cache: 4GB MLC/NAND

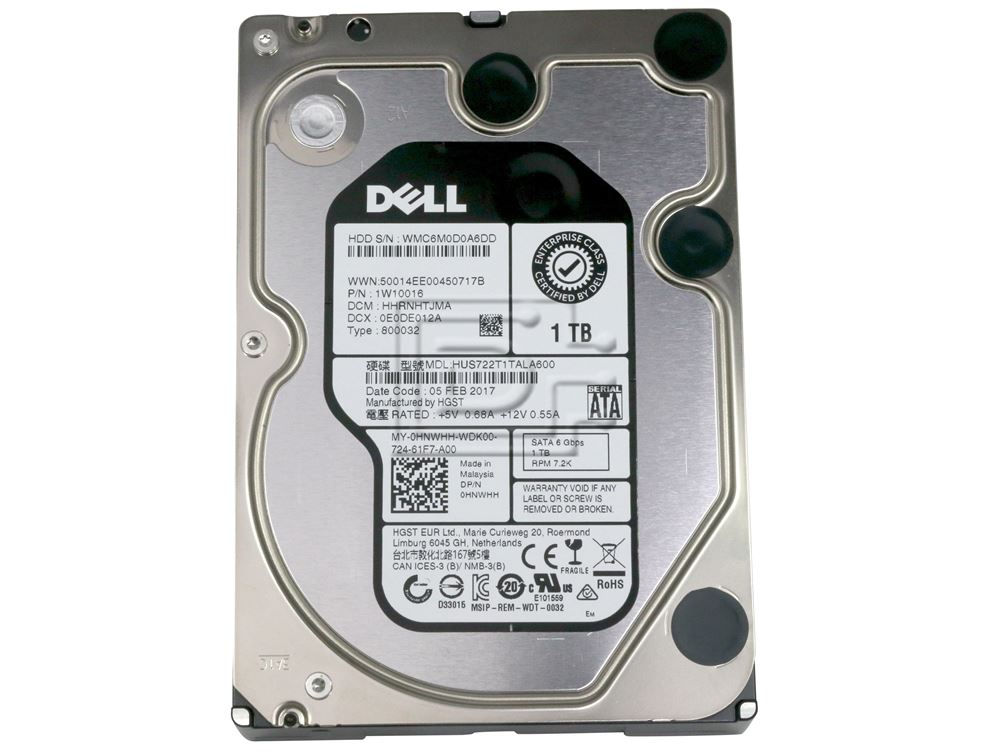

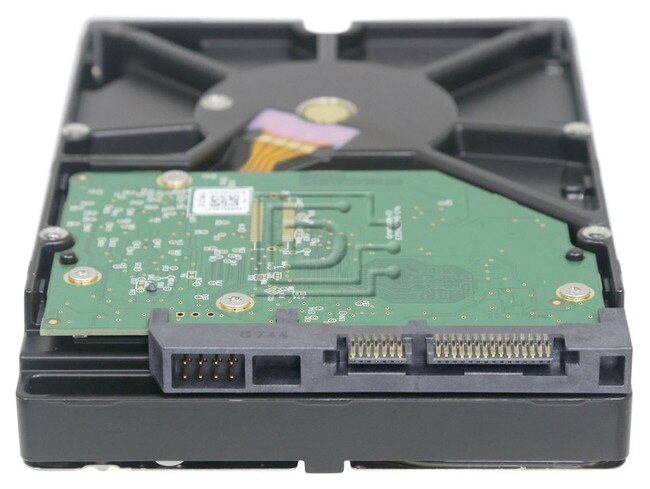

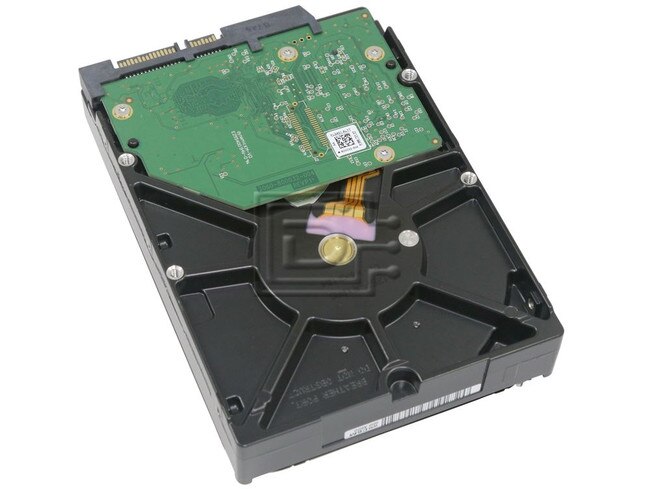

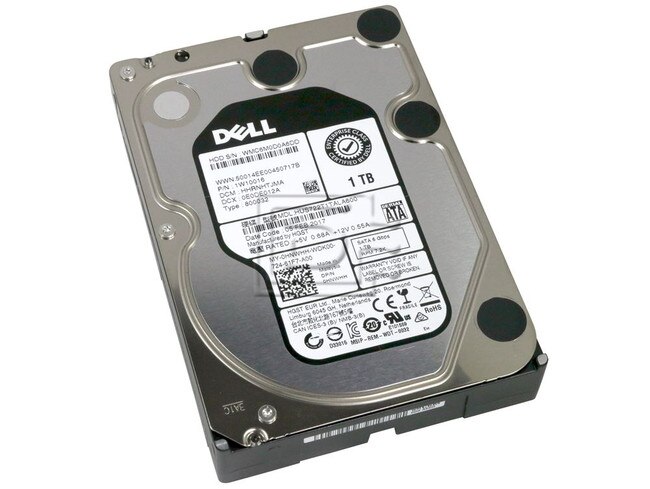

Dell HGST / Hitachi Ultrastar 7K2 1W10016/ HUS722T1TALA600 / Dell HNWHH 1TB 3.5" 6Gbps 7.2K RPM SATA Hard Drive - Refurbished
Dell HNWHH / HGST Ultrastar 7K2 1W10016/ HUS722T1TALA600 / Dell HNWHH 1TB 3.5" 6Gbps 7.2K RPM SATA Hard Drive - Refurbished
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.
| Hitachi Ultrastar 7K2 | |
|---|---|
| Model Number | 1W10016 |
| Alt Model Number | HUS722T1TALA600 |
| Configuration | |
| Interface | SATA 6Gb/s |
| Capacity | 1TB / 1000GB |
| Sector size (variable, bytes/sector) | 512 native (512n) |
| Max. areal density (Gbits/sq. in) | 638 |
| Performance | |
| Data buffer (MB) | 128 |
| Rotational speed (RPM) | 7200 |
| Latency average (ms) | 4.2 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 175/184 |
| Seek time (read/write, ms, typical range) | 8.3 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 10^16 |
| Load/Unload cycles (40°C) | 600,000 |
| MTBF (M hours) | 2.0 |
| Annualized Failure Rate (AFR) | 0.44% |
| Availability (hrs/day x days/wk) | 24x7 |
| Acoustics | |
| Idle (Bels) | 2.8 |
| Power | |
| Requirements | +5V, +12V |
| Operating, (W, typical) | 8.1 |
| Idle (W) | 5.9 |
| Power consumption efficiency at idle (Watts/TB) (Watts/GB) | 5.9 0.0059* |
| Physical | |
| z-height (mm) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 (max) |
| Weight (g, max) | 640 (+/-10%) |
| Environmental (operating) | |
| Ambient temperature | 5o to 55° C |
| Shock (half-sine wave 2ms, read operation) | 65 (2 ms) |
| Vibration, random, no errors (G RMS 5 to 500 Hz) | 1.08 (XYZ) |
| Environmental (non-operating) | |
| Ambient temperature | -40 to 70° C |
| Shock (half-sine wave 2ms, read operation) | 300 (2ms) |
| Vibration, random (G RMS 5 to 500 Hz) | 3.8 (XYZ) |
ROHS Compliant
Alternate MPNs: HUS722T1TALA600 HNWHH 0HNWHH
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
