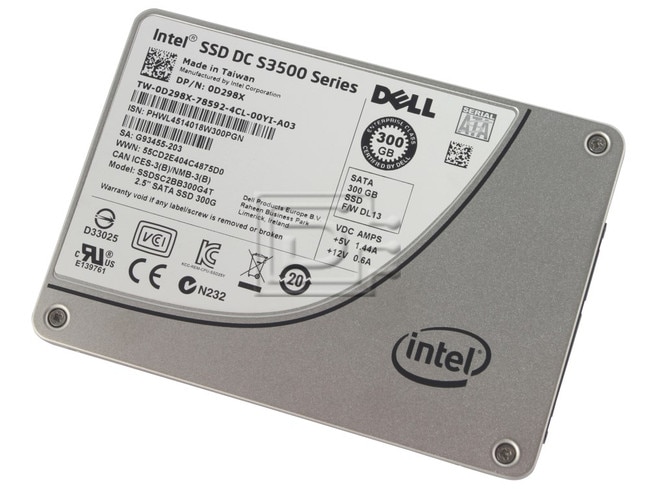

Intel DC S3500 SSDSC2BB300G4T 300GB SATA MLC SSD

INTEL Part #/MPN: SSDSC2BB300G4T

DiscTech Item #: INT-SSDSC2BB300G4T-NP-OE-DEL


$439.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$439.00

Capacity: 300GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 500

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Intel DC S3500 Series SSDSC2BB300G4T 300GB 2.5" 3Gbps SATA MLC SSD - New Pull OEM

Dell Intel DC S3500 Series SSDSC2BB300G4T / D298X 300GB 2.5" 3Gbps SATA MLC SSD - New Pull OEM

Intel® Solid-State Drive Data Center S3500 Series
Premier Performance for the Data Center

The Intel® Solid-State Drive DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50 µs typical (500 µs max for 99.9 percent of the time) along with a tight distribution of up to 75,000 input/output operations per second (IOPS) delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.


DPN: D298X, 0D298X


Compatibility:

This drive is compatible with any server that accepts 2.5"x7mm SATA drives.

Intel® Solid-State Drive DC S3500 Series
Model NumberSSDSC2BB300G4T
Capacity300GB
Components- Intel® 20nm NANDFlash Memory
- Multi-Level Cell (MLC)
Form Factor2.5–inch
Read and Write IOPS (Full LBA Range, IOMeter Queue Depth 32)
- Random 4KB Reads:
- Random 4KB Writes:
- Random 8KB Reads:
- Random 8KB Writes:


- Up to 75,000 IOPS
- Up to 11,500 IOPS
- Up to 47,500 IOPS
- Up to 5,500 IOPS
Bandwidth Performance
- Sustained Sequential Read:
- Sustained Sequential Write:

- Up to 500 MB/s
- Up to 450 MB/s
Latency (average sequential)
- Read:
- Write:

- 50 µs (TYP)
- 65 µs (TYP)
EncryptionAES 256-bit Encryption
Product Ecological ComplianceRoHS
Power
- Active:
- Idle

- Up to 5.0 W (TYP)
- 650 mW
Temperature
- Operating:
- Non-Operating:

- 0° C to 70° C
- -55° C to 95° C
Shock (operating and non-operating):1,000 G/0.5 msec
Vibration
- Operating:
- Non-Operating:

- 2.17 GRMS (5-700 Hz)
- 3.13 GRMS (5-800 Hz)
Altitude
- Operating:
- Non-Operating:

- -1,000 to 10,000 ft
- -1,000 to 40,000 ft
Reliability
- Uncorrectable Bit Error Rate (UBER):
- Mean Time Between Failures (MTBF):

- 1 sector per 10^17 bits read
- 2,000,000 hours
Weight72 grams ± 2 grams

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: D298X 0D298X

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
