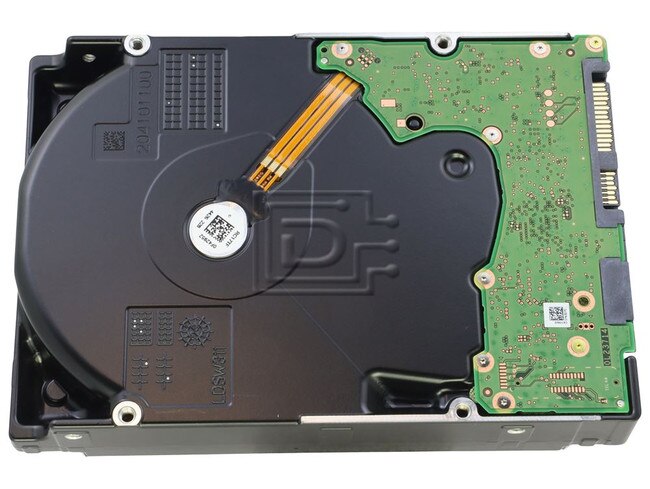

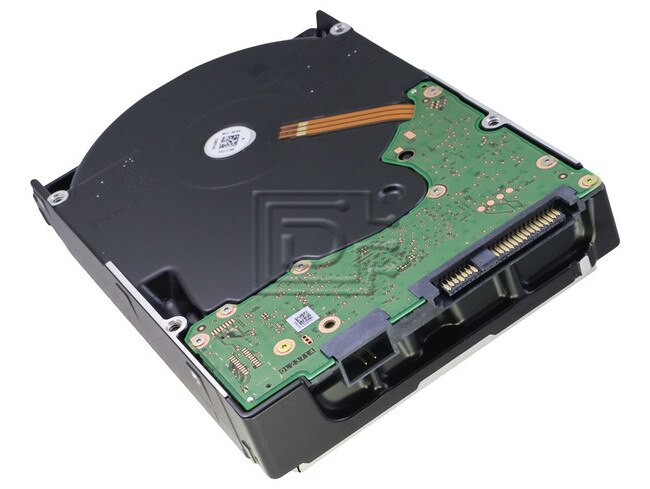

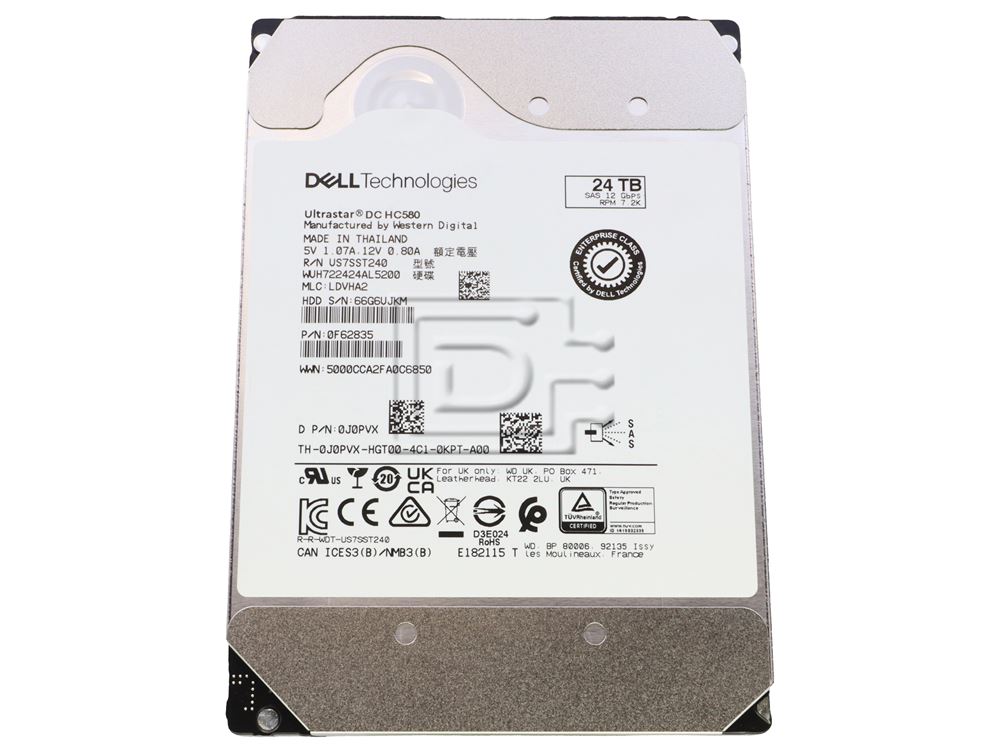

Dell J0PVX 24TB SAS 7.2K 12Gbps 3.5in Hard Drive PowerVault ME5 ME5012 ME5084 WD 0F62835 WUH722424AL5200

Dell J0PVX / Western Digital 0F62835 / WUH722424AL5200 24TB 3.5" LFF 12Gbps 7.2K RPM 512e Fast Format Enterprise SAS Hard Drive ME5 - Brand New

This Brand New Dell Certified Drive with Dell PN J0PVX is compatible with ME5 (ME5012, Me5084) storage array.

See: https://www.dell.com/support/manuals/en-us/powervault-me5024/me5_series_sm/supported-hard-drives?guid=guid-24350066-6d55-4b5c-bdb3-6f8b18c01549&lang=en-us

Highlights

• The Ultrastar DC HC580 data center HDD uses new, improved OptiNAND technology to store 24TB / 22TB on a 10-disk CMR drive, enabling a more efficient storage footprint.
• Innovative technologies such as OptiNAND, energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA) and HelioSeal enable high capacity with low power.
• ArmorCache improves performance and provides enterprise power loss protection.
• The Ultrastar DC HC580 is performance-optimized to handle heavy application workloads up to 550TB per year.
• The robust drive delivers dependability and reliability with up to 2.5M hours (projected) MTBF.

Applications/Environments

• Cloud and hyperscale storage
• Massive scale-out (MSO), high-density data centers
• Distributed File Systems
• Primary and secondary storage for Apache Hadoop® for Big Data Analytics
• Hybrid cloud environments
• Hyperconverged infrastructure servers

Ultrastar® DC HC580 Data Center HDD

Data Sheet24TB / 22TB to Fuel Data Center Expansion

Relentless growth of data means organizations must find ways to efficiently store more data. That’s where higher areal density comes into play, with its ability to boost capacities while not increasing the storage footprint. The Ultrastar DC HC580 24TB / 22TB HDD with OptiNAND technology is the next step in data density, allowing data centers to maximize their storage, especially in footprint- and power-constrained
environments.

The 24TB / 22TB drive combines several innovative technologies including
energy-assist magnetic recording (EAMR), HelioSeal®, triple-stage actuator (TSA)
that improves TPI capability with greater control over the actuator arm, improved
OptiNAND Technology and ArmorCacheTM. This innovation is incorporated into a
10-disk CMR drive, delivering the performance, quality, and reliability that data center
customers require.

Low Power for Lower Operating Costs

Innovative technologies such as OptiNAND energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA), and HelioSeal enable high capacity with low power.

OptiNAND Technology Benefits

The Ultrastar DC HC580 is the newest-generation platform with OptiNAND technology, which integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD), with traditional spinning disk media. Western Digital’s new 2.4TB/disk CMR areal density is used with its proven 10-disk platform, delivering up to 24TB capacity with a CMR recording format. More disks and high areal density work together to maximize data storage efficiency.

OptiNAND improves drive resiliency in the event of an emergency power off (EPO) by increasing the amount of non-volatile memory (NVM) available to flush critical metadata to the iNAND.

ArmorCache enabled by OptiNAND technology ensures that all the data in the DRAM cache is safely written to the onboard NVM device, should a sudden power loss event occur. Power to a host system may be lost without warning; operating HDD’s with write cache disabled (WCD) reduced the risk of data loss. With ArmorCache technology, host flush cache commands are no longer necessary to protect data, allowing for maximum performance in either WCD or write cache enabled (WCE) mode. This innovative feature provides enterprise power loss protection of data in WCE while increasing performance in WCD mode.

Trusted Reliability and Quality for Data at Scale

The Ultrastar DC HC580 meets modern data center reliability requirements with 2.5M MTBF2 (projected) and a 5-year limited warranty. It is performance-optimized for heavy application workloads and designed to handle workloads of up to 550TB per year. IT professionals and executives trust Western Digital and the Ultrastar DC HC580 hard drive to deliver unbeaten CM capacity and great value for their data center.

DP/N: J0PVX / 0J0PVX

Manufacturer Part#: 0F62835

This drive is designed to work in the Dell ME5 series arrays. This includes the ME5012, ME5024, ME5084, ME412, ME424, ME484. It will also work in the Dell PowerEdge and PowerVault systems.

ROHS Compliant

Alternate MPNs: J0PVX 0J0PVX 0F62835

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

1 Year DiscTech Warranty
