Dell Part #/MPN: J91FN
DiscTech Item #: DEL-J91FN-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8644
Form Factor: Half-Height/Half-Length
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
Voltage: 3.3V
Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

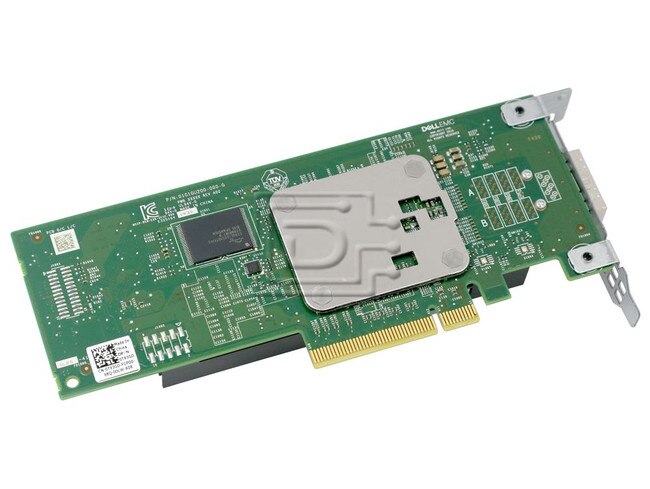

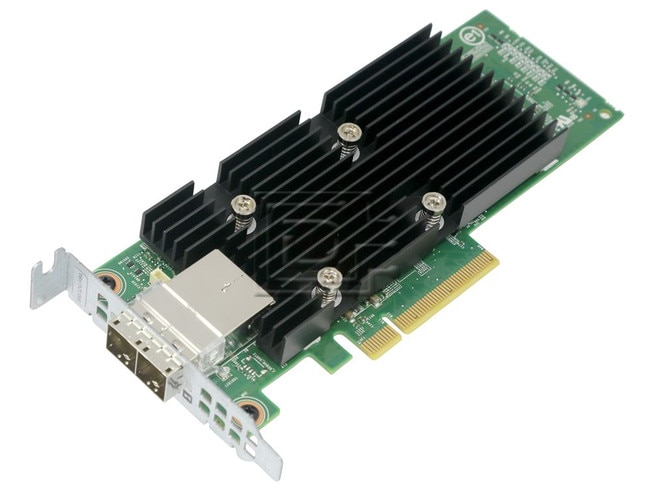

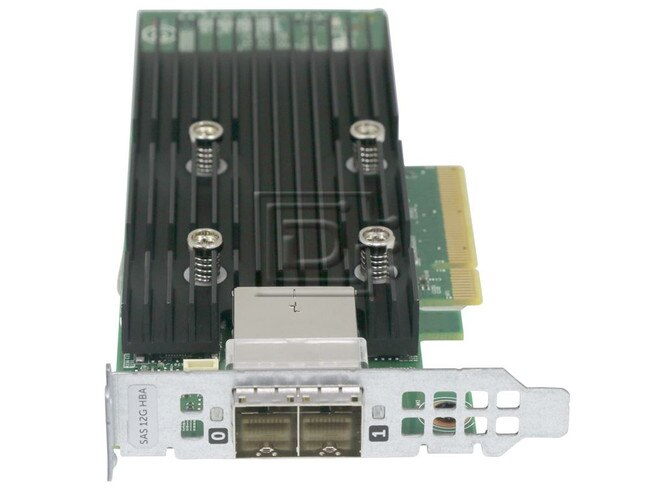

Dell 405-AAES / J91FN / 1HD39 Non-RAID SAS / Serial Attached SCSI HBA External Controller PCI Express - New Pull
Overview: The Dell J91FN is a 12Gb/s SAS Low Profile adapter based on LSI 9300-8e which provides two SFF-8644 12Gb/s Mini-SAS HD external connections. The LSI HBA supports 8 PCI Express lanes and complies with the latest PCI Express 3.0 specification. Each HBA supports 8 individual SAS lanes operating at 12Gb/s (4 per port).
Dell Server and Storage Support: The Dell J91FN / LSI 9300-8e HBA is compatible with all Dell 11th, 12th, and 13th generation PowerEdge Servers that have a PCI Express (PCI-e) x8 slot. The HBA is backwards compatible with previous PCI-e and SAS generations through automatic negotiation and provides SAS data transfer rate of 12 and 6 Gb/s per lane. The LSI 9300-8e HBA is fully functional, tested and supported with the Dell PowerVault MD34/38 series storage arrays. It is not supported when attached to any other Dell storage products.
Manufacturer Part# : J91FN, 0J91FN, 1HD39, 01HD39
Dell Part# : 405-AAES
Alt. PN: LSI 9300-8e
This product is compatible with the following systems:
PowerEdge C4130, C6320, C6420, FC430, FC630, FC640, FC830, M630, R230, R330, R430, R440, R530, R540, R630, R640, R6415, R730, R740, R740XD, R7415, R840, R940xa, T630, VRTX
PowerVault TL2000, TL4000
Compatibility:
Kit is fully compatible with Dell PowerEdge Servers and Storage arrays that support SATA or SAS 3.5" LFF hard drives including:
| PowerEdge C4130 | PowerEdge C6320 | PowerEdge C6420 | PowerEdge FC430 |
| PowerEdge FC630 | PowerEdge FC640 | PowerEdge FC830 | PowerEdge M630 |
| PowerEdge R230 | PowerEdge R330 | PowerEdge R430 | PowerEdge R440 |
| PowerEdge R530 | PowerEdge R540 | PowerEdge R630 | PowerEdge R640 |
| PowerEdge R6415 | PowerEdge R730 | PowerEdge R740 | PowerEdge R740XD |
| PowerEdge R7415 | PowerEdge R840 | PowerEdge R940a | PowerEdge T630 |
| PowerEdge VRTX | PowerVault TL2000 | PowerVault TL4000 |
| Dell HBA External Controller | |
|---|---|
| Manufacturer Part# : | J91FN, 0J91FN, 1HD39, 01HD39 |
| Dell Part# : | 405-AAES |
| Specifications | |
| Product Name | SAS 12GBPS HBA Extended Controller LP 405-AAES |
| Product Type | SAS Controller |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Form Factor | Low Profile |
| Designed For | |
| Interface | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| Data Link Protocol | Host Bus Adapter |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1HD39 01HD39 T93GD 0T93GD J91FN 0J91FN 9300-8e
Weight: 2 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
