• Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 240GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 540/250

Average Seek Time: 500 μs | 500 μs

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

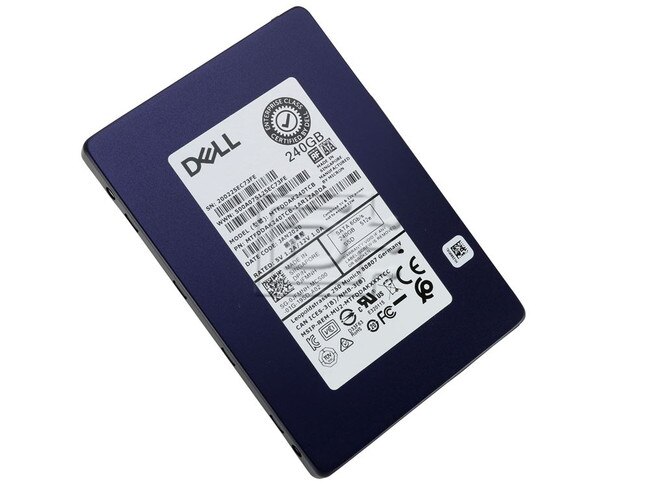

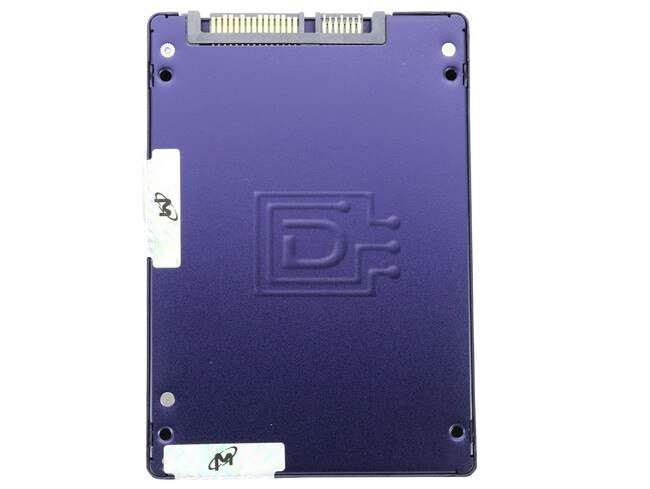

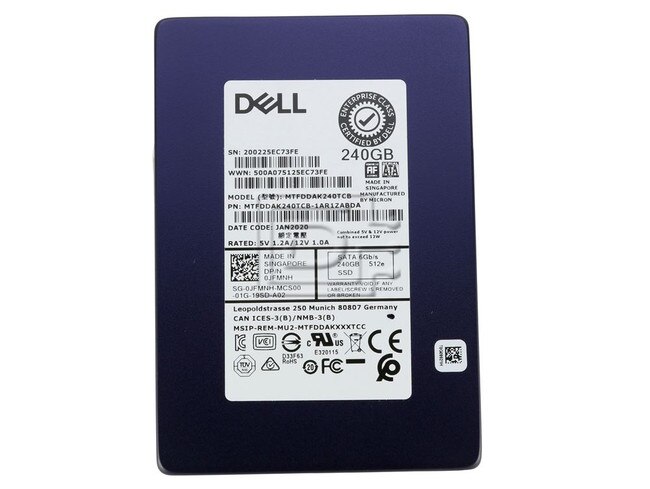

Dell JFMNH / Micron 5100 PRO MTFDDAK240TCB-1AR1ZABDA 240GB 2.5-Inch 6Gbps eTLC Mixed Use SATA Solid State Drive - Refurbished OEM

Dell JFMNH / Micron 5100 PRO MTFDDAK240TCB-1AR1ZABDA 240GB 2.5" 6.0 Gb/s 3D eTLC / Enterprise Triple Level Cell NAND Flash MU / Mixed Use 1.5-DWPD / Drive Writes Per Day SATA /Serial ATA SSD / Solid State Drive - Refurbished OEM


Micron’s 5100 solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and four channels of Micron NAND Flash internally. Available in both M.2 and 2.5-inch form factors, the SSD integrates easily in existing storage infrastructures.

The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption and extended reliability.

The self-encrypting drive (SED) features a AES-256 encryption engine, providing hardware-based, secure data encryption, with no loss of SSD performance. This SED follows the TCG Enterprise specification for trusted peripherals. When TCG Enterprise features are not enabled, the device can perform alternate data encryption by invoking the ATA security command set encryption features, to provide full disk encryption (FDE) managed in the host system BIOS. TCG Enterprise and ATA security feature sets cannot be enabled simultaneously.

The data encryption is always running; however, encryption keys are not managed and the data is not secure until either TCG Enterprise or ATA security feature sets are enabled.


  • Micron® 3D TLC NAND Flash
  • Three performance/endurance levels
    • ECO
    • PRO
    • MAX
  • TCG Enterprise compliant self-encrypting drive (SED)
  • SATA 6 Gb/s interface
  • ATA modes supported
    • PIO mode 3, 4
    • Multiword DMA mode 0, 1, 2
    • Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
  • 512-byte sector size support
  • Hot-plug capable (2.5-inch only)
  • Native command queuing support with 32-command slot support
  • ATA-8 ACS-3 revision 5 command set compliant
  • ATA security feature command set and password login support
  • Security erase command set: fast and secure erase
  • Performance (steady state)
    • Sequential 128KB read: Up to 540 MB/s
    • Sequential 128KB write: Up to 520 MB/s
    • Random 4KB read: Up to 93,000 IOPS
    • Random 4KB write: Up to 74,000 IOPS
  • Quality of Service
    • Read/Write (99.9%): 500µs/500µs
    • Read/Write (99.999%): 9ms/5ms
  • Endurance : Total bytes written (TBW)
    • ECO: Up to 8,400TB
    • PRO: Up to 17,600TB
    • MAX: Up to 17,600TB
  • Reliability
    • MTTF: 3.0 million device hours
    • Static and dynamic wear leveling
    • Uncorrectable bit error rate (UBER): <1 sector per 10e17 bits read
    • End-to-end data protection
    • Enhanced power-loss data protection with data protection capacitor monitoring
  • Self-monitoring, analysis, and reporting technology (SMART) command set
  • Capacity (unformatted): 240GB, 480GB, 960GB, 1920GB, 3840GB, 7680GB
  • Mechanical:
    • 2.5-inch x 7.0mm form factor
    • M.2 Type 2280 form factor
  • RoHS-compliant package
  • Secure field-upgradeable firmware with digitally signed firmware image
  • Power consumption:
    • 240GB/480GB: <4.5W(TYP)
    • 960GB: <5.0W(TYP)
    • 1920GB: <5.5W(TYP)
    • 3840GB / 7680GB: <6.0W(TYP)
  • Operating temperature
    • Commercial (0°C to 70°C)



This drive is compatible with servers and arrays that accept 2.5” 7mm SATA drives

Micron 5100 PRO
Technical Specification
ManufacturerMicron Enterprise SSD
Model5100 PRO
Encryption DetailsNot Encrypted
Form Factor2.5in (6.4cm)
Sequential Read (128KB transfer)540
Sequential Write (128KB transfer)250
Random Read (4KB transfer)78,000
Random Write (4KB transfer)26,000
Random 70/30 R/W (4KB transfer)43,000
Read latency (99.9%)500
Write latency (99.9%)500
Read latency (99.999%)9.0
Write latency (99.999%)5.0
Drive Lifetime (Total Bytes Written)650TB
Voltage InputSymbol
  • V12
  • V5

  • Min
  • 10.8V
  • 4.5V

  • Max
  • 13.2V
  • 5.5V
  • Operating temperatureMin: 0°C
    Max: 70°C
    Non Operating temperatureMin: -40°C
    Max: 85°C
    Rate of temperature changeMax: 20°C/hour
    Relative humidity (non-condensing)Min: 5%
    Max: 95%
    Min Operating Temperature32°F
    Non-operating shock1500G/0.5ms
    Non-operating vibration5–800Hz at 3.13 Grms
    Uncorrectable Bit Error Rate<1 sector per 10e17 bits
    MTTF3.0 million
    Idle Average1.5W
    Flash Type3D eTLC
    Dimensions (W x L x H)69.85mm x 100.45mm x 7.00mm

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: JFMNH 0JFMNH

    Weight: 1 lb

    Warranty: 1 Year DiscTech


    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
