Dell JGXK2 / Toshiba PX05SRB048Y 480GB 12Gbps MLC Read Intensive 1-DWPD SAS SSD1
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 480GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description

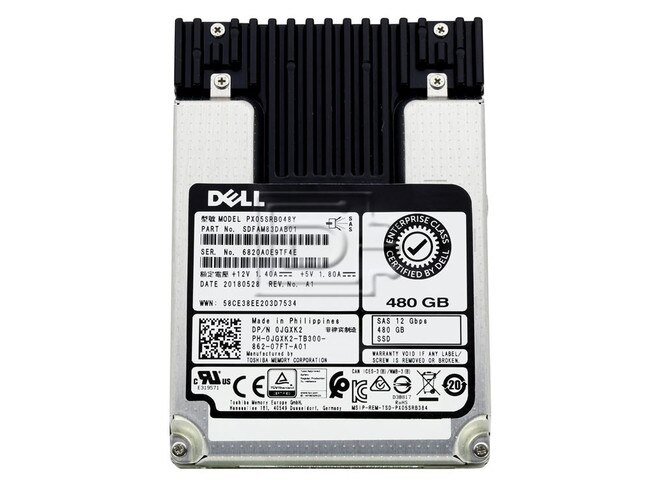

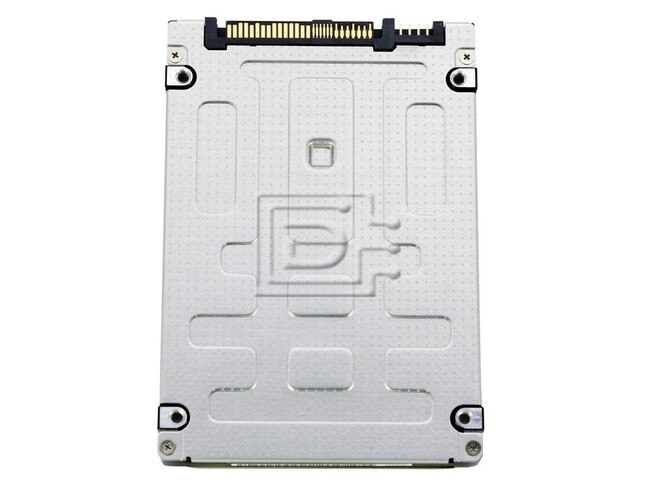

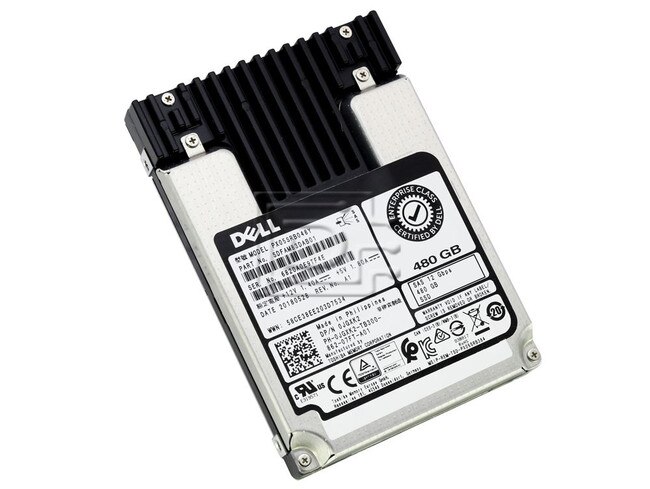

Dell JGXK2 / Toshiba PX05SRB048Y PX05SRB Series 480GB SAS 12Gbps MLC Read Intensive SSD - Brand New
DP/N: JGXK2, 0JGXK2
Enterprise Read Intensive SSD
The PX05S Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. The PX05SR Series is designed for read-intensive application workloads including web servers, data warehousing, media streaming and VOD and offers large capacities up to 3.84TB with 12.0 Gbit/s SAS interface.
The series’ 270K IOPS sustained random read performance and 1,400 - 1,800 MB/s sequential read performance helps read-intensive application workloads to realize superior results and assists organizations in minimizing total cost of ownership while maintaining high performance, reliability and endurance for maximum scalability.
Optimized for applications demanding 1 Drive Writes Per Day (DWPD), the family is equipped with unique customer-tunable feature allowing optimization for maximum performance or power efficiency. Additional features include power-loss protection and full data path protection. Each model supports pin-3 power disable for improved enclosure services control over storage media. Self-encrypting drive options with instant secure erase are also available.
Key Features
- 270k IOPS random read (4K) performance
- 1 DWPD with 100% Random Write Workload
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE) option
- Self-Encrypting (SED) Option
- Self-Encrypting (SED), FIPS Certified Option
Key Application
- Video on Demand (VOD)
- Streaming Media
- Data Warehousing
- Web Servers
Compatibility
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Specifications
| Basic Specification | |
|---|---|
| Intel Model Number | PX05SRB048Y |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 480GB |
| Sustained 64KiB Sequential Read | 1,800 MiB/s |
| Sustained 64KiB Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read | 270,000 IOPS |
| Sustained 4KiB Random Write | 19,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Dimension | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max |
| Environmental Specifications | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity (Operating) | 5 to 95 % R.H. (No Condensation) |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (5 to 800 Hz) |
| Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
ROHS Compliant
Alternate MPNs: JGXK2 0JGXK2
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
