Western Digital Part #/MPN: WD5000HHTZ
DiscTech Item #: WDC-WD5000HHTZ-BN-OE-DEG
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 500GB
Speed: 10,000RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 200
Average Seek Time: 5.1
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

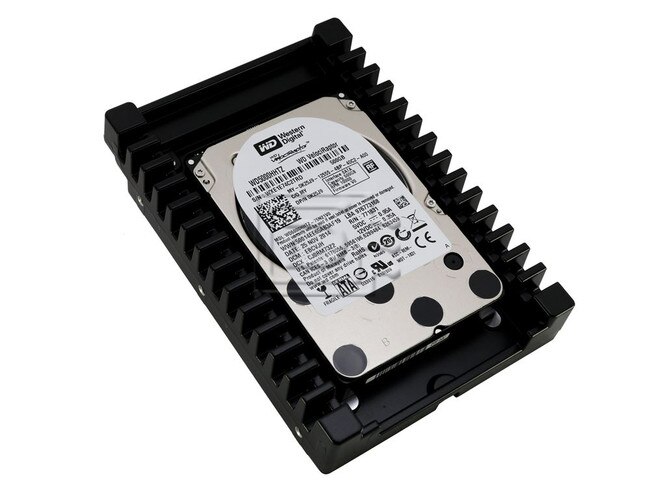

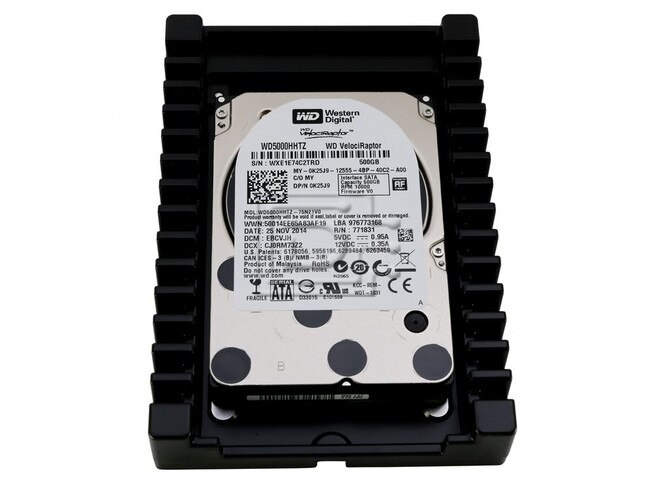

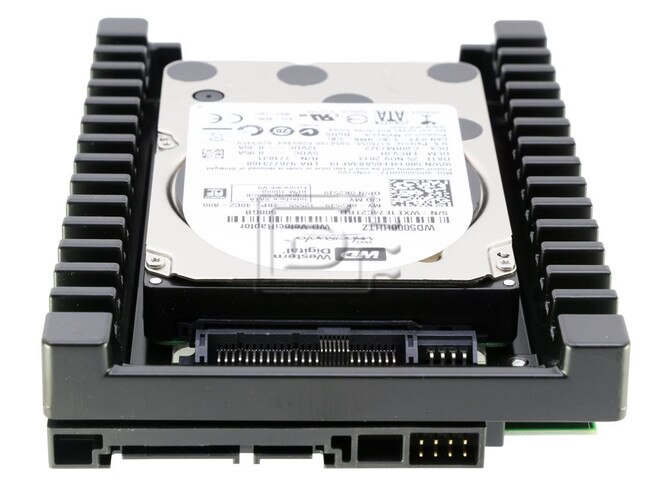

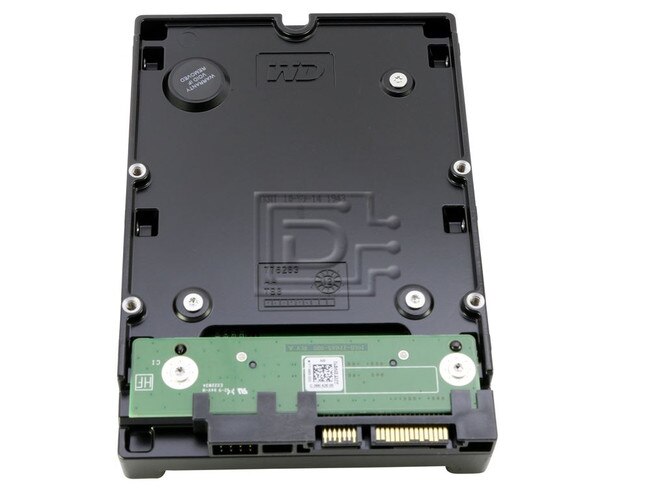

Western Digital WD5000HHTZ / Dell K25J9 500GB 3.5" 6Gbps 10K RPM WD VelociRaptor SATA HDD - Brand New
Dell K25J9 / Western Digital WD5000HHTZ / WD5000HHTZ-75N21V0 500GB 3.5" 6.0 Gbps 10,000 RPM WD VelociRaptor Serial Advanced Technology Attachment Hard Disk Drive - Brand New
WD VelociRaptor WorkStation Hard Drives
WD VelociRaptor drives offer an unmatched combination of high performance and high reliability, perfect for workstations, high-end video and photo editing, low-end servers and performance enthusiasts’ systems. Comes with a 3.5-inch mounting frame for easy installation into today's high-performance systems and chassis.
Product Features
- Ulta-Fast – Designed around a 10,000 RPM spin speed, these SATA 6 Gb/s drives include a 64 MB cache and deliver the ultimate performance for photo and video editing.
- Rock-Solid Reliability - With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.
- High Capacity - State-of-the-art technology delivers a balance of high performance and high capacity perfect for data-intensive workloads that require large amounts of storage such as video editing, 3D rendering and scientific modeling.
- Ultra-Cool Operation - Consumes less idle power and uses similar active power as the previous generation WD VelociRaptor, while offering double the capacity and higher performance.
- Advanced Format (AF) - Technology adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities.
- IcePack™ Mounting Frame - The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.
- Rotary Acceleration Feed Forward (RAFF™) – Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
- NoTouch™ Ramp Load Technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
- Environmentally Conscious - In addition to being ROHS compliant, this generation of WD VelociRaptor is also a halogen free design.
- Pre-Emptive Wear Leveling (PWL) - Ensures reliability for applications that perform a high incidence of read/write operations at the same physical location on the disk.
Alt P/N: 0K25J9
Compatibility:
This drive is compatible with any server that accepts 3.5"x1.0" (LFF Hard Drive) SATA drives.
| Specifications | |
|---|---|
| Model Number | WD5000HHTZ |
| Interface | SATA 6Gb/s |
| Formatted Capacity | 500GB |
| User Sectors Per Drive | 976,773,168 |
| Advanced Format (AF) | Yes |
| SATA Latching Connector | Yes |
| Form Factor | 3.5-Inch |
| RoHS Compliant | Yes |
| Performance | |
| Data Transfer Rate (MAX) Buffer to Host | 6 Gb/s |
| Host To/From Drive (Sustained) | 200 MB/s |
| Cache (MB) | 64 |
| Rotational Speed (RPM) | 10,000 |
| Average Drive Ready Time (Sec) | 8 |
| Reliability/Data Integrity | |
| Load/Unload Cycles | 600,000 |
| Non-Recoverable Read Errors Per Bits Read | <10 in 10 |
| Power Management | |
| 12VDC (A, Max) | 1.8 |
| Average Random Read/Write Power (W) | 5.1 |
| Average Sequentialead/Write Power (W) | 5.8 |
| Average Idle Power (W) | 4.2 |
| Average Standby and Sleep Power (W) | 1.1 |
| Environmental Specifications | |
| Operating Temperature °C | 5 to 55 |
| Non-Operating Temperature °C | -40 to 70 |
| Shock (Gs) Operating(2 ms, read/write) | 30 |
| Shock (Gs) Operating(2 ms, read) | 65 |
| Shock (Gs) Non-Operating (2 ms) | 300 |
| Acoustic Idle Mode (dBA) | 30 |
| Acoustiv Seek Mode (dBA) (Average) | 37 |
| Physical Dimensions | |
| Height (in/mm) | 1.028/26.1 |
| Width (in/mm) | 5.787/147 |
| Depth (in/mm) | 4/101.6 |
| Weight (lb/g) | 1.10/500 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: K25J9 0K25J9 WD5000HHTZ-75N21V0
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
