Dell KC5Y1 / Seagate ST450MP0005 450GB SAS 512n eMLC Hybrid Hard Drive

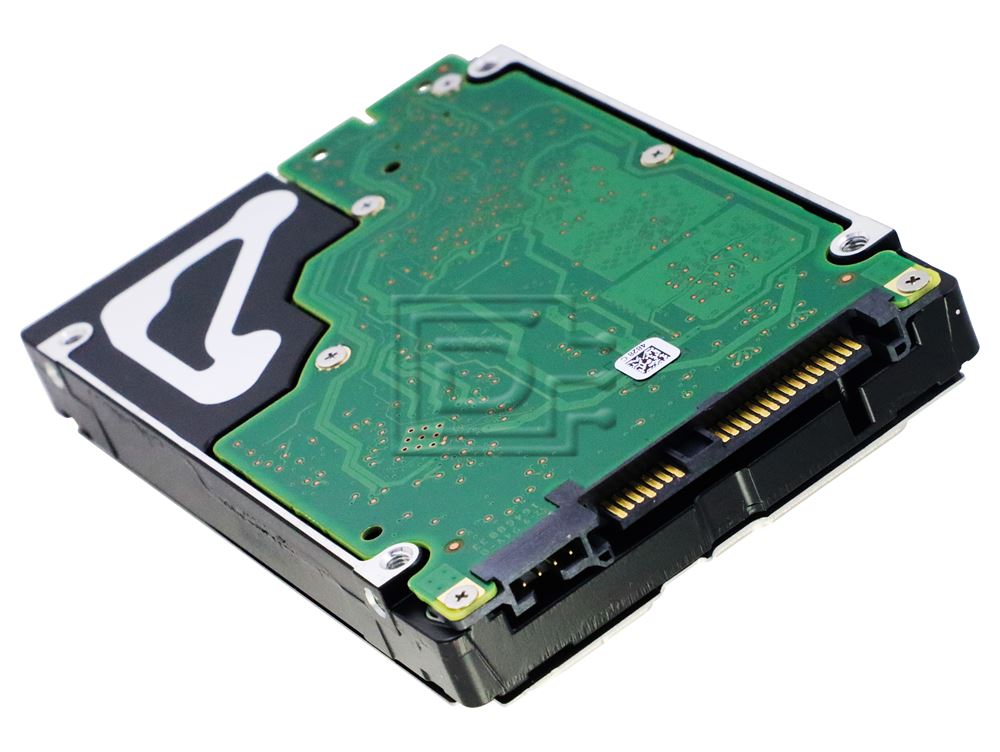

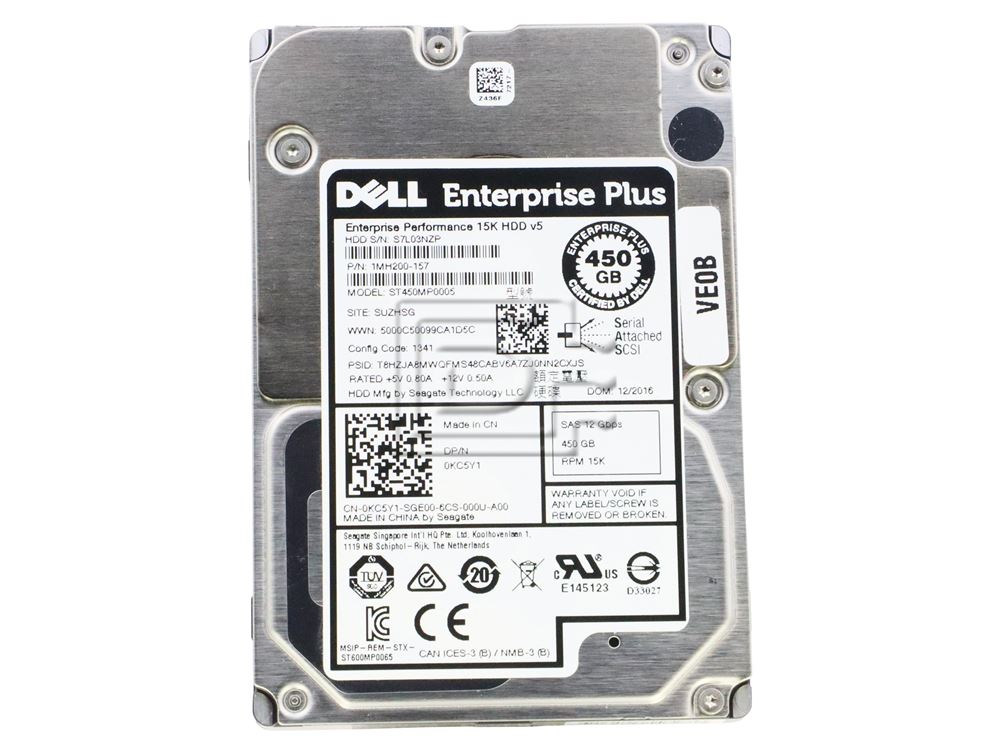

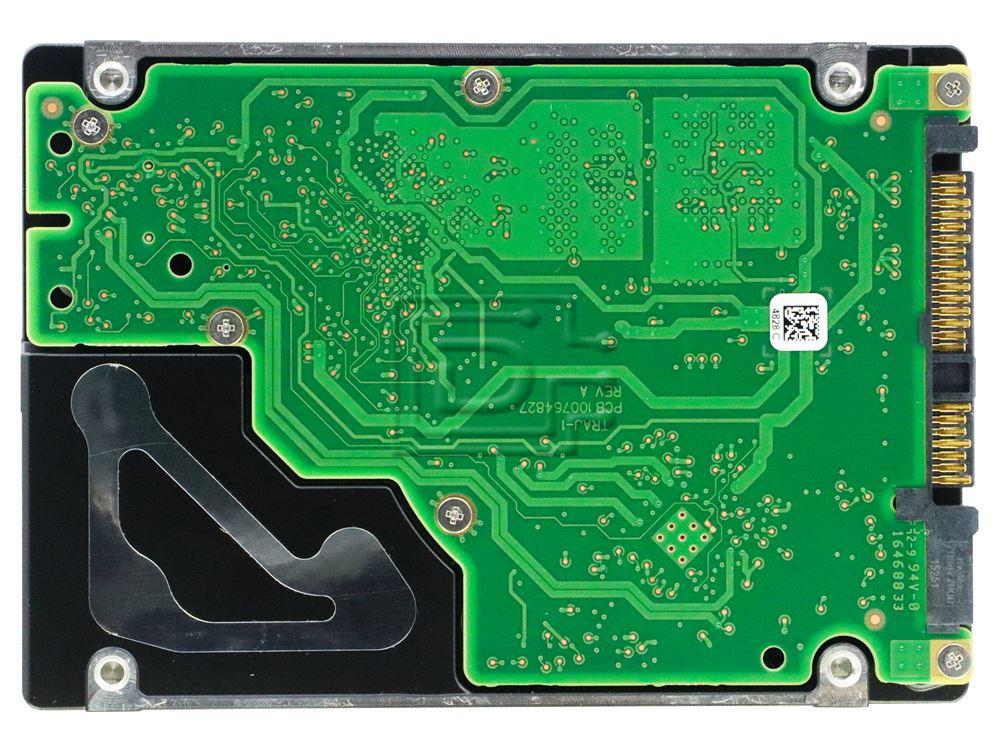

Seagate ST450MP0005 0KC5Y1 1MH200-157 SAS Hybrid Hard Drive Image 1 imageSeagate ST450MP0005 0KC5Y1 1MH200-157 SAS Hybrid Hard Drive Image 2 imageSeagate ST450MP0005 0KC5Y1 1MH200-157 SAS Hybrid Hard Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$279.00

Capacity:450GB
Speed:15K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-3 12Gbps
RAM:128MB
Click to see more 450GB SAS 15K RPM Drives

Description

Dell Enterprise Plus KC5Y1 / Seagate ST450MP0005 450GB 2.5" SFF, 12Gbps 15K RPM 512n eMLC Hybrid Enterprise SAS Hybrid Hard Drive - Brand New

Dell KC5Y1 / Seagate ST450MP0005 450GB 2.5" 12.0 Gbps 15,000 RPM 512 Native Enterprise Plus, Serial Attached SCSI /SAS eMLC Hybrid Hard Drive / HDD - Brand New

Enterprise Performance 15K HDD

High-Performing, Small Form Factor 15K eMLC Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
  • Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2.0M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides up to 18% improvement in SDR performance over prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.
  • Self-Encrypting Drive (SED) option (AES-256) helps cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
  • SED models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
  • FIPS Self-Encrypting Drive option helps protect Sensitive but Unclassified and Protected class data.

Best-Fit Applications

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives

DP/N: KC5Y1 / 0KC5Y1

Alt PT# 1MH200-157

Compatibility

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

Specifications

SPECIFICATIONS
Standard ModelST450MP0005
Specification512 Native
Capacity450GB
Interface12Gb/s SAS
PERFORMANCE
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s233 to 160
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)128
TURBOBOOST ENHANCED CACHE
NAND Flash TypeeMLC
NAND Flash Size32GB
CONFIGURATION/RELIABILITY
Disks/Heads3/6
Nonrecoverable Read Errors per Bits Read, Max1 per 10e16
Annualized Failure Rate (AFR)0.44%
POWER MANAGEMENT
Typical Op (A) +5V/+12V0.41/0.52
Average Idle Power (W)5.2
Average Operating Power (W)8.4
ENVIROMENTAL
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonoperating (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
PHYSICAL
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.507/0.230
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0KC5Y1 1MH200-157

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
