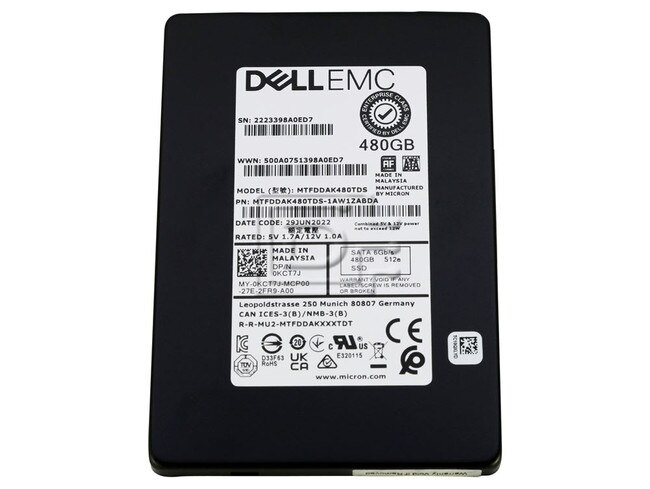

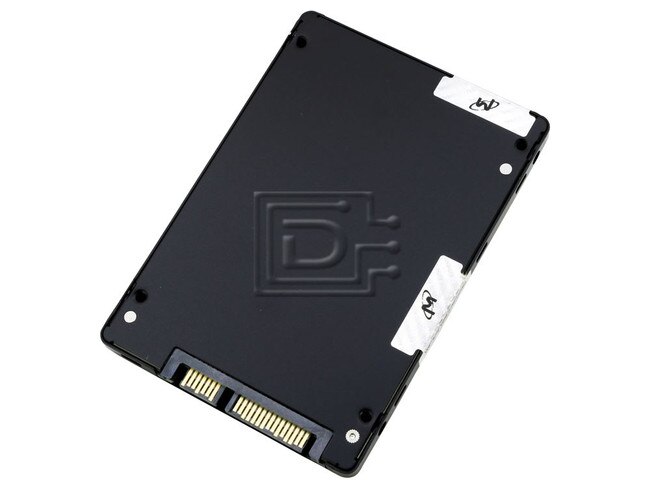

Dell KCT7J / Micron 5300 PRO MTFDDAK480TDS-1AW1ZABDA 480GB 2.5" 6Gbps TLC Enterprise MU SATA SSD



  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 540/410

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

Dell KCT7J / Micron 5300 PRO MTFDDAK480TDS-1AW1ZABDA 480GB 2.5" 6Gbps TLC Enterprise MU SATA SSD - Brand New

Dell KCT7J / Micron 5300 PRO MTFDDAK480TDS-1AW1ZABDA 480GB 2.5" x 7mm 6Gbs TLC / Triple Level Call Enterprise MU / Mixed Use DWPD: 1.5 SATA / Serial ATA SSD / Solid State Drive - Brand New

Invigorate Your Infrastructure
Moving to all-flash storage often involves choosing SATA, and your workloads deserve innovation. The Micron® 5300 series of SATA solid state drives (SSDs) brings you the latest 3D NAND technology with everything you expect from Micron’s SATA portfolio, which is the broadest in the industry. As the first cost-effective, 96-layer TLC NAND flash drive for SATA, the Micron 5300 rewards modernization efforts with high performance, consistency, and reliability on a proven architecture. The Micron 5300 SSD has a mean time to failure (MTTF) of 3 million device hours — 50% more than the norm.

Modernize and Economize to Maximize
Refresh your data center and gain performance upgrades. Modernize your racks, stacks, and server arrays by updating your data center with the performance, consistency, and expanded data security of the Micron 5300 SSD. Its data center class SATA storage delivers robust, consistent performance at 6 Gb/s for your data center and cloud, along with sequential read speeds of 540 MB/s.

Security for Flash Storage
The Micron 5300 series of SATA SSDs includes Micron’s solid, secure firmware features — secure digital signatures and boot-time attestation — plus AES 256-bit hardware encryption that follows the TCG Security Subsystem Class (SSC) Enterprise specification for storage devices for servers, data centers, and data center applications. The 5300 SSDs operate with the drive’s onboard encryption engine, so encryption doesn’t cause a degradation in performance.

Key Benefits

  • 96-Layer NAND SATA
    • With the industry’s first cost-effective, 96-layer, 3D TLC NAND for SATA, the Micron 5300 modernizes your data center with high performance, affordability, and consistent performance. Choose from market-friendly M.2 (22x80mm) and 2.5-inch form factors.
  • Security for Your Data
    • Solid, secure, firmware-based security includes options for TCG Enterprise, TCG Opal 2.0 to support on-device encryption for SEDs, and ATA Security. The 5300 also includes power-loss protection for data at-rest and inflight, as well as data center-class data path protection for user and meta data.
  • Performance for Read-Intensive, Mixed-Use
    • Take advantage of the Micron 5300 optimizations for read-intensive and mixed-use workloads. Your cloud and data centers will show strong performance for media streaming, online transaction processing (OLTP), block and object stores, business intelligence and data SS, and small random block. The Micron 5300 PRO delivers in the capacity tier on VDI/ virtualization, while the Micron 5300 MAX delivers on the capacity tier.
  • Broadest SATA Portfolio Gives You Options
    • Micron’s long-term commitment to the data center SATA SSD space means you have options in how you move to an all-flash future. Extend your SATA infrastructure from 240GB boot drives (a new model for robust startup that keeps data storage slots available), to high-capacity 8TB SSDs.

Target Workloads and Applications

  • Media Streaming
  • Business Intelligence/DSS
  • Small Random Block
  • Block and Object Stores
  • OLTP
Micron 5300 PRO SSD
Technical Specifications
Form Factor2.5in x 7mm
InterfaceSATA (6 Gb/s)
NANDMicron 96-layer 3D TLC NAND
Seq. Read (MB/s)540
Seq. Writ (MB/s)410
Rand. Read (K IOPS)885
Rand. Write (K IOPS)36
Endurance (Total Bytes Written in TB)1324
Random read175µs to 200µs
Random write100µs to 650µs
Mean Time to Failure MTTF3 million device hours
UBER<1 sector per 1017 bits read
Environmental Characteristics
PowerSequential read: <3W MAX
Sequential write: <3.9W MAX
Operating Temp.0-70°C
Physical Characteristics
Dimensions (Depth x Height x Width)2.5-inch: 100.45mm x 69.85mm x 7.00mm
M.2: 80mm x 22mm x 3.8mm
Weight2.5-inch: <70g
M.2: <10g

Click here to view the manufacturer's item description/brochure

ROHS Compliant


Weight: 1.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
