Dell KMM 331-9439 DKMMLED185-G01 Rack Console 18.5 " LED Display, Touchpad Keyboard/Mouse, w/ 1U Ready Rails

Dell Part #/MPN: 331-9439

DiscTech Item #: DEL-331-9439-BN-OE


Interface Types: USB 2.0, USB 3.0 3.1 3.2

Bays/Ports/Slots: 2

U Height: 1U

Dell KMM 331-9439 DKMMLED185-G01 FPM185 H8GK0 Rack Console 18.5 " LED Display, Touchpad Keyboard/Mouse, w/ 1U Ready Rails for Dell Racks - Brand New

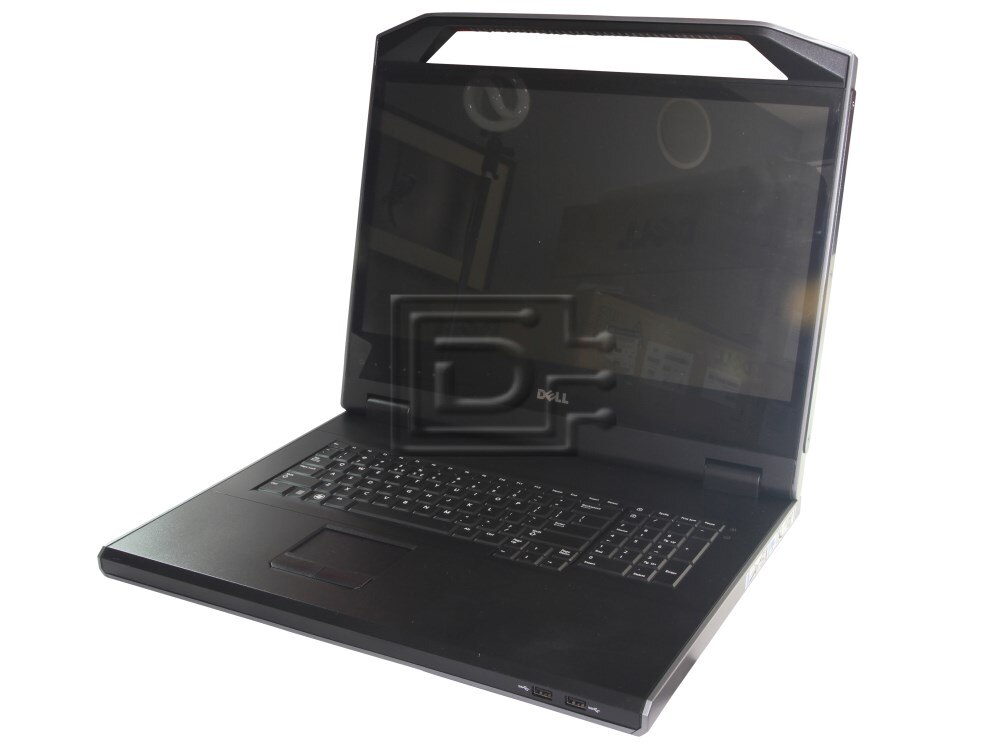

The Dell™ 1U Rackmount LED Console enables you to mount a system administrator’s control station directly into a rack enclosure while consuming minimal rack space. It is combined with an 18.5-inch flat-panel LED screen and a specially designed keyboard and touchpad mouse. The KMM can be mounted in the same rack U-location with any currently shipping Dell KVM (Keyboard, Video, and Mouse) console switch to manage the setup,administration and maintenance of multiple rack-mounted servers. The interface for the keyboard with touchpad mouse provides ease of use through one USB connection.

The Rackmount LED Console offers tool-less installation with the ReadyRails™ II interface for easy deployment. The KMM console supports multiple enterprise configurations. It can also provide access to servers which are connected by a cascaded console switch in 2-tier architecture. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

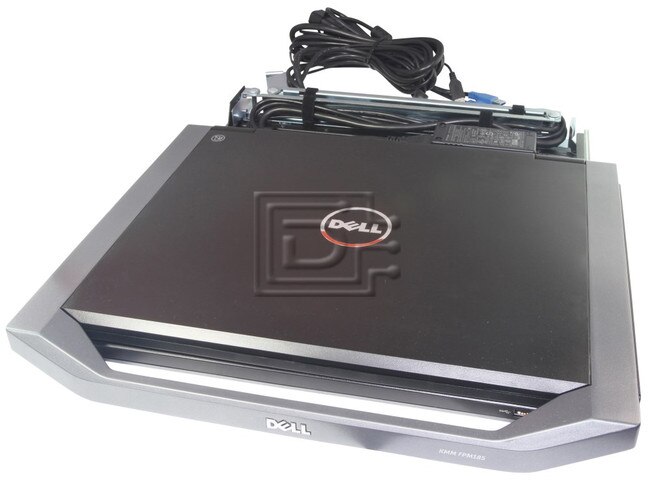

This item includes the 18.5" TFT LED Flat Panel Monitor, KMM (Keyboard, Monitor, Mouse/Touchpad Assembly, 1U Ready Rails, Power Cord, Documentation.


  • Its 18.5-inch Widescreen display supports both legacy and widescreen video modes
  • It has dual front USB 3.0 pass-through ports
  • Offers tool-less installation with the ReadyRails II interface for easy deployment
  • The ultra-slim 1U design allows sharing with any shipping Dell KVM in same U-space (requires KVM mounting bracket)
  • English Keyboard and 1U KVM mounting kit

Dell Part# : 331-9439 / DTP9G / N6MK0 / C0NNT / DKMMLED185-G01 / A7546778

Avocent 520-884-535 / CMN 1098-001


Dell Racks and Servers

Display Type: KVM Console
Height: 1U
Diagonal Size: 18.5" TFT LED Backlit
Features: 1U Ready Rails
Input Device: Keyboard, Touchpad
Interfaces: 2 x USB 2.0 for keyboard / mouse  - 1 x video

Documentation Kit - MPN: 550-446-501

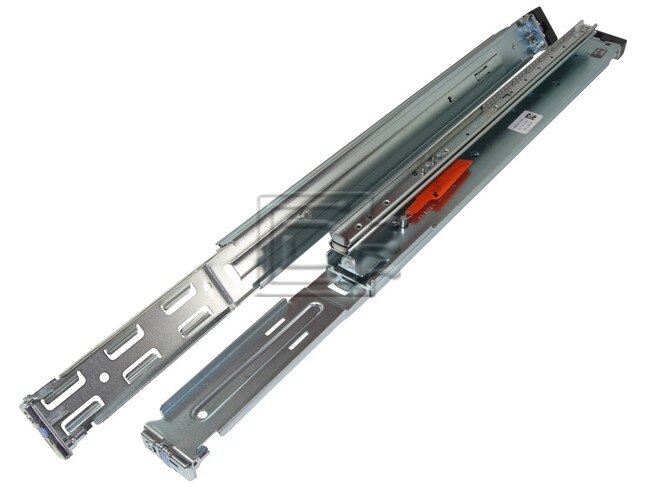

Rail Kit - P/N 550-135-501
Dell Y9R88 / KCGRF - Rack Instalation Kit

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: A7546778 DTP9G N6MK0 C0NNT H8GK0 FPM185 DKMMLED185-G01 4HMHF MTFTH

Weight: 45 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
