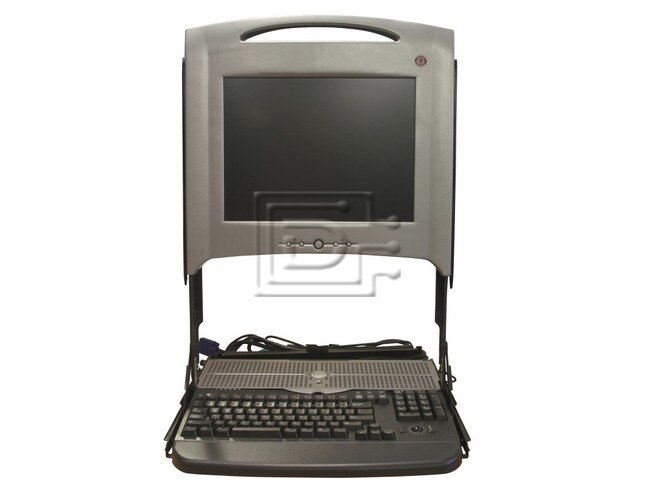

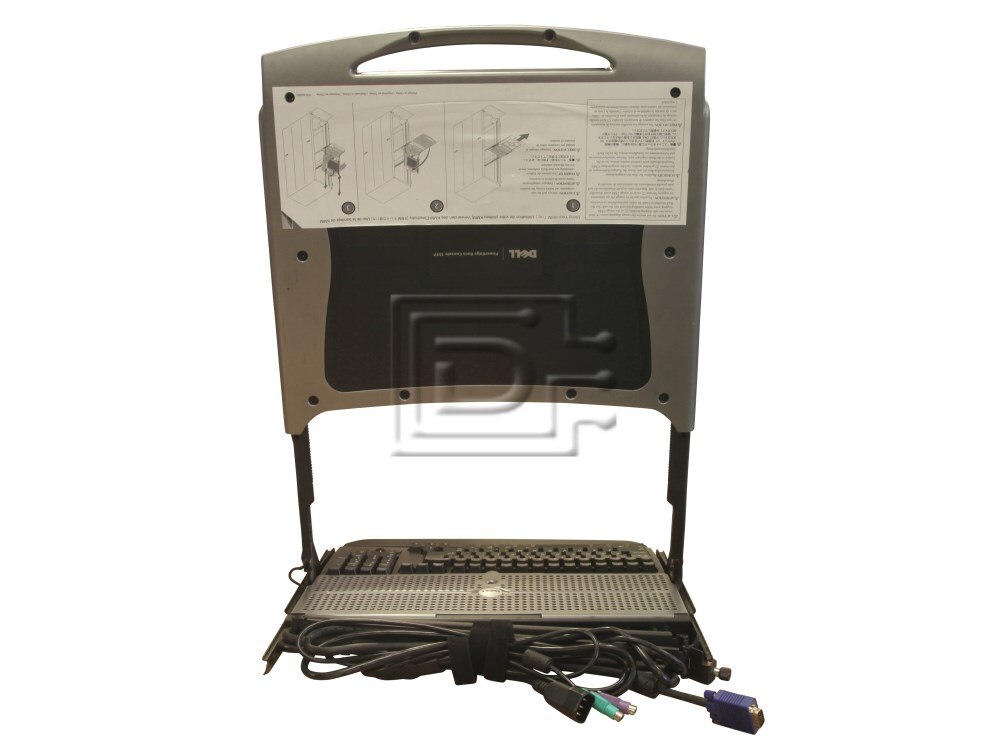

Dell KMM PF033 Rack Mounted Console 15" LCD 15FP 1U

Dell Part #/MPN: PF033

DiscTech Item #: DEL-PF033-UP-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


U Height: 1U

Dell KMM PF033 Rack Console 15" LCD Display, Touchpad -or- Trackball  Keyboard/Mouse, 1U Rails for PowerEdge 15FP - Used Pull

The Dell PF033 1U KMM Console enables you to mount a system administrator’s control station directly into a Dell rack without sacrificing rack space needed for servers and other peripherals. Combining a height-adjustable 15-inch LCD Screen with a specially designed Touchpad or Trackball Keyboard, this unit can be attached to Dell console switches to manage the setup, administration, and maintenance of rack-mount servers. As it is fully compatible with the 1U rack-mounting kit, it can be installed quickly. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Includes: 1Y260 KMM / Installation Hdwe & Doc / Power Cord / J7749 Rapid Rails


Display Type: 1Y260 KVM Console
Height: 1U
Diagonal Size: 15"
Features: J7749 Rapid Rails
Input Device: Keyboard, Touchpad -or- Trackball
Interfaces: 1 x keyboard / mouse / video

Complete dimensions: 450.0mm x 834.0mm x 44.45mm (17.7 inches x 32.8 inches x 1.75 inches)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0PF033 4Y067 04Y067

Weight: 50 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
