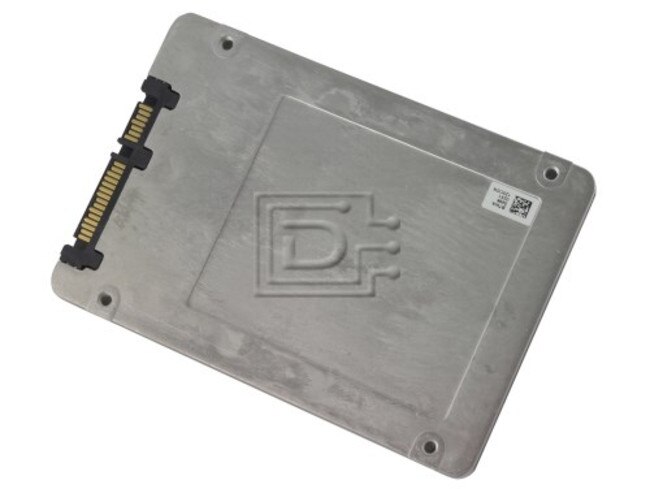

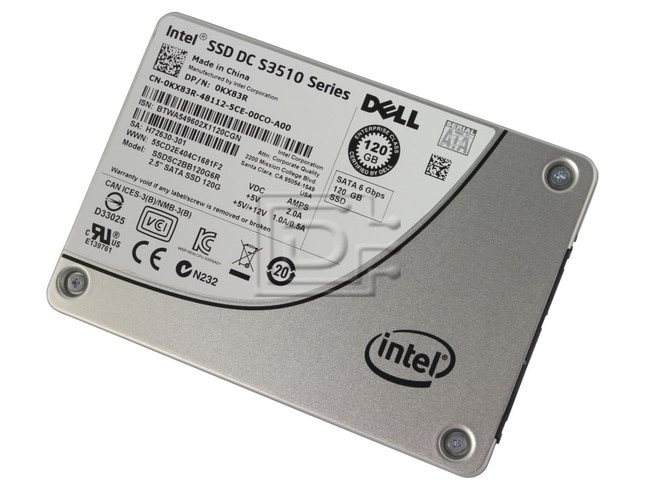

Dell KX83R / Intel DC S3510 SSDSC2BB120G6R 120GB 2.5" 6Gbps MLC SED SATA SSD


DiscTech Item #: INT-SSDSC2BB120G6R-BN-OE-DEL


Capacity: 120GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 475/135

Average Seek Time: 55 µs/66 µs

Electrical Interface: SATA 600 - 6.0Gbps


Dell KX83R / Intel DC S3510 SSDSC2BB120G6R 120GB 2.5" 6Gbps MLC SED SATA SSD - Brand New OEM

Dell KX83R / Intel DC S3510 SSDSC2BB120G6R 120GB 2.5" 6Gbps MLC SED SATA SSD - Brand New OEM

Alt Part Number KX83R, 0KX83R

Cost-Effective Performance and Reliability

Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel® Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.

The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time.

Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.


This drive is compatible with any server that accepts 2.5in x 7mm SATA drives.

Intel Model NumberSSDSC2BB120G6R
Dell Model NumberKX83R
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/s
Lithography Type16 nm
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)No
Temperature Monitoring and LoggingYes
End-toEnd ProtectionYes
Intel Smart Response TechnologyNo
Intel Rapid Start TechnologyNo
Launch DateQ2'15
Sequential Read475 MB/s
Sequential Write135 MB/s
Random Read (100% Span)68000 IOPS
Random Write (100% Span)5300 IOPS
Latency - Read55 µs
Latency - Write66 µs
Power - Active2.14 W
Power - Idle600 mW
Vibration - Operating1000G/0.5 msec
Vibration - Non-Operating1000G/0.5 msec
Shock (Operating and Non-Operating)1000G/0.5 msec
Operating Temperature Range0°C to 70°C
Weight88 grams ± 2 grams
Mean Time Between Failures (MTBF)70 TBW
Uncorrectable Bit Error Rate (UBER)1 sector per 10^17 bits read
Recommended Customer PriceN/A

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: KX83R 0KX83R

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
