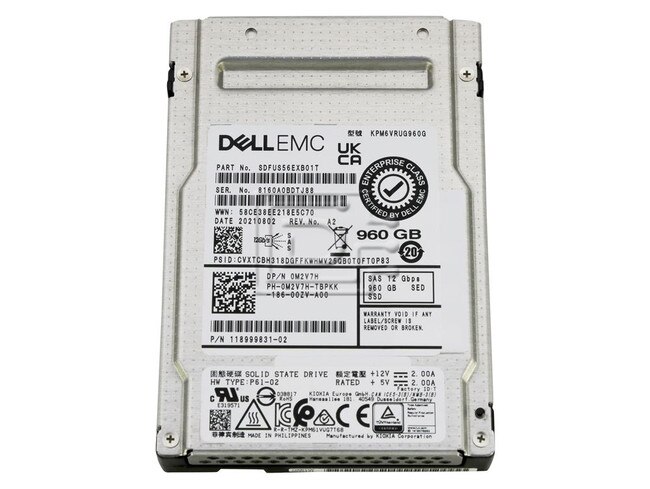

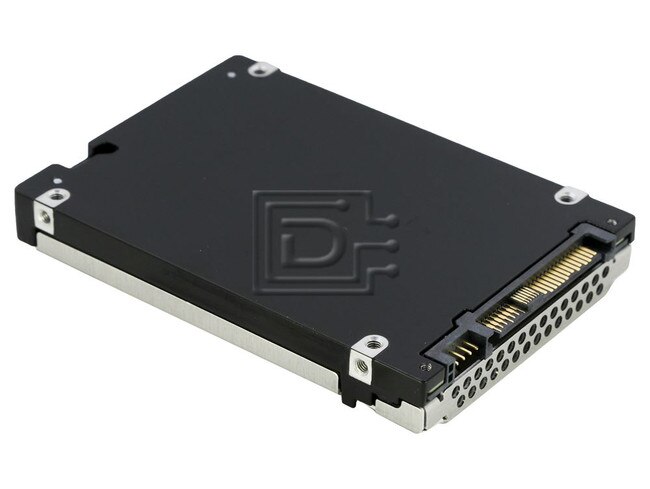

Dell M2V7H / Kioxia PM6-R KPM6VRUG960G SDFUS76EXB01T 960GB 2.5" 12Gbps RI SED SAS SSD


DiscTech Item #: KIO-KPM6VRUG960G-BN-OE-DEL


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Dell M2V7H / Kioxia PM6-R KPM6VRUG960G SDFUS76EXB01T 960GB 2.5" 12Gbps RI SED SAS SSD - Brand New

Dell EMC M2V7H / Kioxia PM6-R KPM6VRUG960G 960GB 2.5" TLC 12Gb/s Read Intensive SED Encryption SAS / Serial Attached SCSI SSD / Solid State Drive - Brand New


Enterprise Read Intensive SSD

PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, steaming media and video on demand, The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Dell EMC + KIOXIA = Better Together

  • Together: 20+ years of storage collaboration*
  • SSDs shipping across all of Dell EMC’s major server and storage product lines
  • All KIOXIA SSDs are VMware vSAN certified for your virtualized data center environments


This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives.

Toshiba Enterprise Read Intensive SSD
Model NumberKPM6VRUG960G
Capacity960 GB
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeTLC
Sustained 128KiB Sequential Read4,150 MiB/s
Sustained 128KiB Sequential Write1,450 MiB/s
Sustained 4KiB Random Read595K IOPS
Sustained 4KiB Random Write75K IOPS
MTTF2,000,000 hours
Supply Voltage5 V + 10% / - 7% , 12 V ± 10%
Power Consumption (Ready)5.0 W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Temperature ( Operating )0 to 70 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration ( Operating )21.27 m/s { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )9,800 m/s { 1,000 G } ( 0.5 ms duration )

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: M2V7H 0M2V7H SDFUS76EXB01T

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
