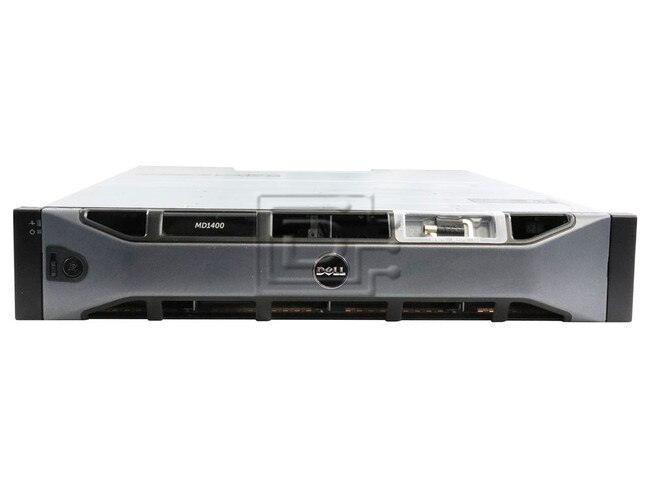

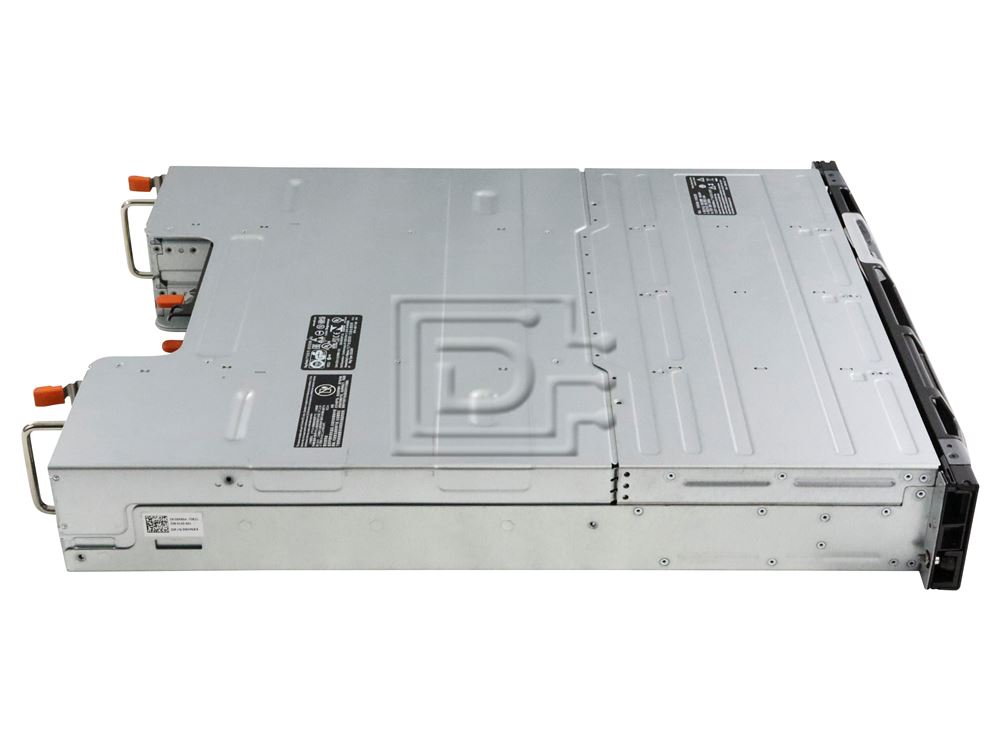

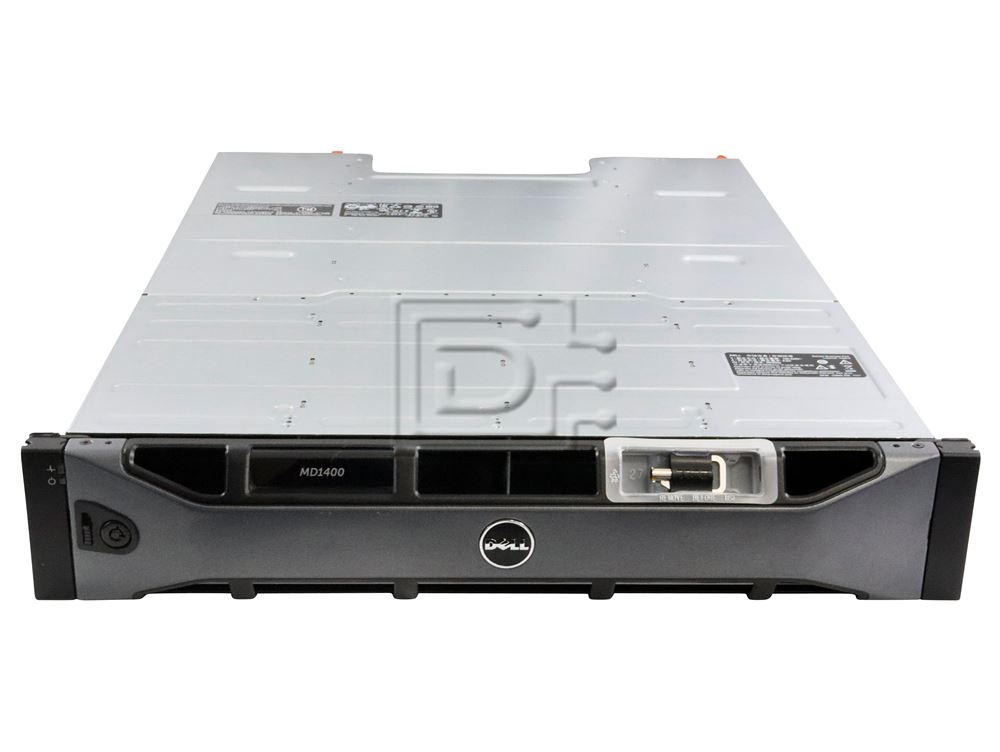

Dell MD1400 SAS 12-Bay Storage Array

Dell Part #/MPN: MD1400

DiscTech Item #: DEL-MD1400-RF-OE


$4,049.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$4,049.00

Interface Types: SAS Serial Attached SCSI, SFF-8088, SFF-8644

Form Factor: 3.5inx1.0in LFF Hard Drive

Bays/Ports/Slots: 12

Dell MD1400 3.5-Inch Hot Swap SAS 12-Bay Storage Array - Refurbished

Dell MD1400 3.5" Hot Swap SAS 12-Bay Storage Array - Refurbished

12 - 3.5" bays,SAS / SFF-8644 connection, H830 controller recommended.

Dell Storage MD1400 and MD1420
Dell Storage introduces the latest technology in the MD Series of direct-attach storage enclosures designed to maximize your server storage capacity. The MD1400 and the MD1420 offer low-cost storage expansion with double the bandwidth using 12Gbps SAS connectivity to support your growing application workloads.

Cost-effective storage
As data continues to grow, the need to store and access that data increases exponentially as well. The Dell Storage MD Series offers affordable storage expansion for Dell PowerEdge servers.1 The MD1400 and MD1420 models are designed to scale capacity behind Dell’s 13th generation of PowerEdge servers, without busting your storage budget. When cost is an issue, and you need to optimize your cost per terabyte, the MD Series offers a simple and cost-effective solution while ensuring your performance requirements are met.

The intelligence of the Dell PowerEdge RAID Controller (PERC) H830 HostRAID adapter, which enables the software to recognize all of your storage as a single unit, helps increase reliability and fault tolerance. You can place up to eight MD enclosures behind a PowerEdge server using a 12Gb SAS HBA or the PERC9 series with a 12Gb RAID controller. Directly connected to your PowerEdge server, either configuration gives you a viable storage solution, creating an end-to-end performance centric 12Gb solution.

Designed for capacity and performance
The MD Series offers the versatility needed to meet both your storage capacity and performance requirements. The MD1400 and MD1420 models are specifically designed to work with the latest PowerEdge servers using the PERC9 series of RAID controllers with 12Gbps SAS offering unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.

Meet your high-capacity storage requirements with the MD Series by choosing the drive type and speed that meets your data center specifications. The MD1400 and MD1420 models offer the flexibility to mix and match NL-SAS, SAS and SSD drives within an enclosure to assist with your data tiering initiatives. With the option of either 12 or 24 hard drives in an enclosure, you can scale non-disruptively to meet your application demands.

The MD1400 offers the flexibility of 3.5-inch or 2.5-inch hard drives (with specially designed carriers) in a 2U, 12-drive enclosure. This model can expand to 8 enclosures and up to 96 hard drives behind the PowerEdge server.

The MD1420 supports 24 2.5-inch hard drives in a 2U form-factor, expanding up to 8 enclosures and up to 192 hard drives supporting high storage capacity requirements.

Seamless integration and management
Leveraging the technology and design of the 13th generation of PowerEdge servers, the MD1400 and the MD1420 use the same hot-swappable drives, fans and power supplies to minimize the cost of spares. If drive security is a priority, the option to use self-encrypted drives (SED) with drive-level encryption ensures your data is secure, even if the drive is removed. Additionally, SEDs support instant Secure Erase of drives which permanently removes data when repurposing or decommissioning drives

Data can be managed simply through Dell OpenManage™ system management technology, leveraging iDRAC (Integrated Dell Remote Access Controller) to help simplify and automate your most essential management tasks across server, storage and networking platforms in multi-hypervisor and OS environments.

You can manage both the internal and external storage as a single interface, optimizing performance with the end-to-end 12Gbps connectivity. This helps reduce resource load on the system, and enables easier navigation for the user.

If your data management has standardized on using Microsoft® Windows Server® 2012 R2, you can take advantage of the many features offered with Storage Spaces, including automatic storage tiering and disk resiliency. When combined with Dell’s storage optimized PowerEdge servers and the new MD Series of expansion enclosures, you have an affordable direct-attached storage option in Microsoft environments.

Global services and support
Reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you. You can count on Dell for end-to-end solutions to maximize your performance and uptime. A proven leader in Servers, Storage and Networking, Dell Enterprise Solutions and Services deliver innovation at any scale. And if you’re looking to preserve cash or increase operational efficiency, Dell Financial Services has a wide range of options to make technology acquisition easy and affordable. Contact your Dell Sales Representative for more information.

OEM-ready version available
From bezel to BIOS to packaging, your storage arrays can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM.


Compatibility:

The Dell MD1400 accepts up to twelve (12) hot swappable 3.5" and 2.5" SFF SAS hard drives and solid state drives.

Dell Storage MD1400 Technical Specifications

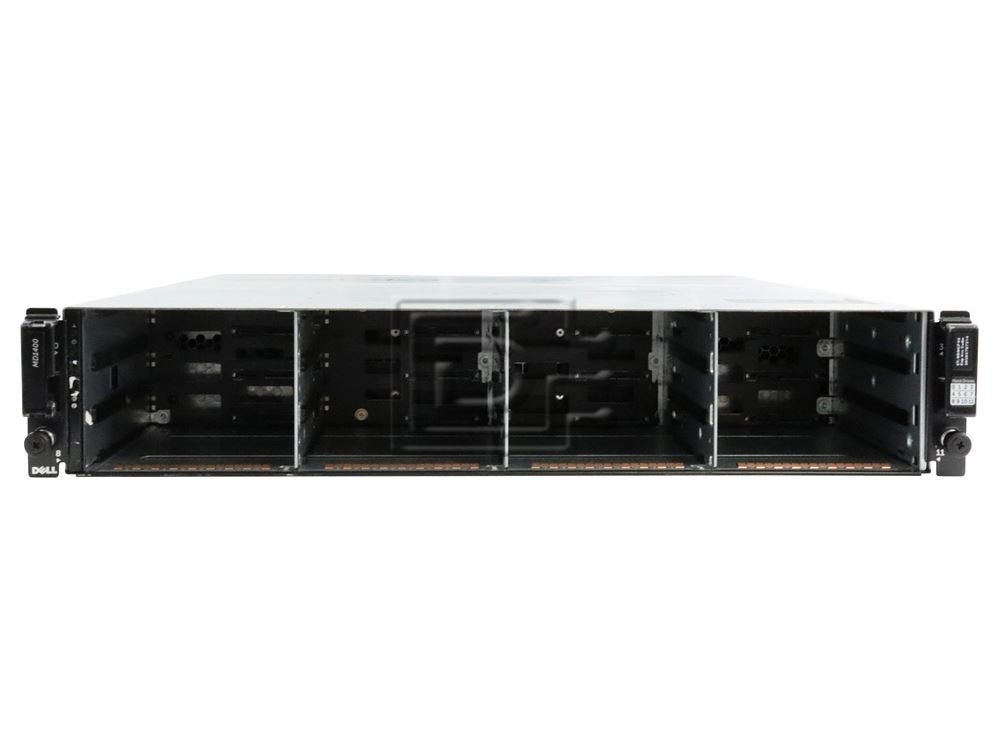

DrivesUp to 12 hot-pluggable 3.5” or 2.5” drives (2.5” available with adapter)
Drive performance and capacities3.5” NL-SAS 6Gb/12Gb HDD (7.2K): 1TB, 2TB, 4TB
3.5” NL-SAS 12Gb HDD (7.2K): 6TB, 8TB, 10TB
2.5” SAS 12Gb HDD (7.2K): 500GB
2.5” SAS 12Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB
2.5” NL-SAS 12Gb HDD (7.2K): 2TB
2.5” SAS 12Gb SED (15K): 600GB
2.5” SAS 12Gb HDD (15K): 300GB, 600GB
2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI);
200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
Maximum capacity per enclosureUp to 120TB when using 12 x 10TB NL-SAS 3.5” HDDs
Expansion capabilitiesPERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
Host connectivity
Unified modeUnified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 (4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling)
Enclosure management modules (EMM) and RAID levels
EMM2 EMM provide redundant enclosure management capability
RAID levels0, 1, 5, 6, 10, 50, 60

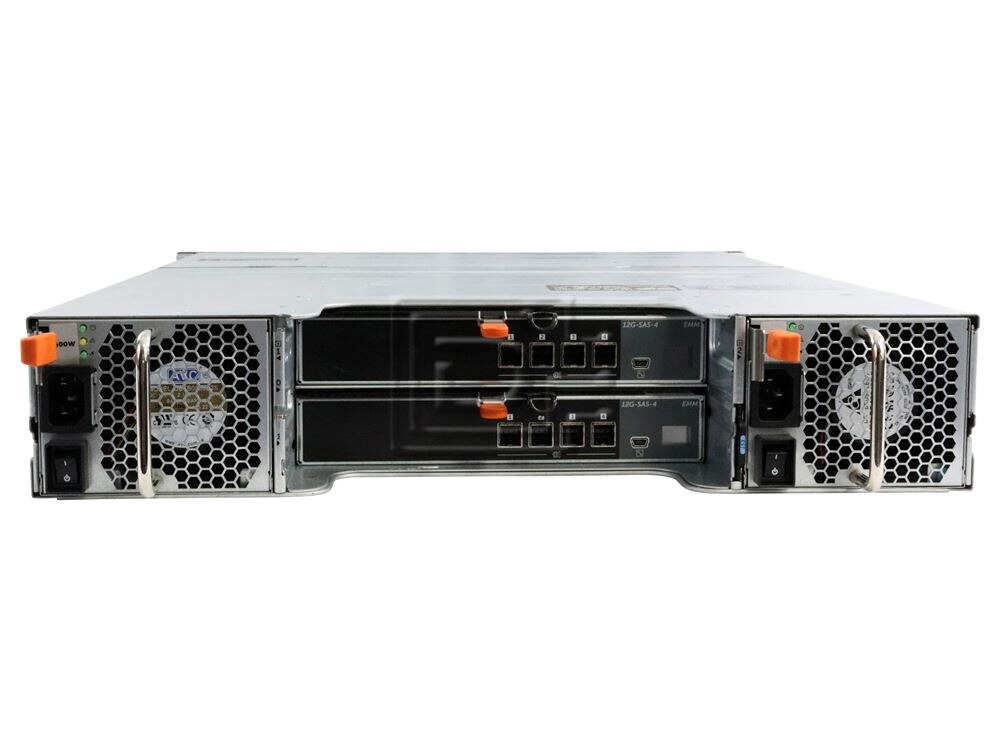

Back-panel connectors per EMM
Connectivity4 mini-SAS HD connector for connection to the host or expansion
Service managementUSB mini-B connector (for factory use only)
Power supplies per PSU
Wattage – AC and DC power AC – 600W; DC – 700W
Host heat dissipation AC – 2047BTU/hr; DC – 2388BTU/hr
Input voltage range100-240V AC, auto-sensing; 48V DC
Frequency range 50/60Hz
Amperage8.6A at 100V, 4.3A at 240V
Available hard drive power (per slot)
Supported continuous consumption Up to 1.2A at +5V
Up to 0.5A at +12V
Physical
Rack supportDell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Height x width x depth8.7 cm (3.39”) x 48.2 cm (18.8”) x 54.1 cm (29.1”)
Weight28.59 kg (63.03 lb) (maximum configuration)
9.0 kg (19.8 lb) (empty)
Environmental
TemperatureOperating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
Relative humidityOperating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)
AltitudeOperating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)

Click here to view the manufacturer's item description/brochure

Weight: 25 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
