Dell Part #/MPN: MHJKF
DiscTech Item #: DEL-MHJKF-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:8Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet 10Gigabit - 10Gbps
Bays/Ports/Slots: 24
U Height: 1U

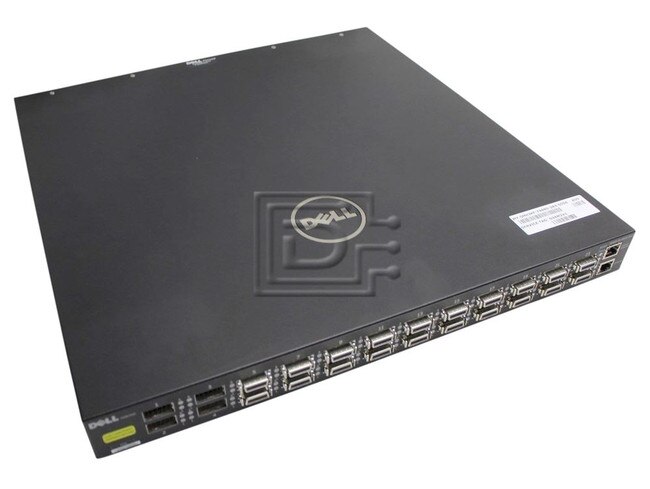

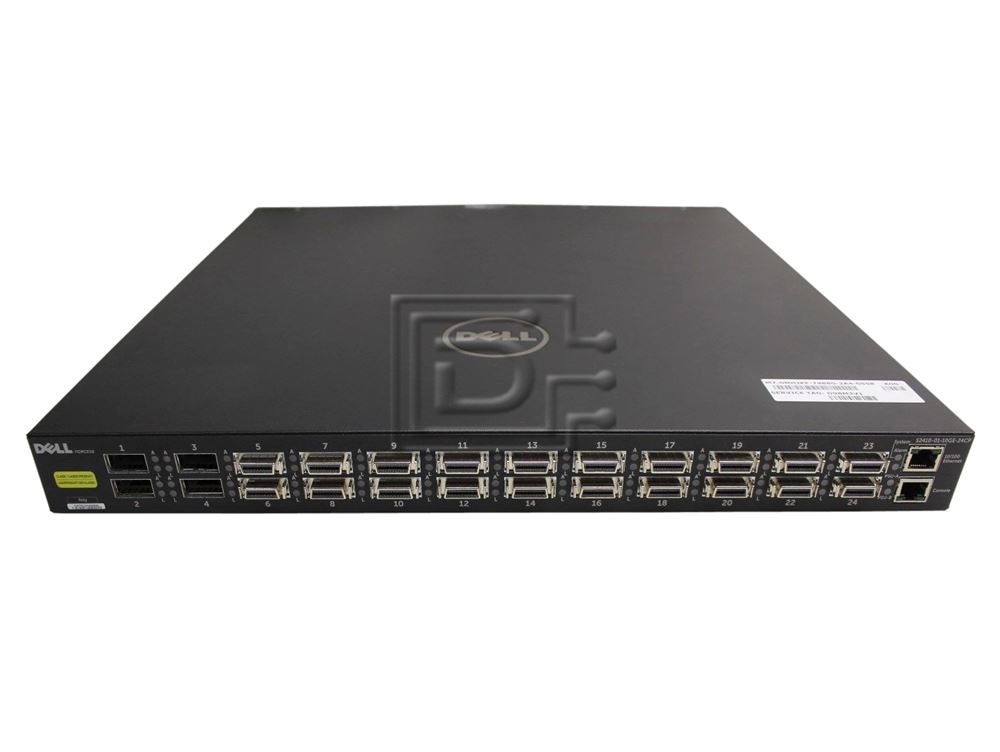

Dell Force10 S-series MHJKF / S2410-01-10GE-24CP 24-Port 10GbE Ethernet Switch - Refurbished
Dell Force10 S-seriesMHJKF 24-port 10 GbE switch with 20 10GBase-CX4, four 10 GbE XFP ports with layer 2 software
Dell Force10 S-Series
S2410 Data Center 10 GbE Switch
High 10 Gigabit Ethernet density for the data center edge; end-to-end 10 Gigabit Ethernet data center solutions; standards-based Layer 2 features.
High Performance, Low Latency 10 GbE Data Center Switches
The Dell Force10 S-Series S2410 combines the industry’s lowest Ethernet switching latency with industry leading 10 GbE density to provide IT managers with more flexible deployment options.
- 24-port 10 GbE fixed configuration 1-RU data center switch
- XFP or CX4 interfaces
- Ultra low 10 GbE switching latency
Key applications
Coupled with the Dell Force10 E-Series, which delivers unmatched resiliency and performance, the S2410 enables IT managers to deploy a reliable end-to-end 10 GbE data center solution, spanning from core aggregation to the server or storage edge.
- Ultra low latency interconnect switch for high performance cluster computing
- Low cost 10 GbE interconnect to network attached storage systems
- Low cost aggregation of 10 GbE uplinks from S25N or S50N switches in server racks
- Connects directly to 10 GbE servers
- Foundation for a virtualized applications model
Key features
Resilient and scalable high density, low latency 10 GbE switch for high performance Ethernet environments.
SAFETY TIPS FOR CANOEISTS
- 24 line rate 10 GbE ports in a 1-RU form factor
- S2410CP: 20 CX4 ports plus four 10 GbE pluggable XFP interfaces
- S2410P: 24 XFP interfaces
- Switching latency as low as 300 ns under full load
- 64 byte to 10,240 byte frames
- Switching fabric capacity of 480 Gbps and forwarding capacity of 360 Mpps
- Supports jumbo frames of up to 10,240 bytes supporting high-end server connectivity and network attached file servers
- 12 link aggregation groups with up to 12 members per group, using advanced hashing for even traffic distribution
- Built-in power redundancy
- CX4 interfaces support up to 1 W of power per port for active cables or electrical to optical extenders
S-Series S2410 data center switch | |
---|---|
Model Numbers | MHJKF |
Alt Model Numbers | S2410-01-10GE-24CP |
PHYSICAL | |
Size | 1 RU, 1.73 h x 17 w x 16.73” d (4.4 h x 43.2 w x 42.5 cm d) |
Weight | 14.3 lbs (6.5 kg) |
Power Supply | 100–240 VAC 50/60 Hz |
Maximum power consumption: | 125W |
Maximum thermal output | 426 BTU/hNo |
Maximum current draw | 1.15 A at 100/120 VAC, 0.575 A at 200/240 VAC |
Maximum Operating Specifications | |
Temperature | 32° to 104°F (0° to 40°C) |
Operating humidity | 10 to 90 percent (RH), non-condensing |
Maximum Non-operating Specifications | |
Storage Temperature | –4° to 158°F (–20 to 70°C) |
Storage humidity | 10 to 95 percent (RH), non-condensing |
Reliability | MTBF 273,332 hours |
PERFORMANCE | |
Layer 2 MAC addresses | 16K |
Switching fabric capacity | 480 Gbps (360 Mpps) |
Link aggregation | 12 links per group, 12 groups per switch |
Queues per port | 4 queues |
VLANs | 1024 VLANs with 4096 tag value support |
Line-rate Layer 2 switching | all protocols, including IPv4 and IPv6 |
Switching latency | 300 ns (CX4 ports), 700 ns (XFP ports) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0MHJKF S2410-01-10GE-24CP
Weight: 15 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
