Seagate Part #/MPN: ST4000NM0265
DiscTech Item #: SGT-ST4000NM0265-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 4TB
Speed: 7.2K RPM
Interface Types: SATA
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 226
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6Gbps
On-Board Cache: 128MB
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

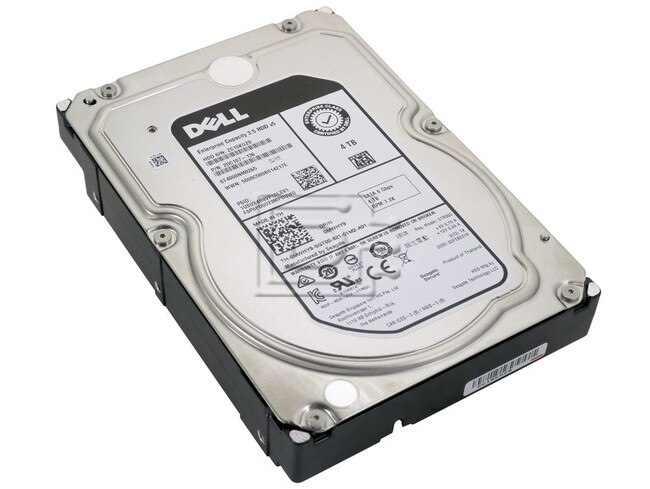

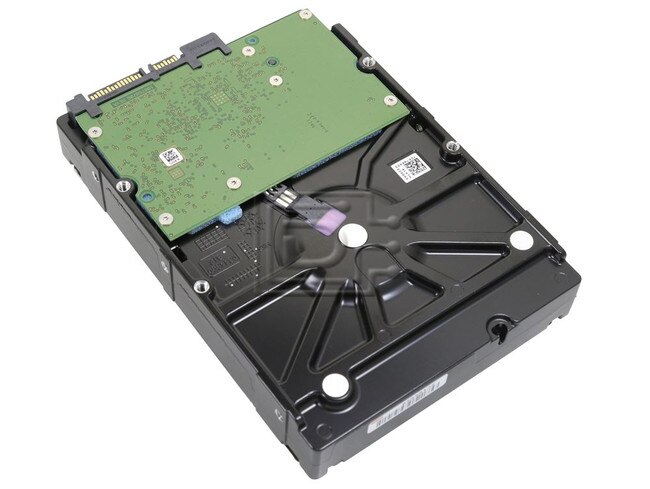

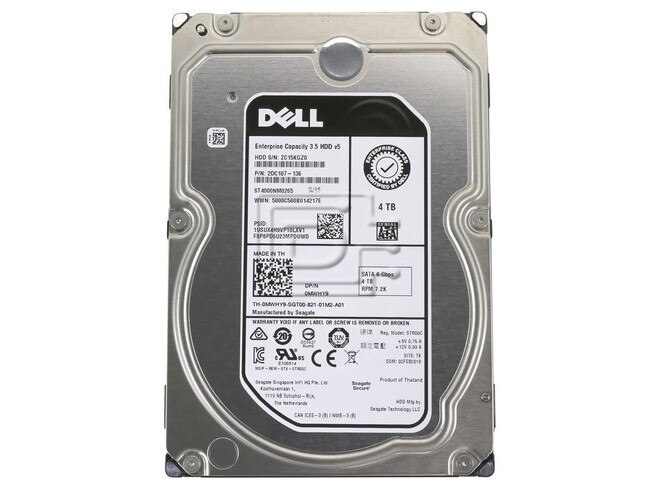

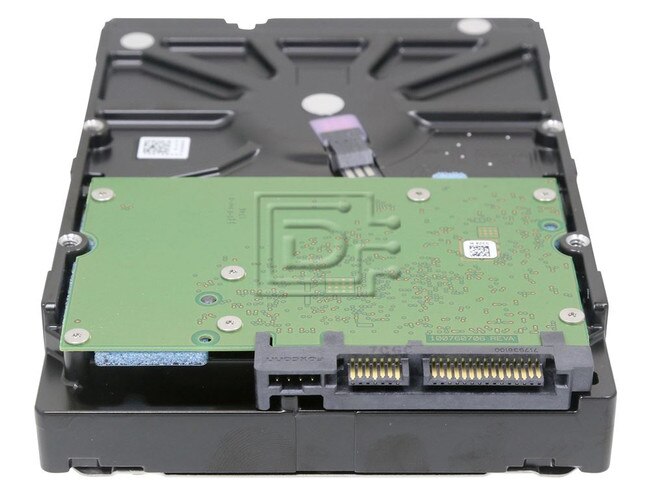

Dell MWHY9 / Seagate Exos 7E8 ST4000NM0265 4TB 3.5in LFF 6Gbps 7.2K RPM 512n SATA Hard Drive - New Pull OEM
Dell MWHY9 / Seagate Exos 7E8 ST4000NM0265 4TB 3.5in LFF 6Gbps 7.2K RPM 512n SATA Hard Drive
ALT DP/N: 0MWHY9 MWHY9 2DC107-136
Trusted. Efficient. Versatile.
Exos 7E8
The Seagate® Exos™ 7E8 enterprise hard drive confidently stores up to 8TB of data without sacrificing performance. The secure, highcapacity, high-performance drives are optimized for demanding enterprise bulk data applications.
Enterprise Drive for Bulk Data Applications
Exos 7E8 hard drives support up to 8TB per drive, offering bulk data storage for data center infrastructures requiring a highly reliable enterprise hard drive. Exos 7E8 provides cost-effective, reliable access to unstructured data. Built on field-proven 9thgeneration conventional magnetic recording (CMR) technology, the Exos 7E8 drive helps to catalyze the datasphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security and low TCO for demanding 24×7 operations.
Robust Bulk Data Storage for a 24×7 World
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550TB per year—10× that of desktop hard drives. With state-of-the-art cache, on-thefly error-correction algorithms and rotational vibration design, the Exos 7E8 helps ensure consistent performance in replicated and RAID multi-drive systems.
High Performance for Mainstream Data Center Applications
Meet your storage workload requirements in the most efficient and cost-effective data center footprint on the market today. The Exos 7E8 delivers easy integration into bulk storage systems with 12Gb/s SAS and SATA 6Gb/s interface options. With userdefinable innovative technology advancements like PowerChoice™ and Seagate RAID Rebuild ® , you can tailor your nearline storage requirements for even greater improvements in lowering your TCO.
Enhanced Enterprise Reliability, Data Protection and Security
Advanced security features help protect data where it lives—on the drive. Exos 7E8 prevents unauthorized drive access and safeguards stored data with security features that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistent hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest and comply with corporate and federal data security mandates.
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- OLTP and HPC applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in SATA Drive.
| Exos 7E8 | |
|---|---|
| Seagate / Dell | ST4000NM0265 |
| Capacity | 4TB / 4000GB |
| Interface | SATA 6 Gbp/s |
| Sector Size | 512n |
| Special Features | |
| Protection Infromation | - |
| Humidity Sensor | Yes |
| SuperParity | - |
| Halogen Free | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technolgy | Yes |
| Cache | 128MB |
| Advance Writing Caching (internal NOR flash) | Yes |
| Reliability/Data Integrity | |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | --- |
| MTBF | 2,000,000hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| Bytes per Sector | 512 |
| Performance | |
| Spin Speed | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0,3.0,1.5 |
| Max Sustainable Transfer Rate | 226MB/s |
| Average Latency(ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Average(W) | 5.45W |
| Average Operating Power | 6.94W |
| Power Supply Requirements | +12 V and +5 V |
| Environmental/Temperature | |
| Temprature, Operating(°C) | 5°C - 60°C |
| Shock, Operating Power | 70/40Gs |
| Shock, Nonoperating, 1 ms/2ms (Gs) | 150/3000Gs |
| Physical | |
| Height(mm/in) | 26.1mm/1.028in |
| Width(mm/in, max) | 101.85mm/4.01in |
| Depth(mm/in, max) | 147.0mm/5.787in |
| Weight(g/lb) | 680g/1.50lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0MWHY9 MWHY9 2DC107-136
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
