Dell Mellanox MCX516A-CCAT ConnectX®-5 Network Interface Card, 100GbE Dual-Port QSFP28, PCIe3.0 x 16 9FTMY Low Profile

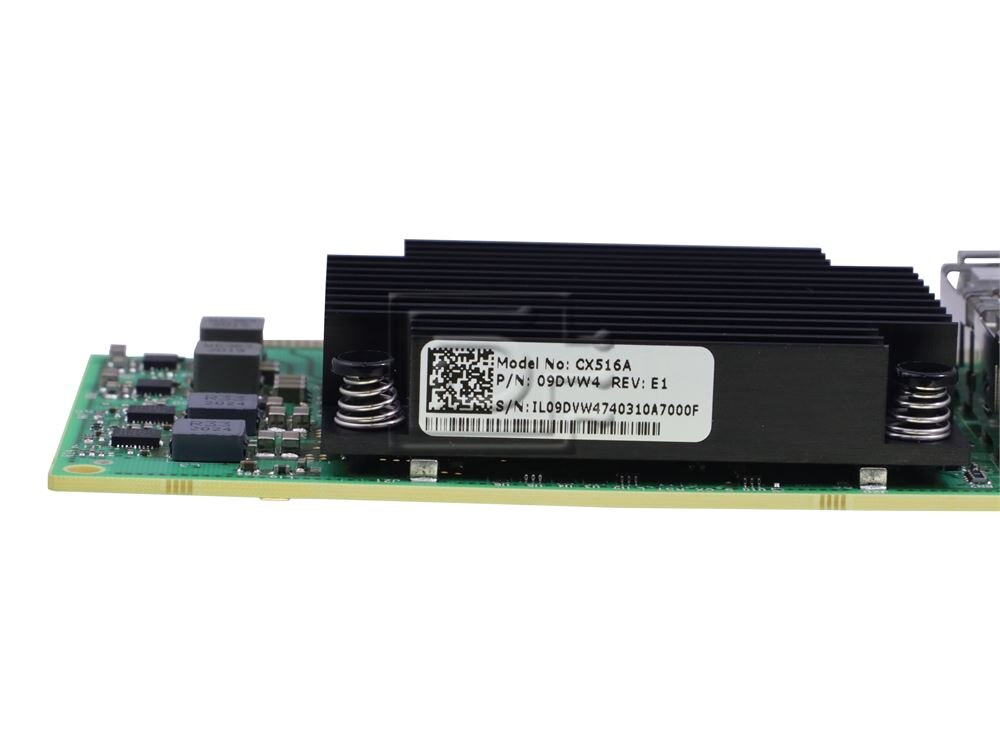

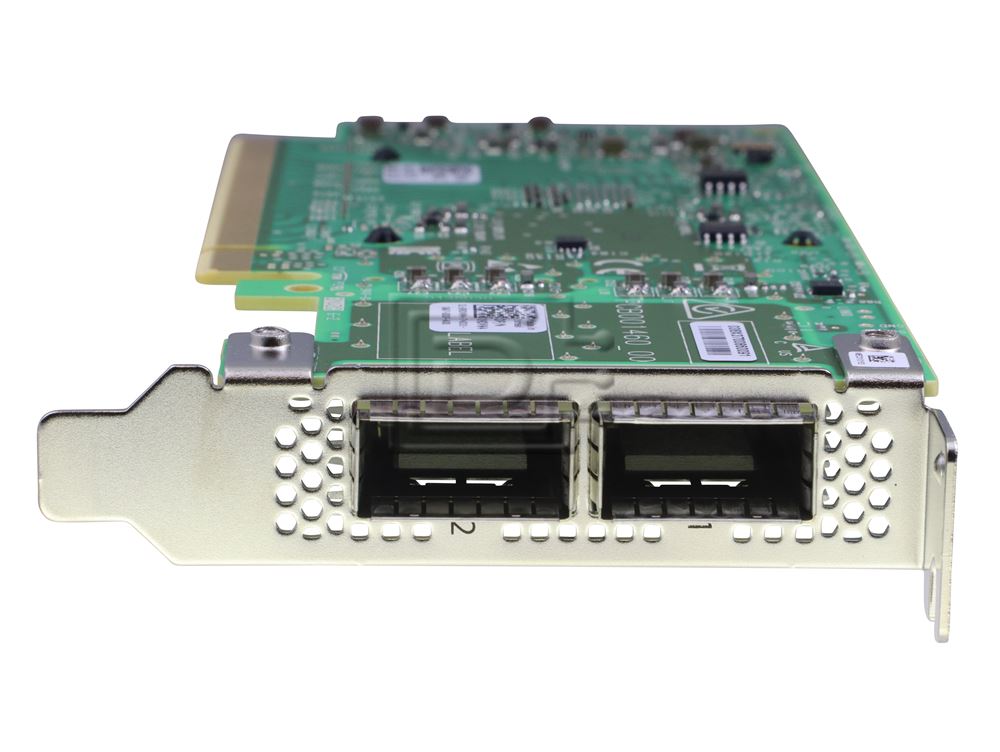

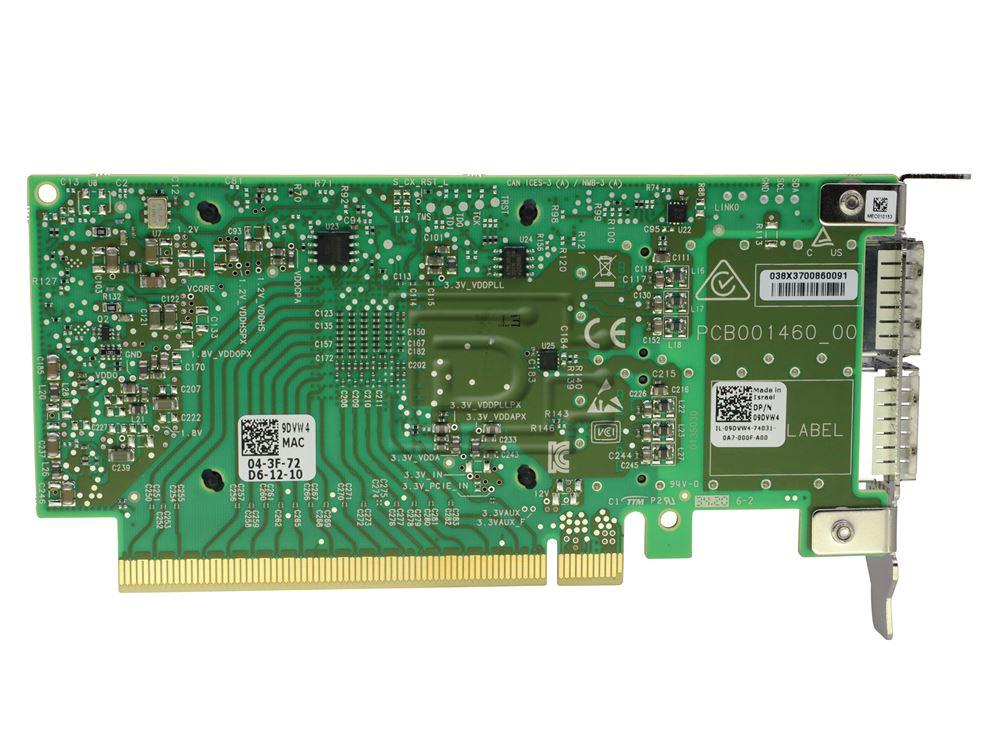

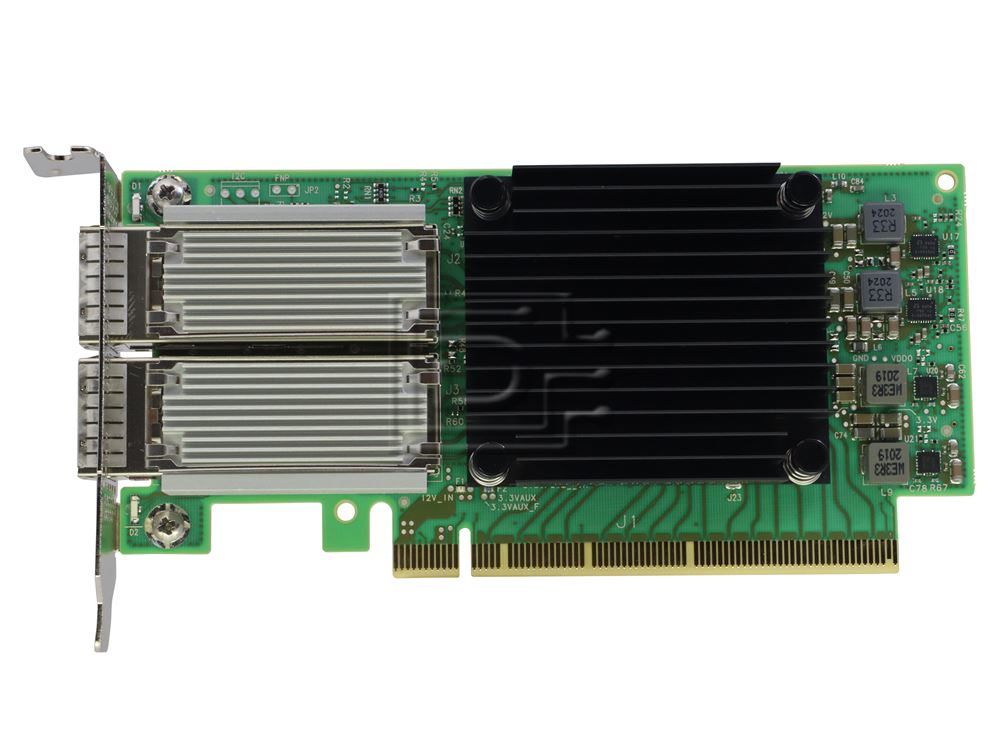

Mellanox MCX516A-CCAT 9DVW4 09DVW4 100Gbe NIC Network Interface Card Image 1 imageMellanox MCX516A-CCAT 9DVW4 09DVW4 100Gbe NIC Network Interface Card Image 2 imageMellanox MCX516A-CCAT 9DVW4 09DVW4 100Gbe NIC Network Interface Card Image 3 imageMellanox MCX516A-CCAT 9DVW4 09DVW4 100Gbe NIC Network Interface Card Image 4 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:4
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$599.99

Interface Types:Ethernet RJ45
Electrical Interface:Ethernet 100 Gigabit 100GbE 100Gbps

Description

Dell Mellanox MCX516A-CCAT ConnectX®-5 Network Interface Card, 100GbE Dual-Port QSFP28, PCIe3.0 x 16 9FTMY Low Profile- Brand New

Dell Mellanox MCX516A-CCAT ConnectX®-5 Network Interface Card, 100GbE Dual-Port QSFP28, PCIe3.0 x 16 9FTMY Low Profile- Brand New

ConnectX® -5 EN
Up to 100Gb/s Ethernet Adapter Cards

ConnectX-5 Ethernet adapter cards provide high performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps), and a recordsetting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads.

ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency. ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Mellanox Multi-Host® and Mellanox Socket Direct® technologies.

FEATURES

  • Tag matching and rendezvous offloads
  • Adaptive routing on reliable transport
  • Burst buffer offloads for background checkpointing
  • NVMe over Fabric offloads
  • Backend switch elimination by host chaining
  • Embedded PCIe switch
  • Enhanced vSwitch/vRouter offloads
  • Flexible pipeline
  • RoCE for overlay networks
  • PCIe Gen 4.0 support
  • RoHS compliant
  • ODCC compatible
  • Various form factors available

BENEFITS

  • Up to 100Gb/s connectivity per port
  • Industry-leading throughput, low latency, low CPU utilization and high message rate
  • Innovative rack design for storage and Machine Learning based on Host Chaining technology
  • Smart interconnect for x86, Power, Arm, and GPU-based compute & storage platforms
  • Advanced storage capabilities including NVMe over Fabric offloads
  • Intelligent network adapter supporting flexible pipeline programmability
  • Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
  • Enabler for efficient service chaining capabilities
  • Efficient I/O consolidation, lowering data center costs and complexity

Specifications

CategoryDetails
Protocol Support100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
Data Rate1/10/25/40/50/100 Gb/s Ethernet
PCI Express Gen3SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible)
NotePCIe 3.0 x16 bus can supply a maximum bandwidth of 128Gb/s only (=16 * 8GT/s, including overhead), and therefore cannot support 200Gb/s when both network ports of MCX516A-CCAT run at 100Gb/s.
Power and Airflow
Voltage12V
Power
Cable TypeTypical Power(a)Maximum Power
Passive Cable16.2W19.0W
1.5W Active Cable22.3W24.6W
Maximum power available through QSFP28 port5W
AirflowSee Airflow Specifications.
Environmental
Temperature
Operational0°C to 55°C
Non-operational-40°C to 70°C(b)
Humidity
Operational10% to 85% relative humidity
Non-operational10% to 90% relative humidity
Altitude (Operational)3050m
Regulatory
SafetyCB / cTUVus / CE
EMCCE / FCC / VCCI / ICES / RCM
RoHSRoHS-compliant
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 9DVW4 09DVW4

Weight: 2 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
